Seat Belt Buckle Switch: Diagrams



Seat Belt Connector End Views

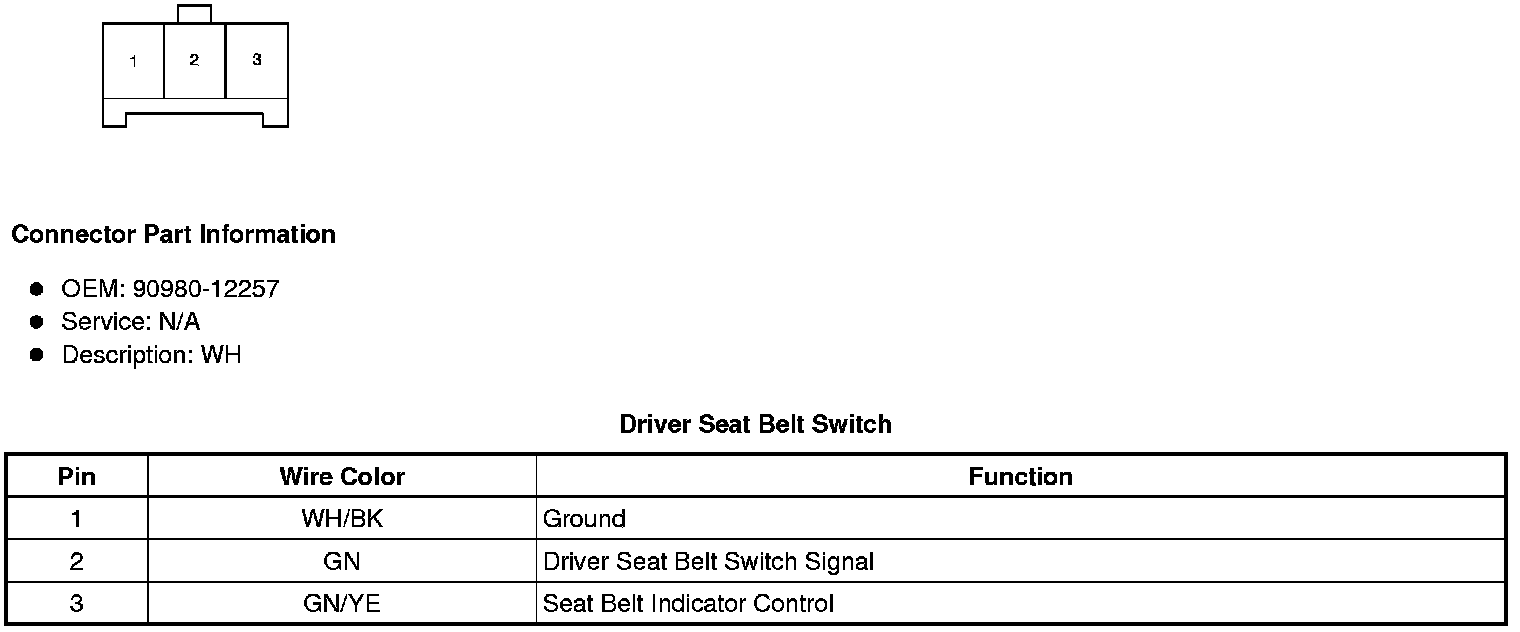

Driver Seat Belt Switch

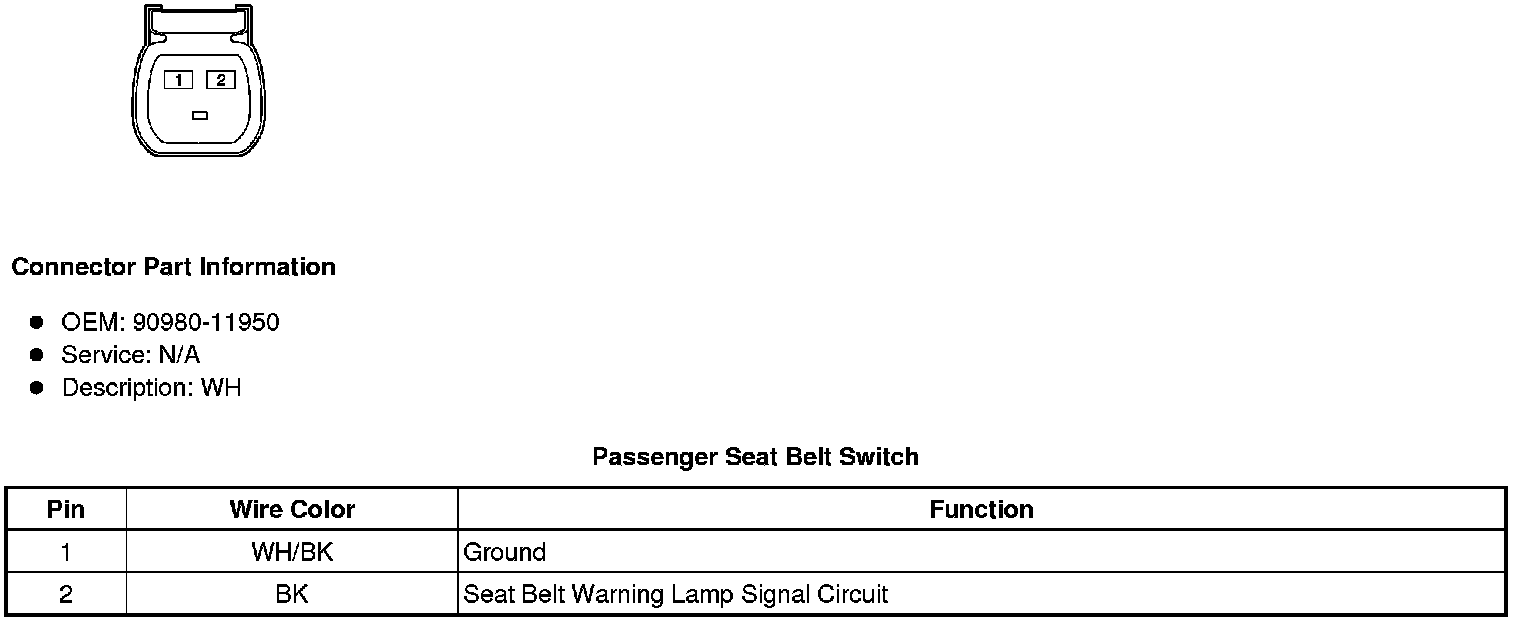

Passenger Seat Belt Switch







SIR Connector End Views


Driver Seat Belt Switch






Passenger Seat Belt Switch
