Home >> Pontiac >> 2008 >> Vibe L4-1.8L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Diagrams >> Electrical Diagrams >> SIR Schematics

SIR Schematics



SIR Schematics

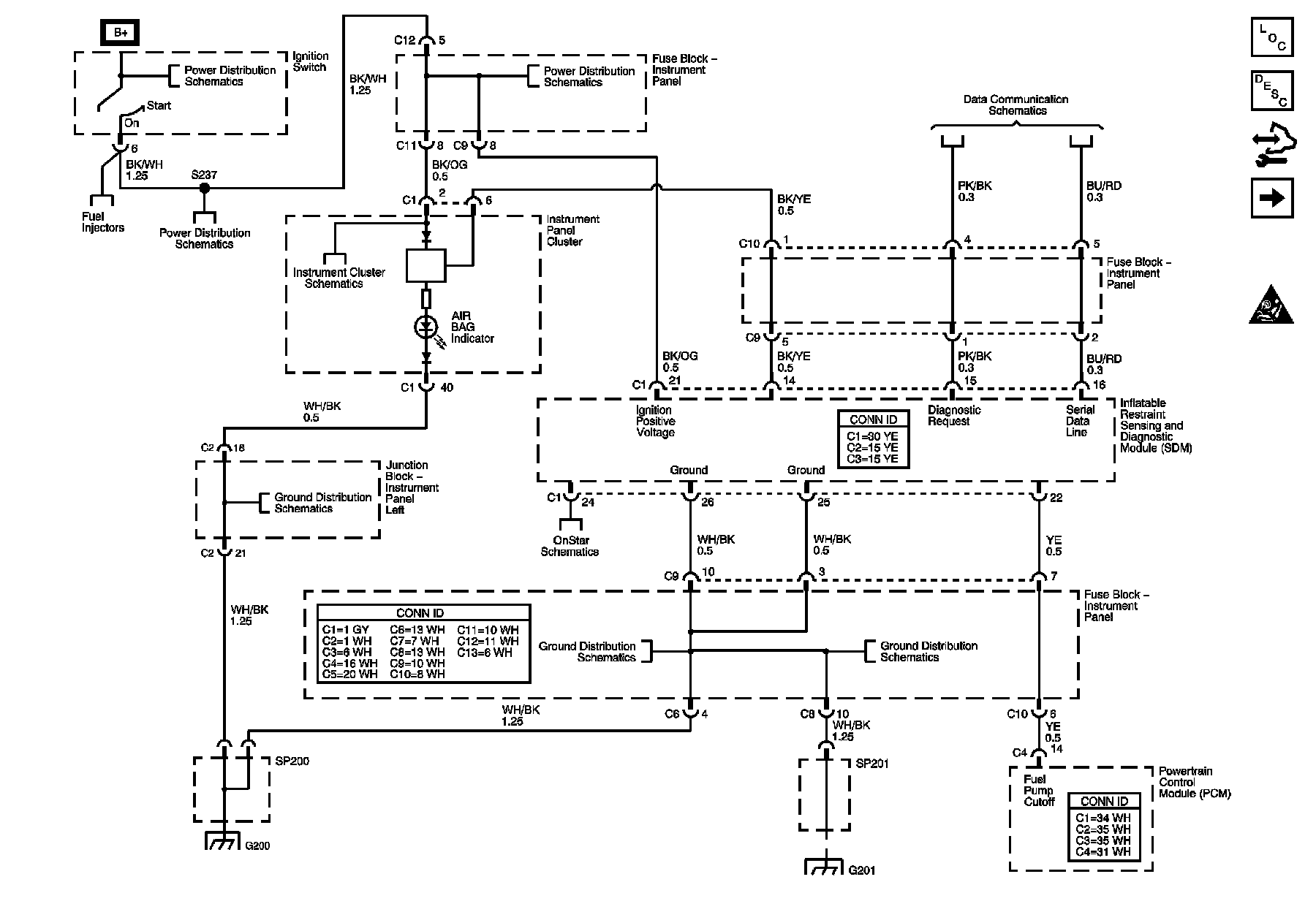

Inflatable Restraint Sensing and Diagnostic Module (SDM) Power and Ground

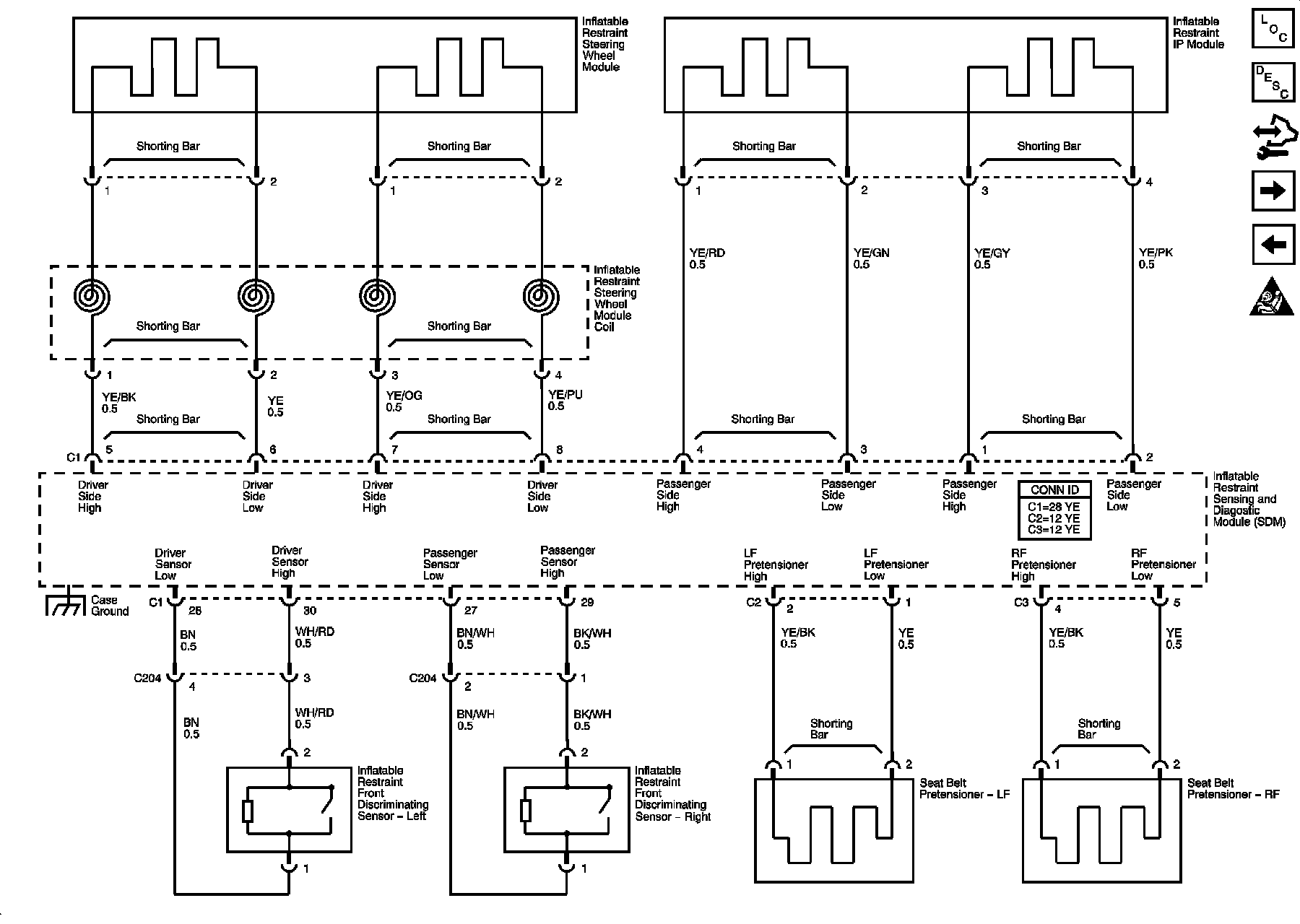

Inflatable Restraint Steering Wheel Module, I/P Module, Front Discriminating Sensors, Seat Belt Pretensioners

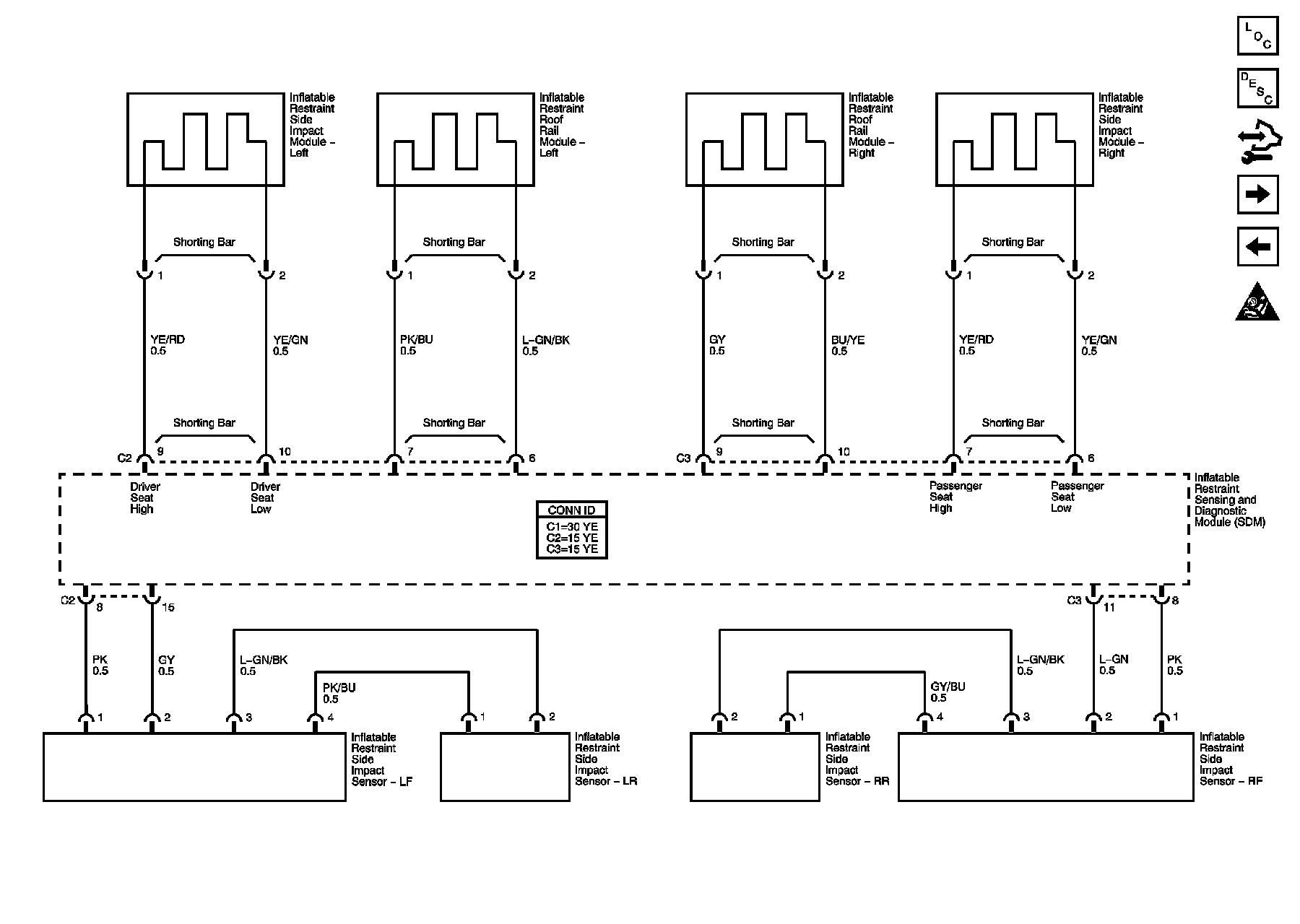

Inflatable Restraint Side Impact Modules, Roof Rail Modules, Side Impact Sensors

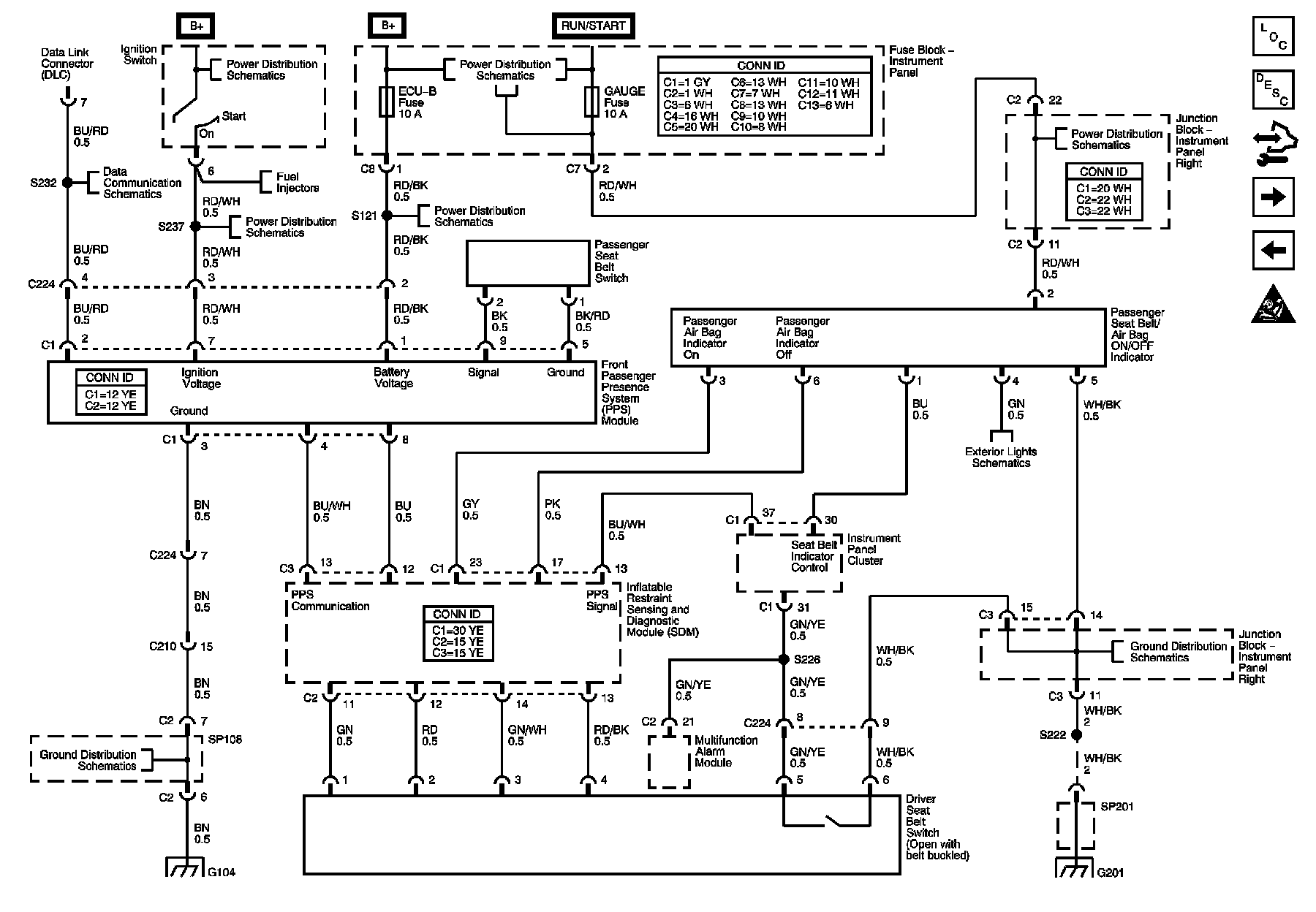

Front Passenger Presence System (PPS) Module, Seat Belt Switches, Passenger Seat Belt Warning Lamp

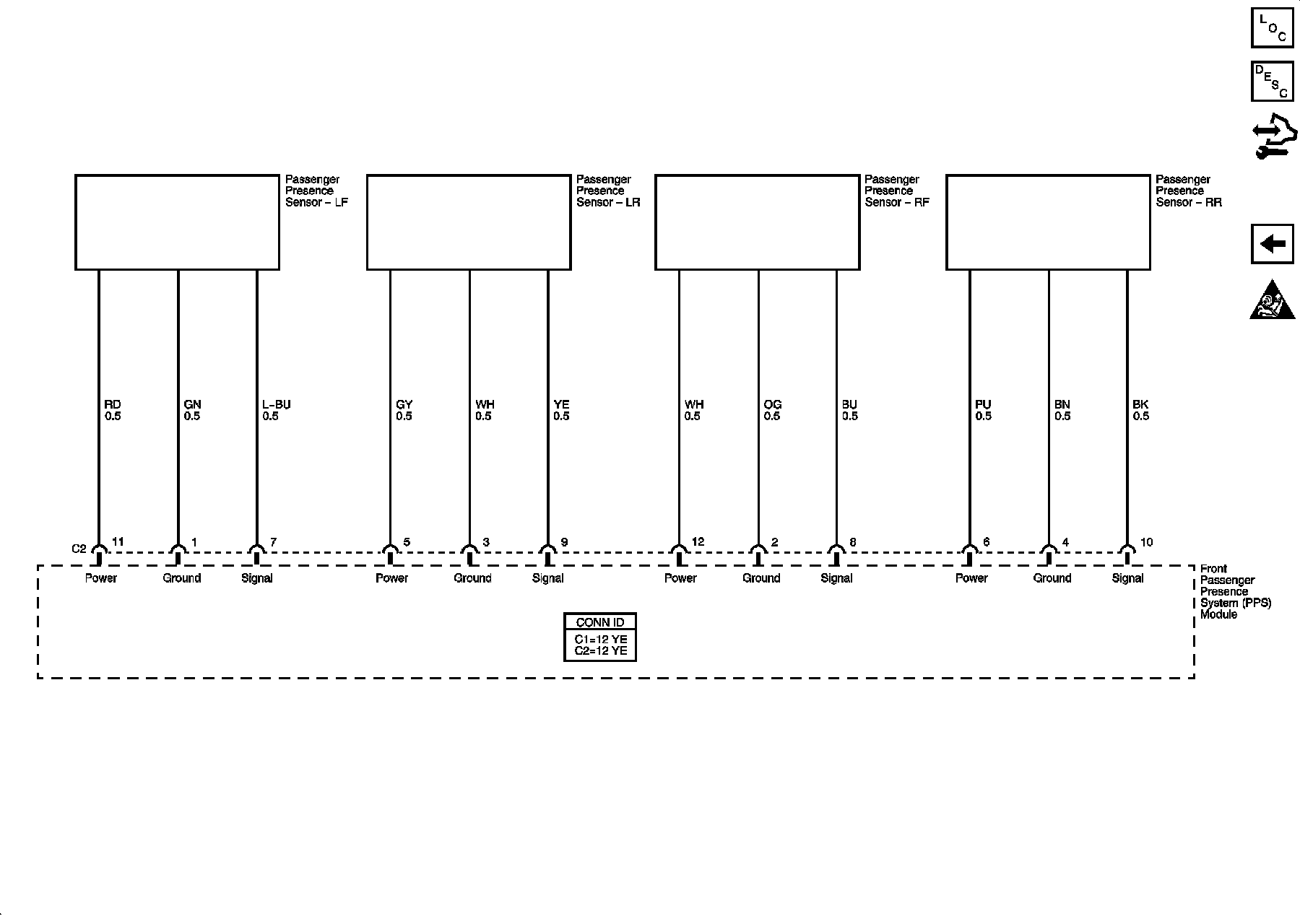

Passenger Presence System Sensors
