Air Bag: Diagrams



SIR Connector End Views

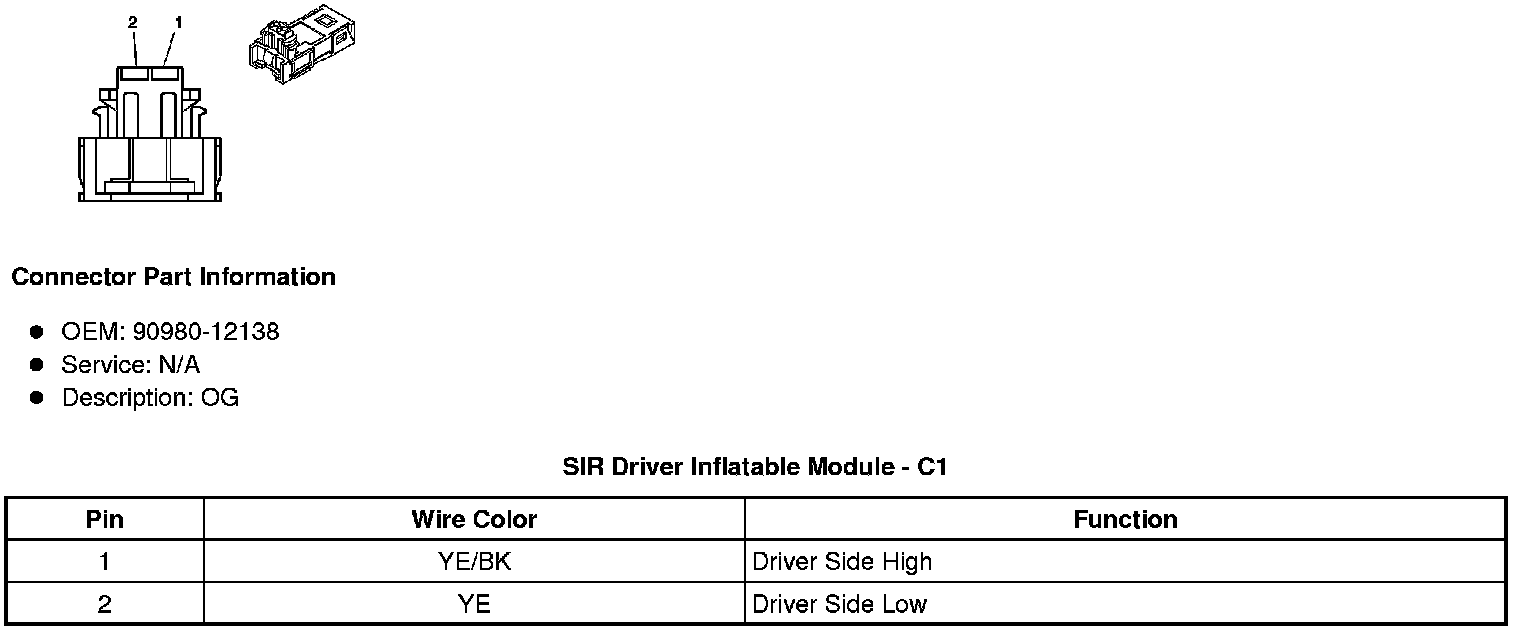

SIR Driver Inflatable Module - C1

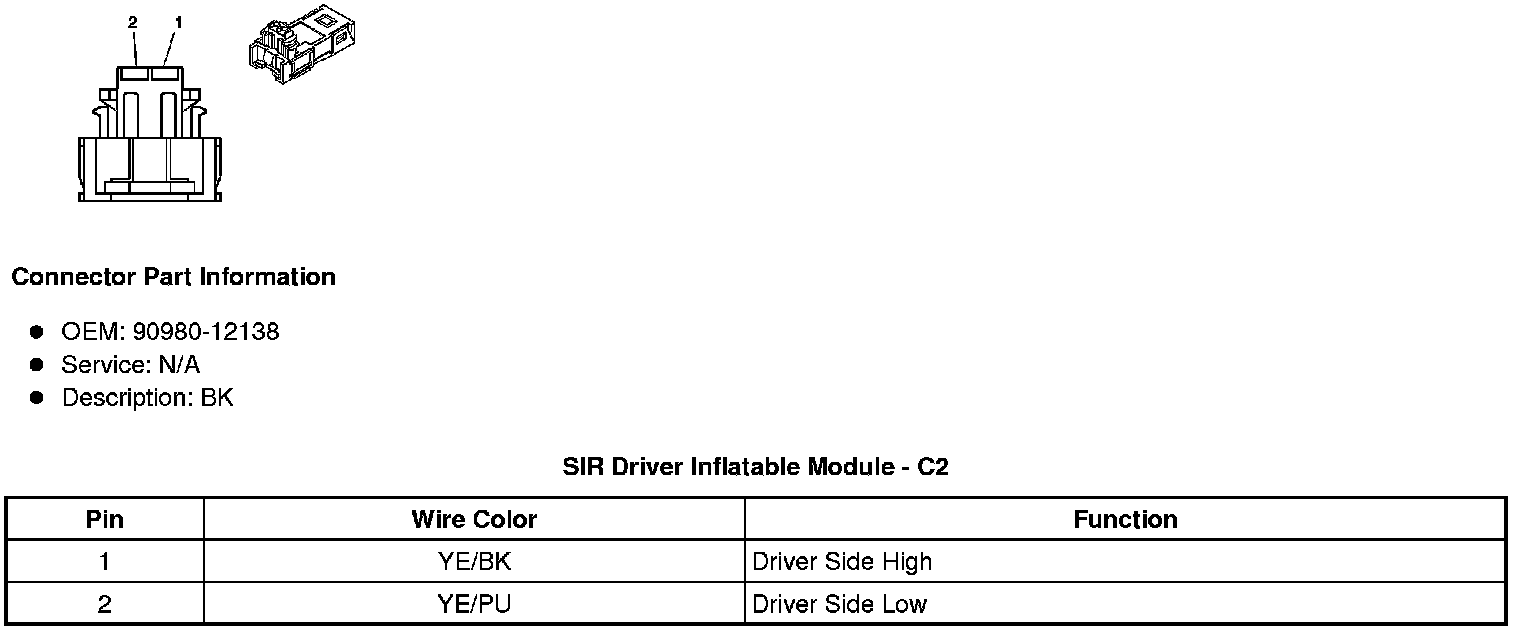

SIR Driver Inflatable Module - C2

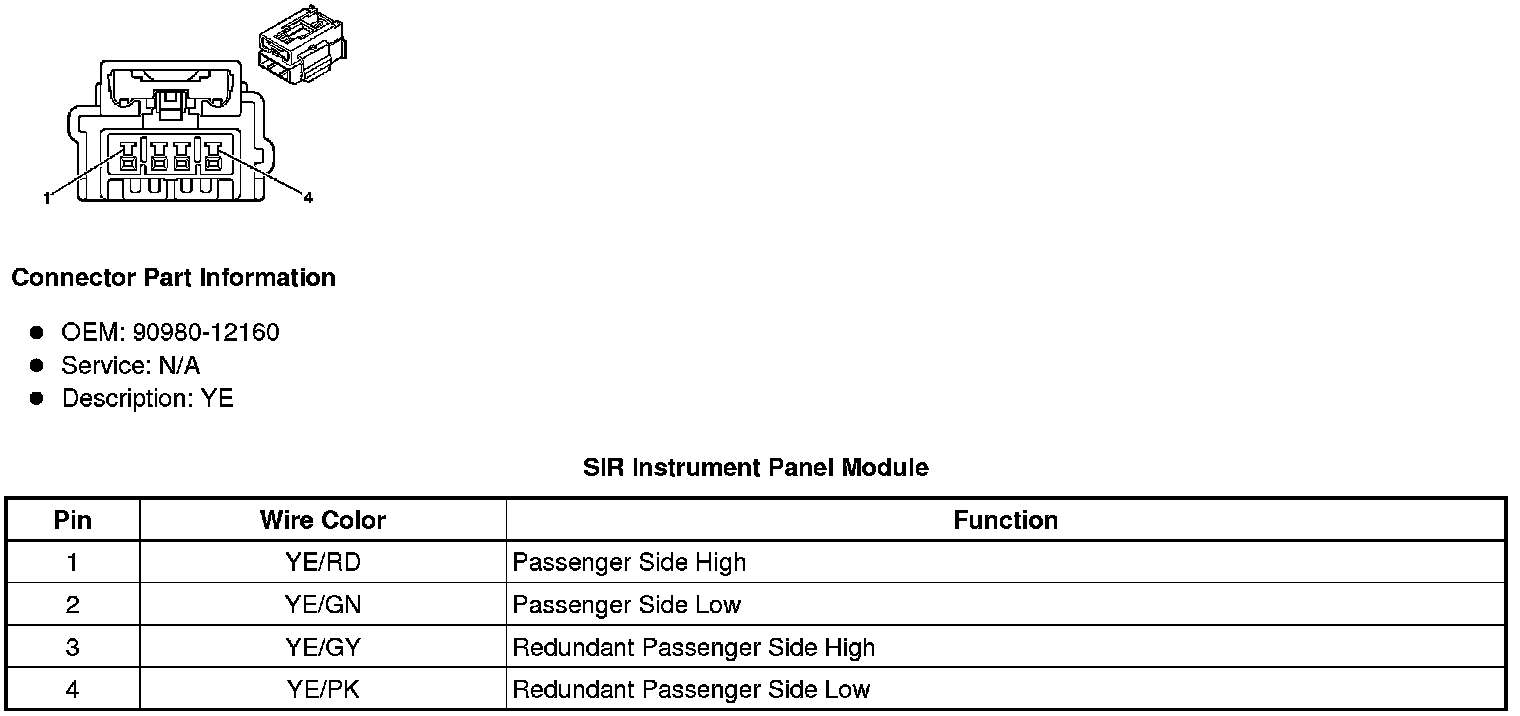

SIR Instrument Panel Module

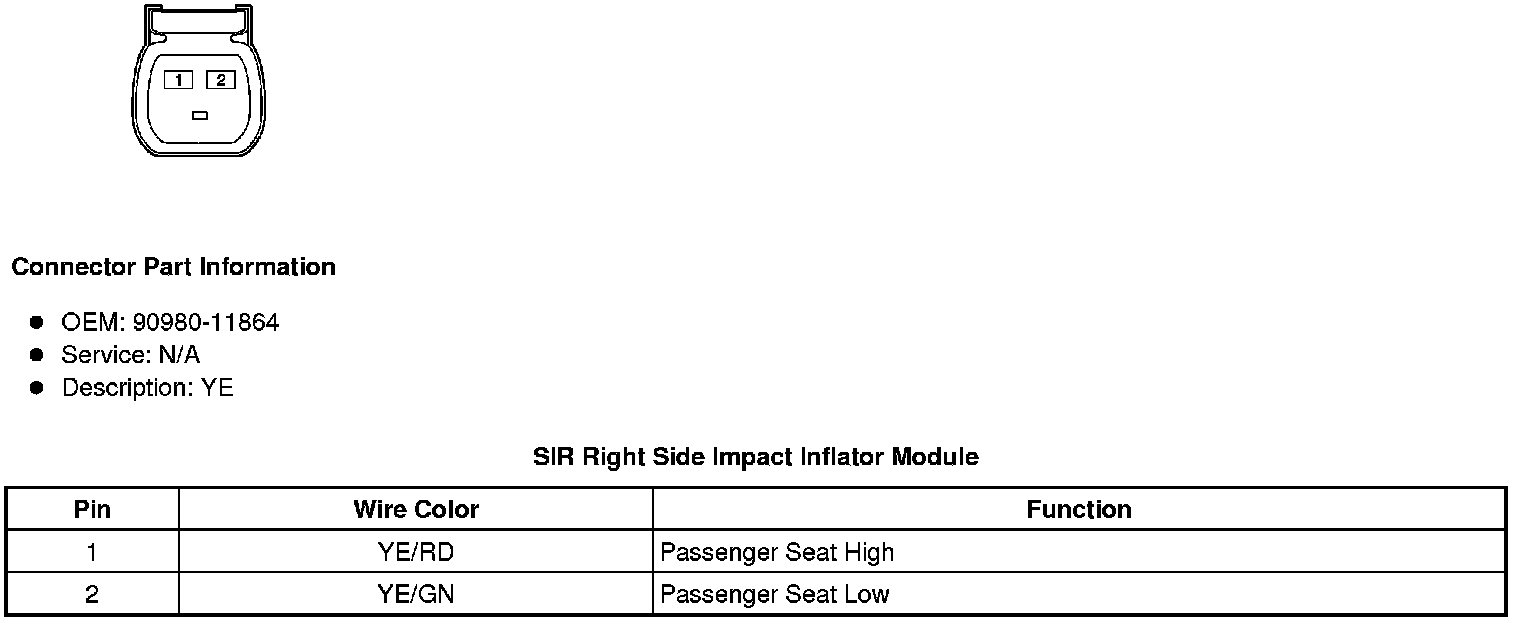

SIR Right Side Impact Inflator Module
