Pressure, Vacuum and Temperature Specifications

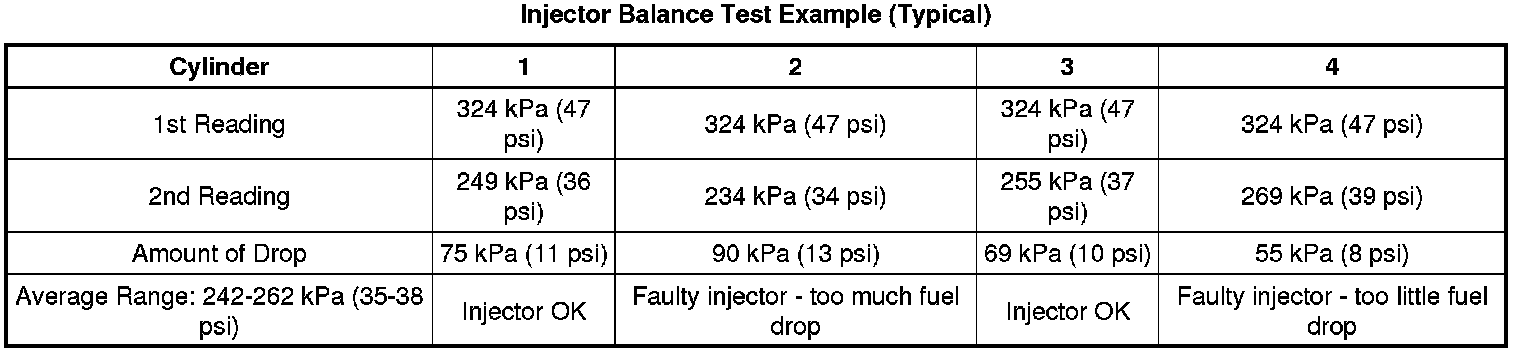

The fuel injectors are flowing properly if the pressure drop value for each fuel injector is within 10 kPa (1.5 psi) of the average pressure drop value. Calculate the pressure drop value for each fuel injector by subtracting the second pressure reading from the first pressure reading. Refer to the examples in the table.
