Tail Lamp: Diagrams



Lighting Systems Connector End Views

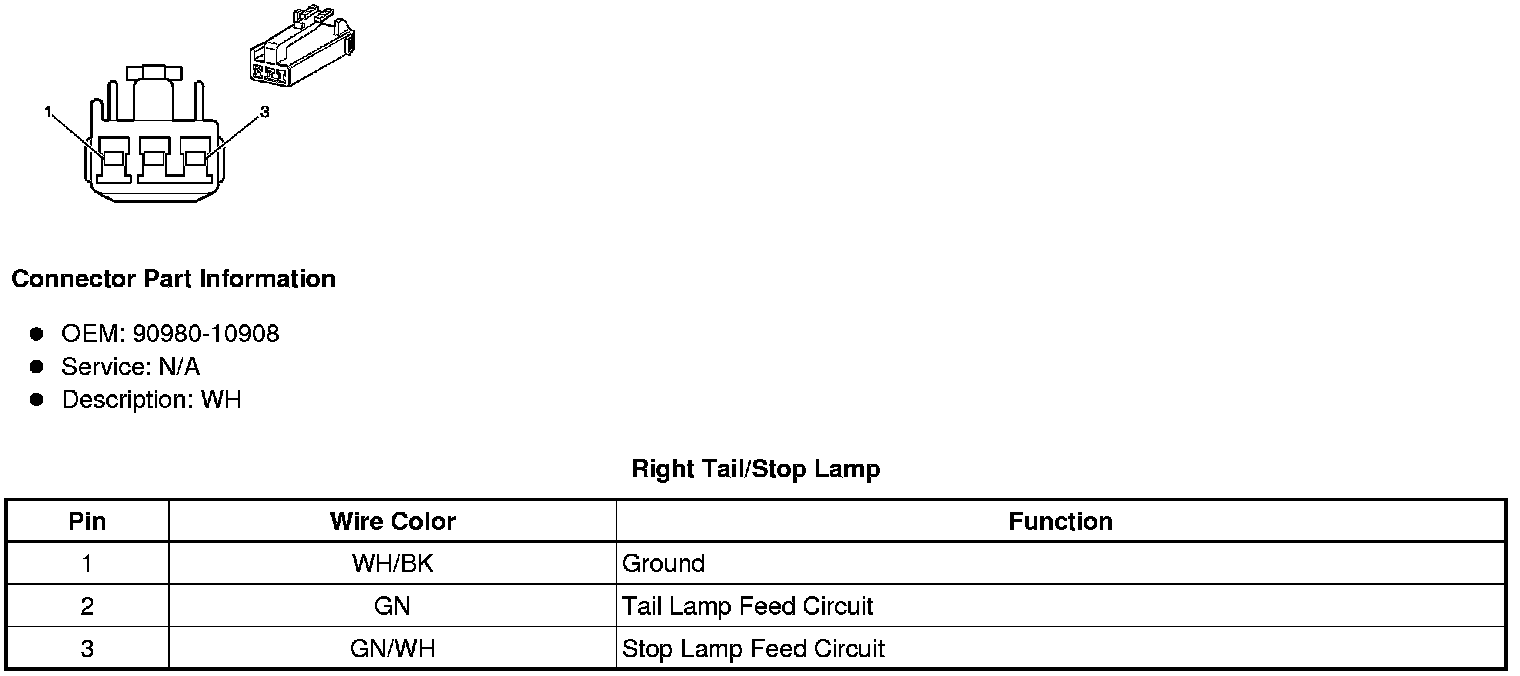

Right Tail/Stop Lamp

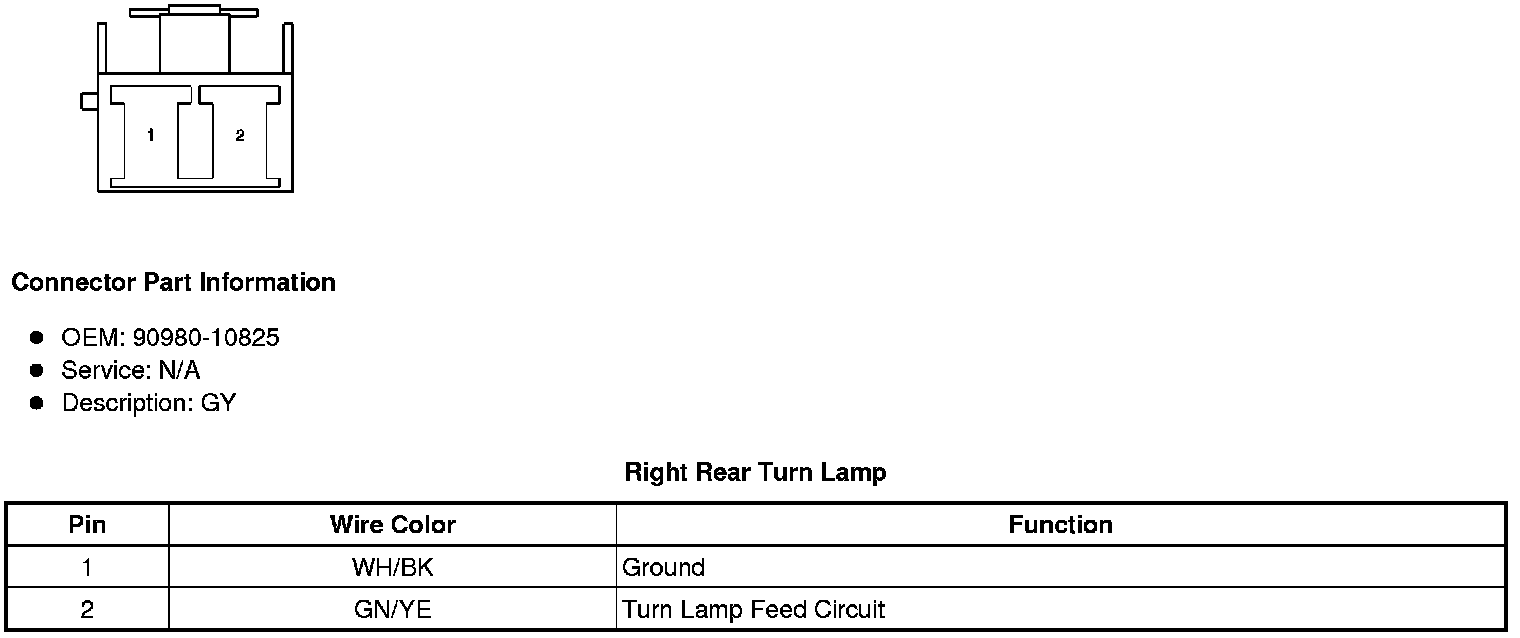

Right Rear Turn Lamp





Left Tail/Stop Lamp
