Connector Views
Connector Views
Horn

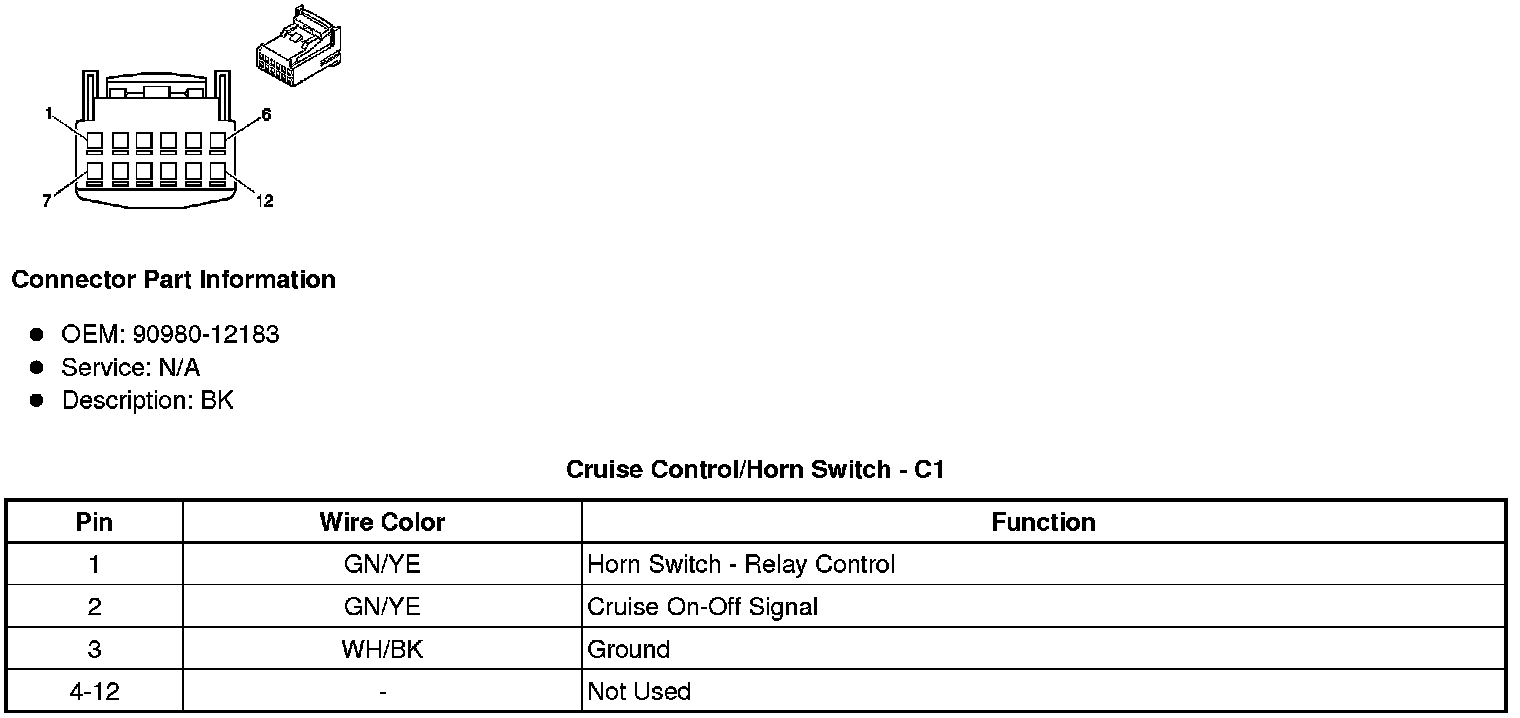

Connector End Views
Cruise Control/
Horn Switch
- C1
Cruise Control/
Horn Switch
- C2
