Daytime Running Lamp: Diagrams



Lighting Systems Connector End Views

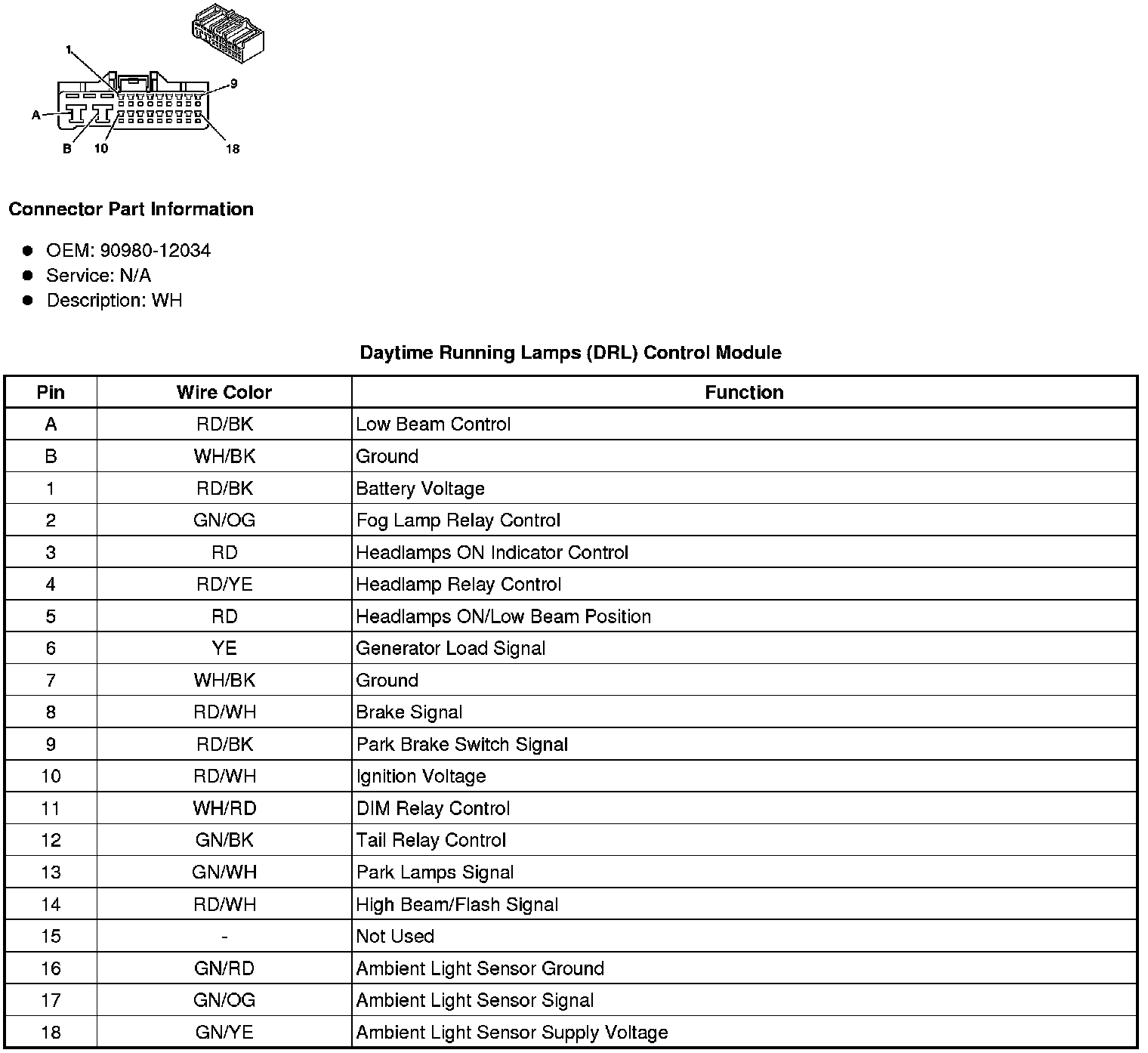

Daytime Running Lamps (DRL) Control Module
