Instrument Cluster / Carrier: Diagrams



Displays and Gages Connector End Views

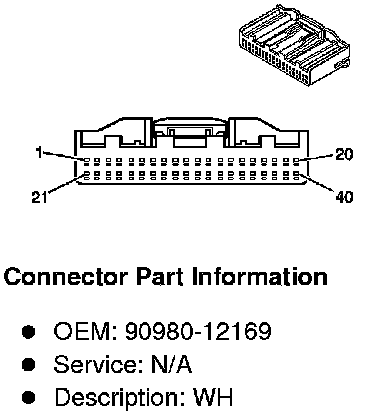

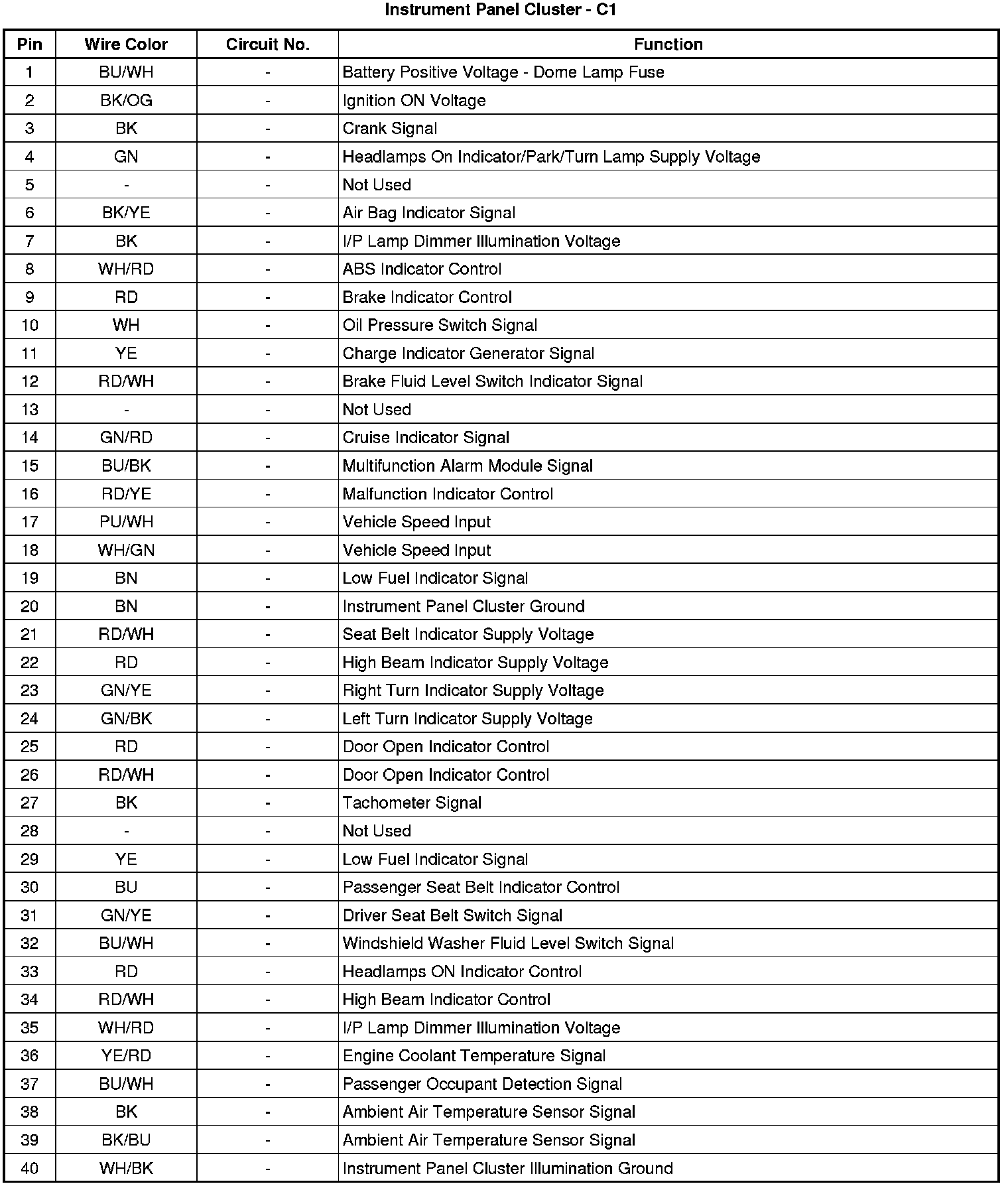

Instrument Panel Cluster - C1

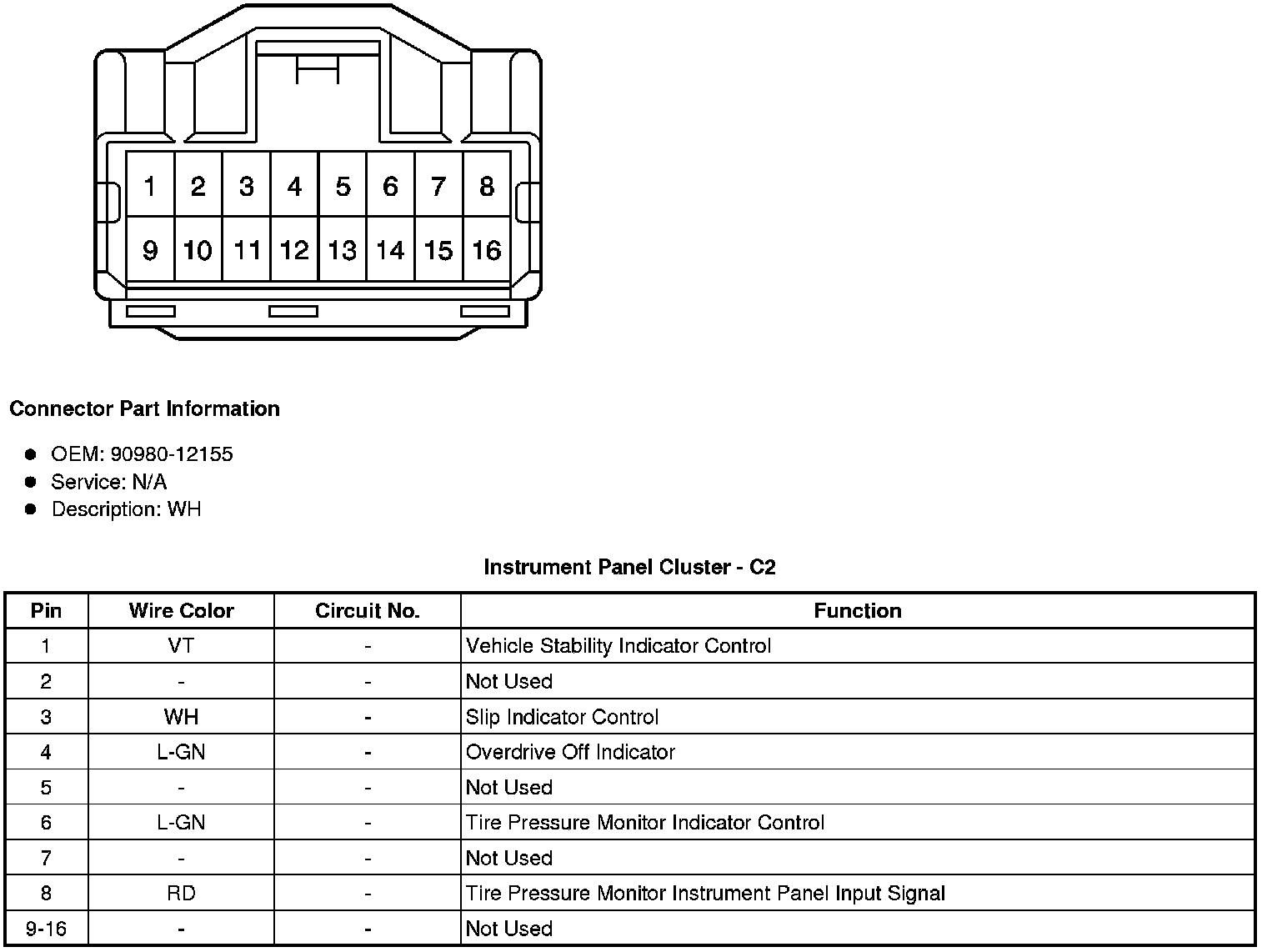

Instrument Panel Cluster - C2
