Instrument Cluster Trim Panel Replacement

Instrument Cluster Trim Panel Replacement

Removal Procedure

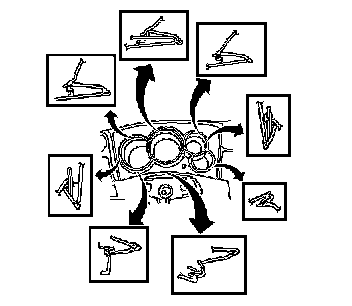

1. Using a flat bladed tool, disengage the 8 clips.
2. Gently remove the cluster trim plate from the instrument panel assembly.



Installation Procedure





1. Gently install the IP cluster trim plate by pressing into place until fully seated.
2. Return the steering column to the upright position.
