Instrument Panel Outer Air Outlet Deflector Replacement - Right Side

Instrument Panel Outer Air Outlet Deflector Replacement - Right Side

Removal Procedure

1. Remove the instrument panel (IP) upper assembly. Refer to Instrument Panel Upper Trim Pad Replacement (Service and Repair).

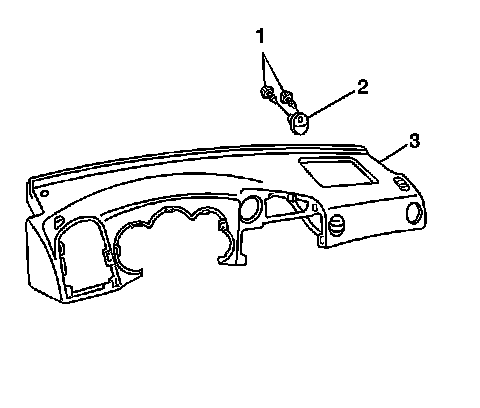

2. Remove the two screws (1) from the right air deflector assembly (2).
3. Remove the right air deflector (2) assembly from the IP panel (3).



Installation Procedure





1. Install the right air deflector assembly (2) to the IP panel (3). Secure the deflector assembly with the two screws (1).
2. Install the IP assembly. Refer to Instrument Panel Upper Trim Pad Replacement (Service and Repair).
