Instrument Panel Outer Air Outlet Deflector Replacement - Left Side

Instrument Panel Outer Air Outlet Deflector Replacement - Left Side

Removal Procedure

1. Remove the left instrument panel (IP) trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement - Left Side (Service and Repair).

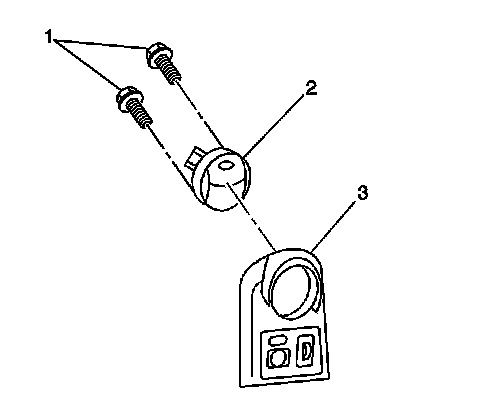

2. Remove the two screws (1) from the deflector assembly (2).
3. Remove the deflector assembly from the IP trim plate (3).



Installation Procedure





1. Install the deflector assembly (2) to the IP trim plate (3). Secure the deflector with the two screws (1).
2. Install the trim plate to the IP. Refer to Instrument Panel Accessory Trim Plate Replacement - Left Side (Service and Repair).
