Floor Air Outlet Duct Replacement - Left Side

Floor Air Outlet Duct Replacement - Left Side

Removal Procedure

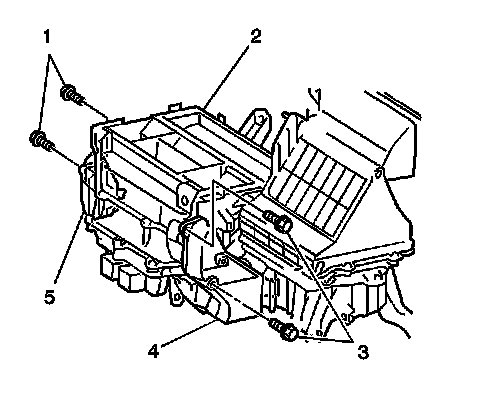

1. Remove the two screws (1) from the outlet duct (5).
2. Remove the outlet duct (5) from the HVAC module (2).



Installation Procedure





1. Install the outlet duct (5) to the HVAC module (2).
2. Secure the outlet duct with the two screws (1).
