7. Crankshaft Pulley Removal



Crankshaft Pulley Removal

Tools Required

J 8614-01 Pinion Flange Holder

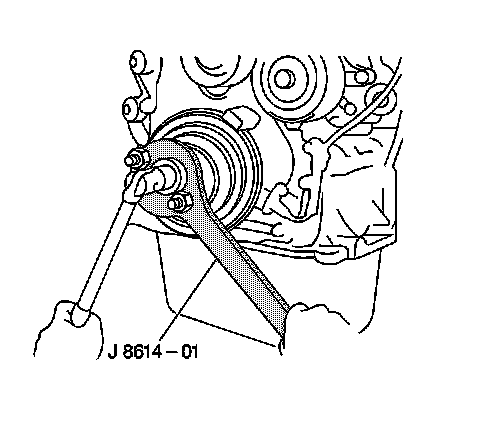

1. Remove the crankshaft pulley retaining bolt using J 8614-01 to prevent crankshaft rotation when loosening the bolt.
2. Remove the crankshaft pulley.
