64. Oil Level Indicator and Tube Installation

Oil Level Indicator and Tube Installation





1. Use new engine oil in order to coat the new guide tube seal.

Notice: Refer to Fastener Notice (Fastener Notice).

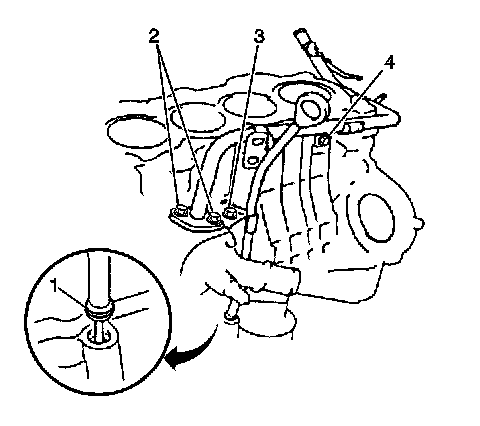

2. Install the new guide tube seal (1) to the guide tube. Secure the guide tube to the cylinder block using one bolt (3).

Tighten the bolt to 14 N.m (10 lb ft).

3. Install the oil level indicator to the guide tube.
