57. Crankshaft Front Oil Seal Installation

Crankshaft Front Oil Seal Installation





1. Lubricate the new crankshaft front oil seal with Chassis Grease GM P/N 1051344 (Canadian P/N 993037) or equivalent.

Important: Tap the oil seal in until its surface is flush with the crankshaft rear oil seal retainer edge.

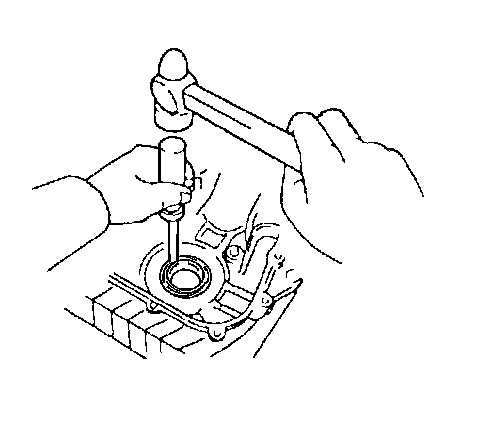

2. Using a hammer, lightly tap the crankshaft front oil seal into place.
