56. Water Pump Installation

Water Pump Installation





1. Lubricate and install a new O-ring between the water pump and the timing chain housing.
2. Install the water pump to the engine.

Notice: Refer to Fastener Notice (Fastener Notice).

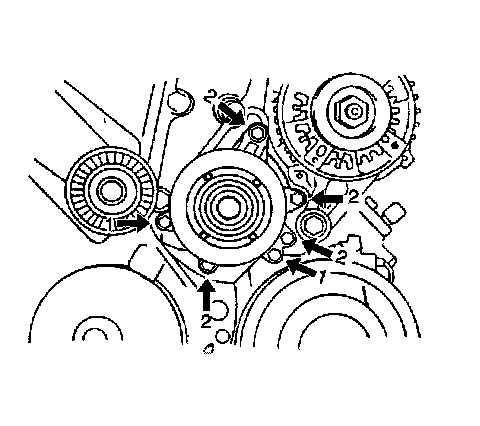

3. Use 3 bolts (1, 2) in order to secure the water pump.

Tighten the water pump bolts to 12 N.m (106 lb in).
