5. Exhaust Manifold Removal

Exhaust Manifold Removal





1. Remove the exhaust manifold brace to the manifold bolt.




2. Remove the 5 upper heat insulator bolts.
3. Remove the heat insulator.

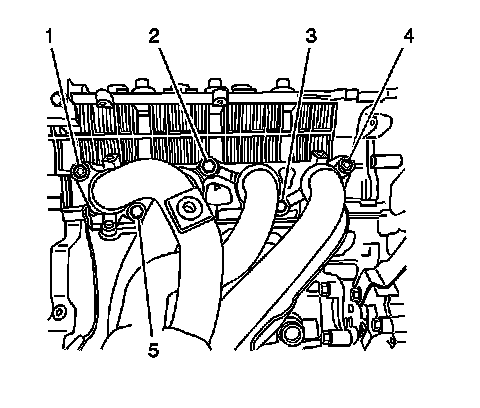

4. Remove the 3 exhaust manifold bolts (1-3) and 2 exhaust manifold nuts (4-5).
5. Remove the exhaust manifold and gasket.
