49. Oil Pump Installation

Oil Pump Installation






Important: Engage the spline teeth of the oil pump drive rotor with the large teeth of the crankshaft.

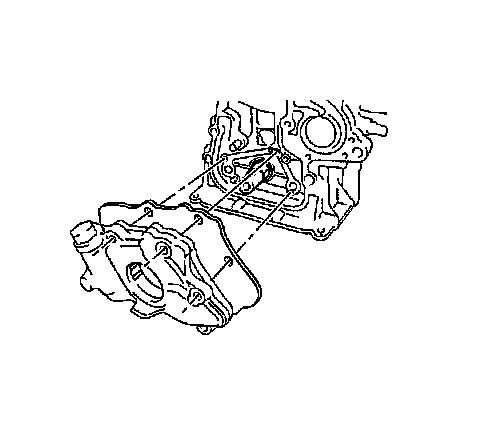

1. Install the oil pump. Use a new oil pump gasket.

Notice: Refer to Fastener Notice .

2. Use the 5 oil pump bolts in order to secure the oil pump.

Tighten the oil pump bolts to 9 N.m (80 lb in).
