21. Crankshaft Rear Oil Seal Removal



Crankshaft Rear Oil Seal Removal






Important: To protect the crankshaft from damage, wrap the tip of the screwdriver with tape.

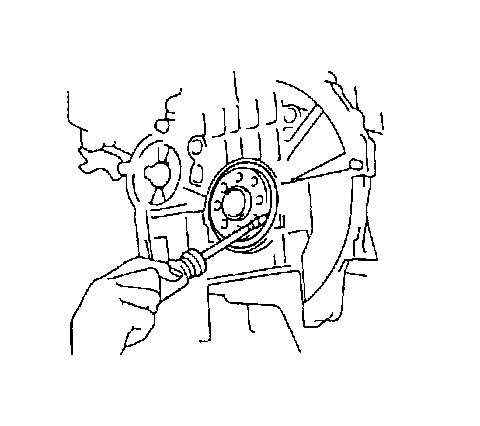

1. Insert the screwdriver between the crankshaft and the rear oil seal.
2. Use the screwdriver and pry out the crankshaft rear oil seal.
