19. Oil Pump Removal

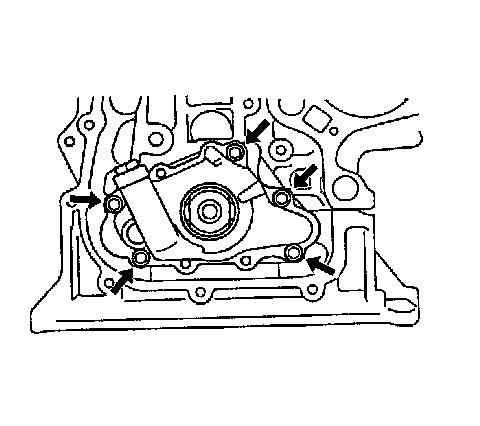

Oil Pump Removal





1. Remove the 5 oil pump bolts.
2. Remove the oil pump.
3. Remove the oil pump gasket.
