16. Cylinder Head Removal

Cylinder Head Removal





1. Remove the following items in sequence:

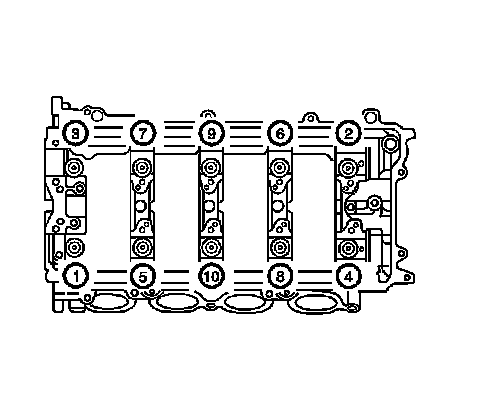

* The cylinder head bolts
* The cylinder head washers





2. Remove the cylinder head.

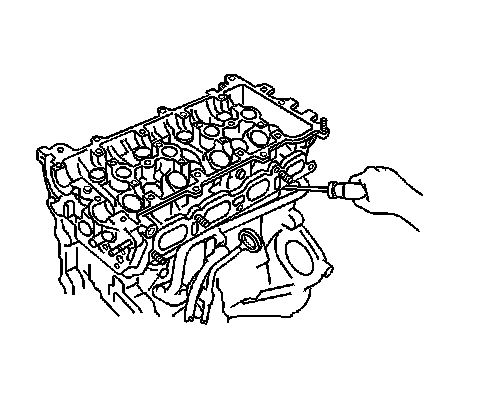

3. Remove the cylinder head gasket (1).




4. Clean the cylinder block mating surfaces.




5. Clean the cylinder head mating surface.
