11. Timing Chain Housing Removal

Timing Chain Housing Removal

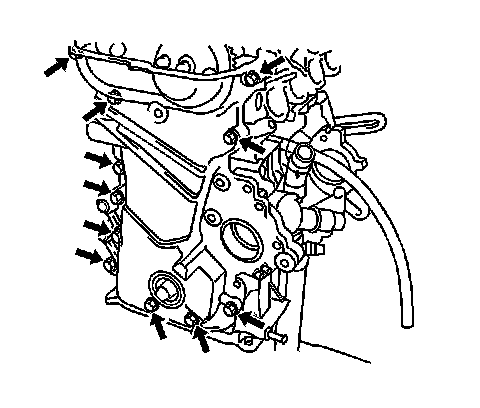

1. Remove the 12 timing chain housing bolts.
2. Gently pry the timing chain cover away from the cylinder block and remove the timing chain cover and gasket.
