10. Timing Chain Tensioner Removal



Timing Chain Tensioner Removal

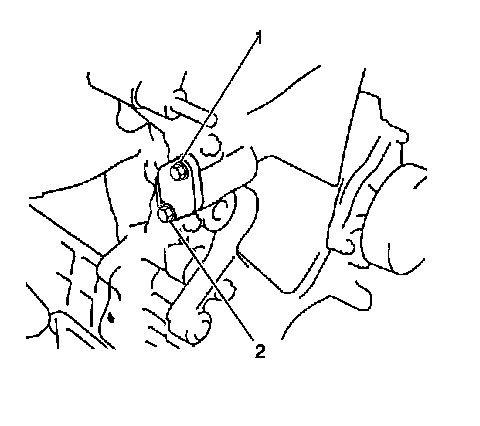

1. Remove the timing chain tensioner nuts (1,2).
2. Remove the timing chain tensioner.
