Wiper and Washer Systems



Wiper/Washer Schematics

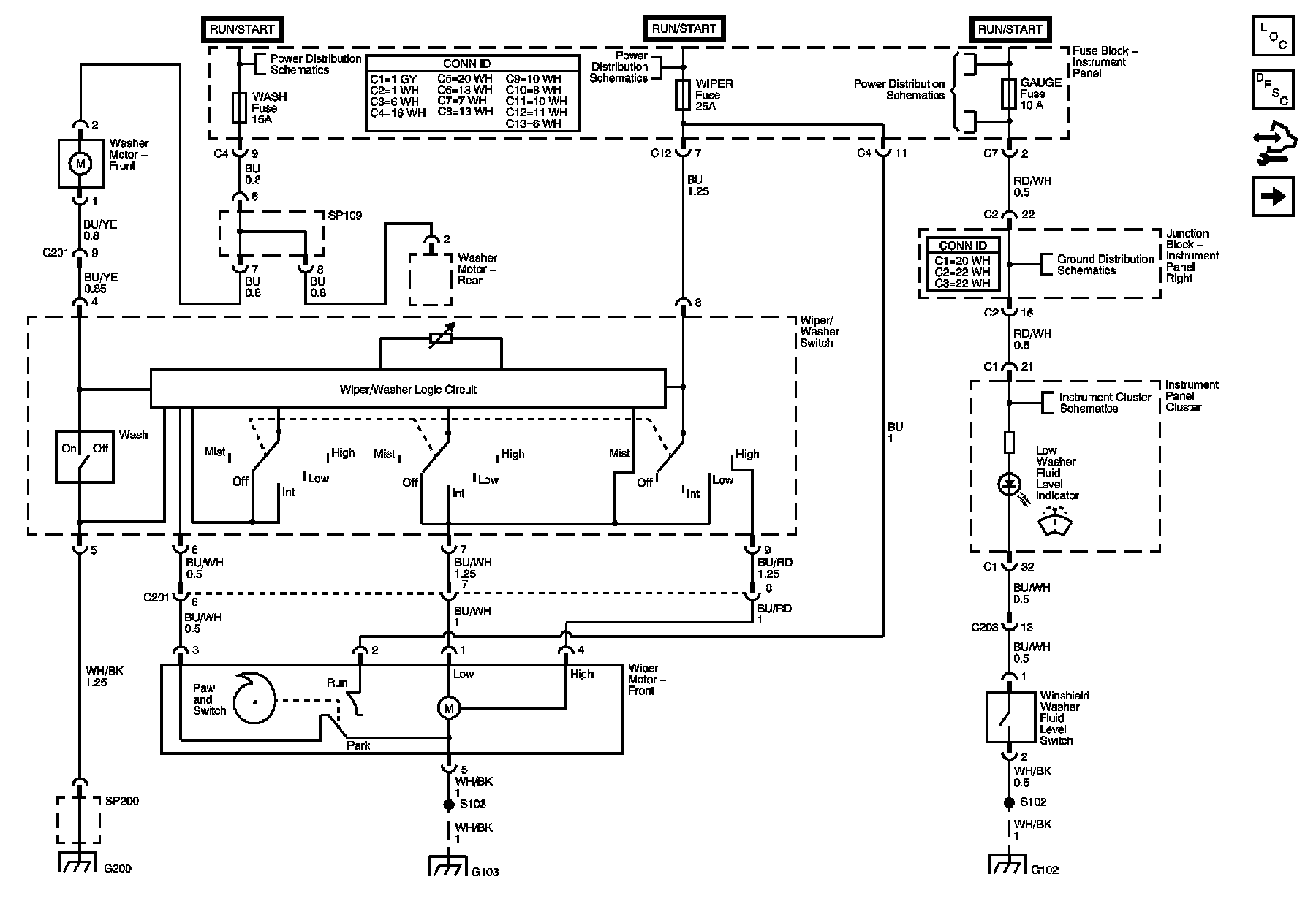

Front Wiper System

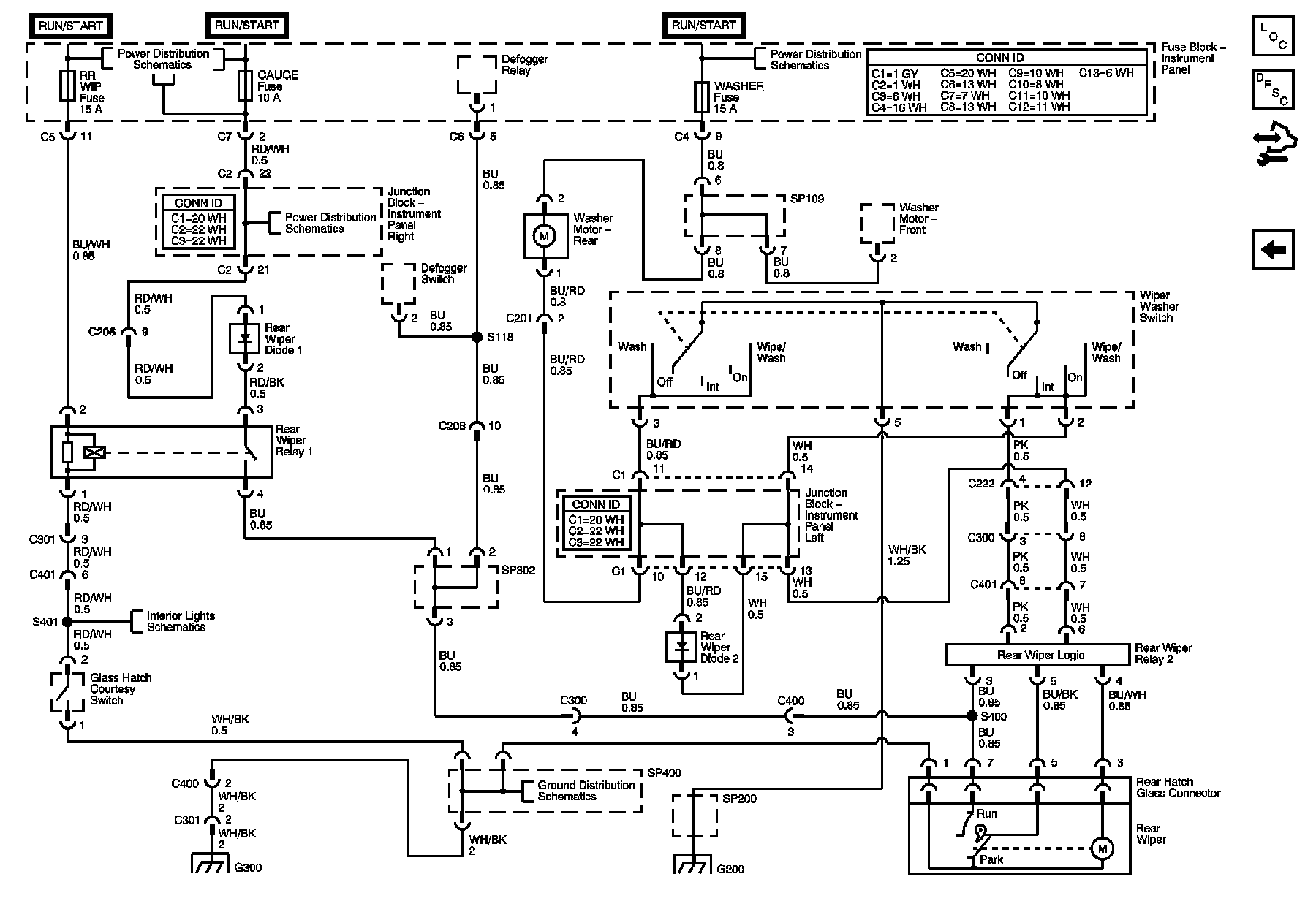

Rear Wiper System with Prewash Function
