Home >> Pontiac >> 2008 >> Vibe L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows

Windows

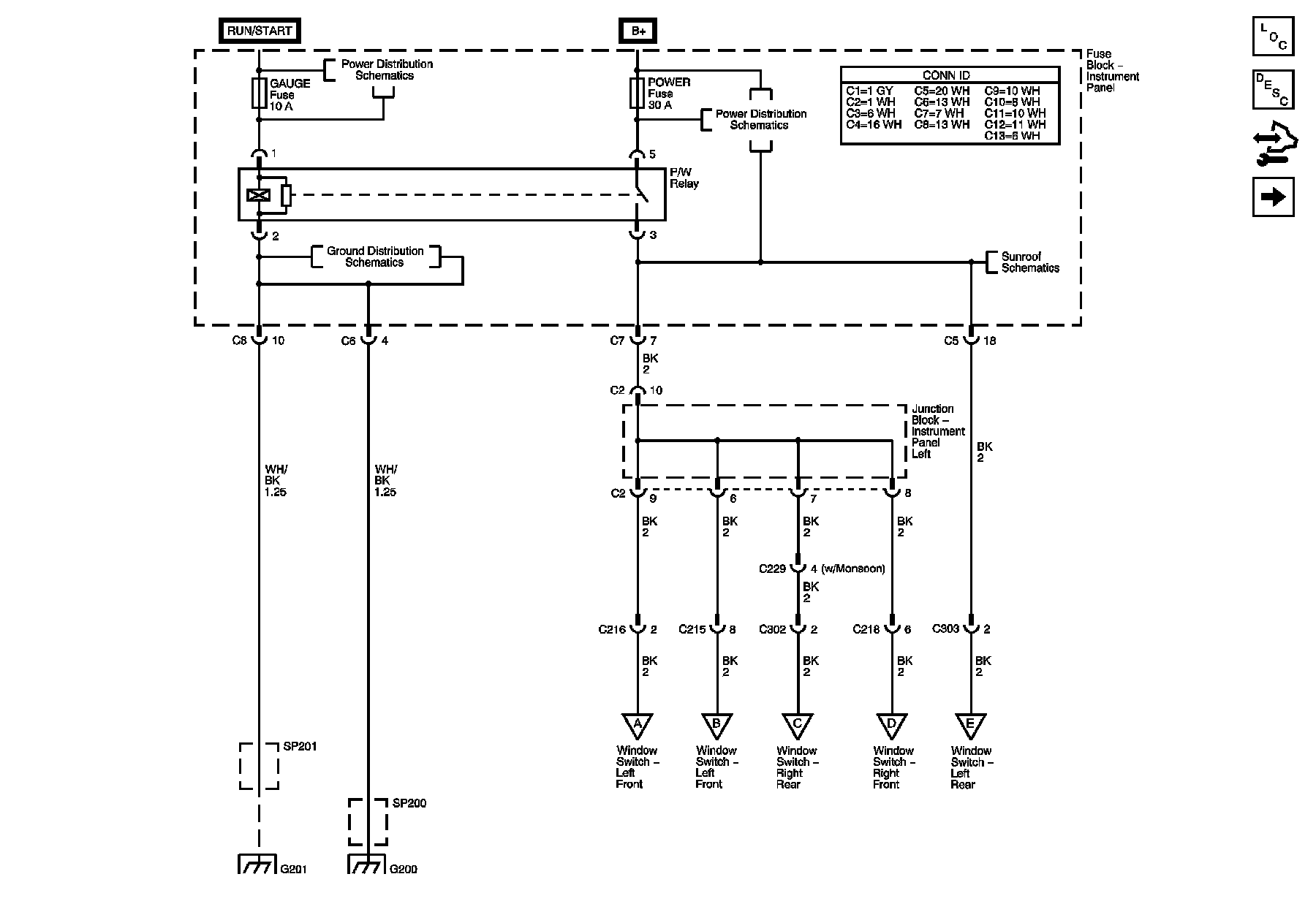

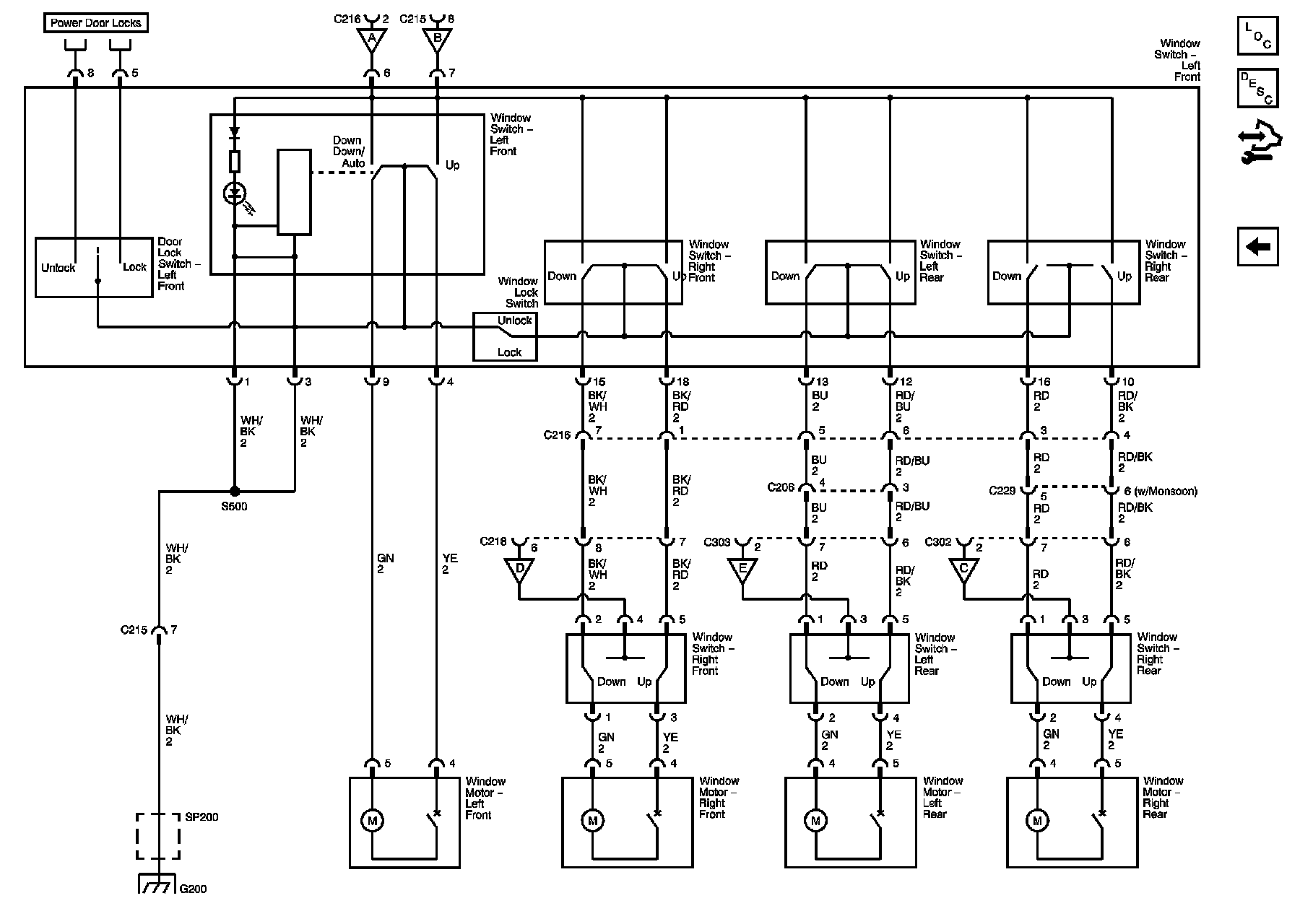

Moveable Window Schematics

1 of 2





2 of 2
