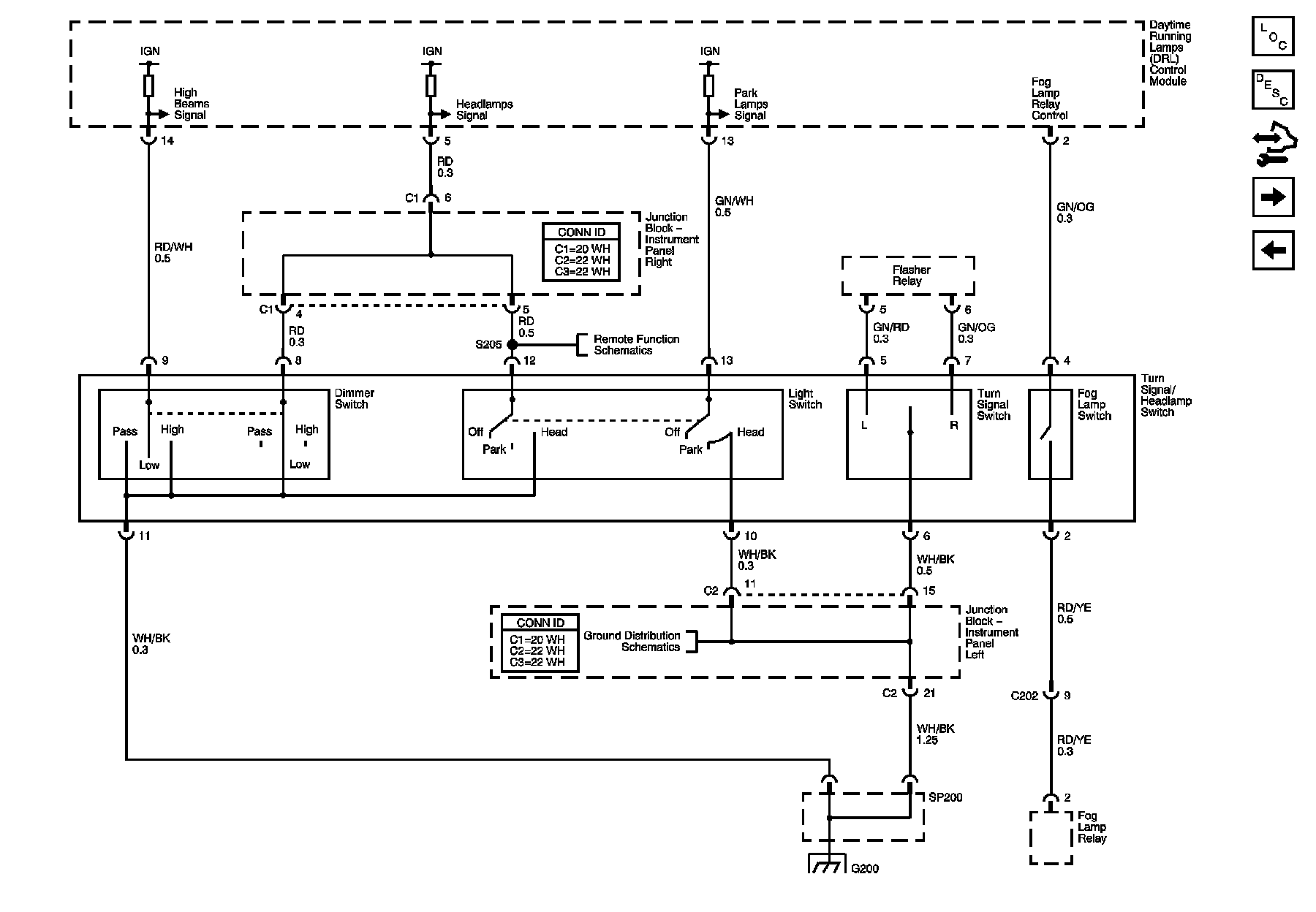

Headlights/Daytime Running Lights (DRL) Schematic 2



Headlights/Daytime Running Lights (DRL) Schematics

Turn Signal/Headlamp Switch
