Headlights/Daytime Running Lights (DRL) Schematics
>>

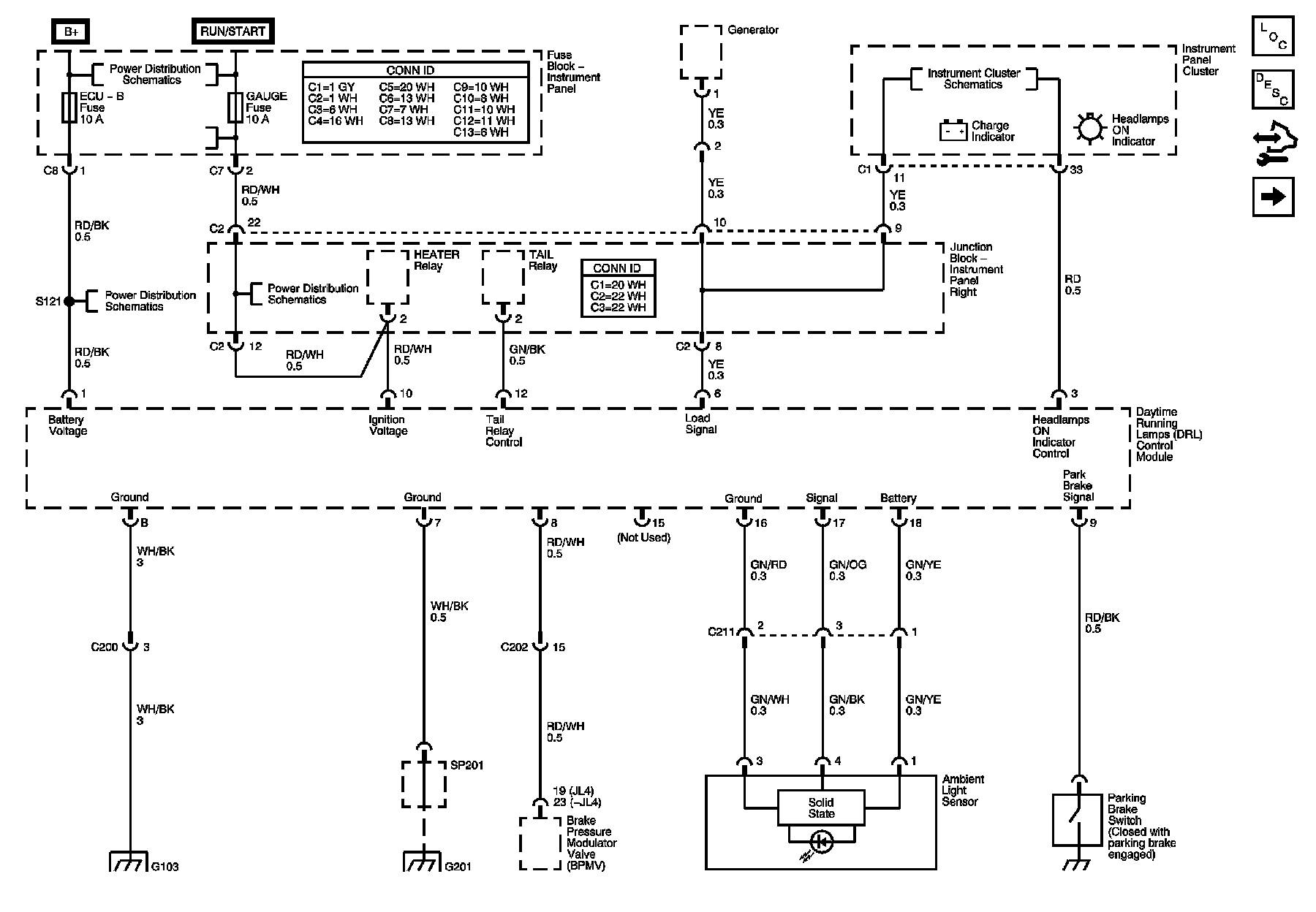

Headlights/Daytime Running Lights (DRL) Schematic 1
Headlights/Daytime Running Lights (DRL) Schematic 1
Headlights/Daytime Running Lights (DRL) Schematics
Daytime Running Lamps (DRL) Control Module Power and Ground,
Ambient Light Sensor
