Home >> Pontiac >> 2008 >> Vibe L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper and Washer Systems >> Wiper Motor

Wiper Motor

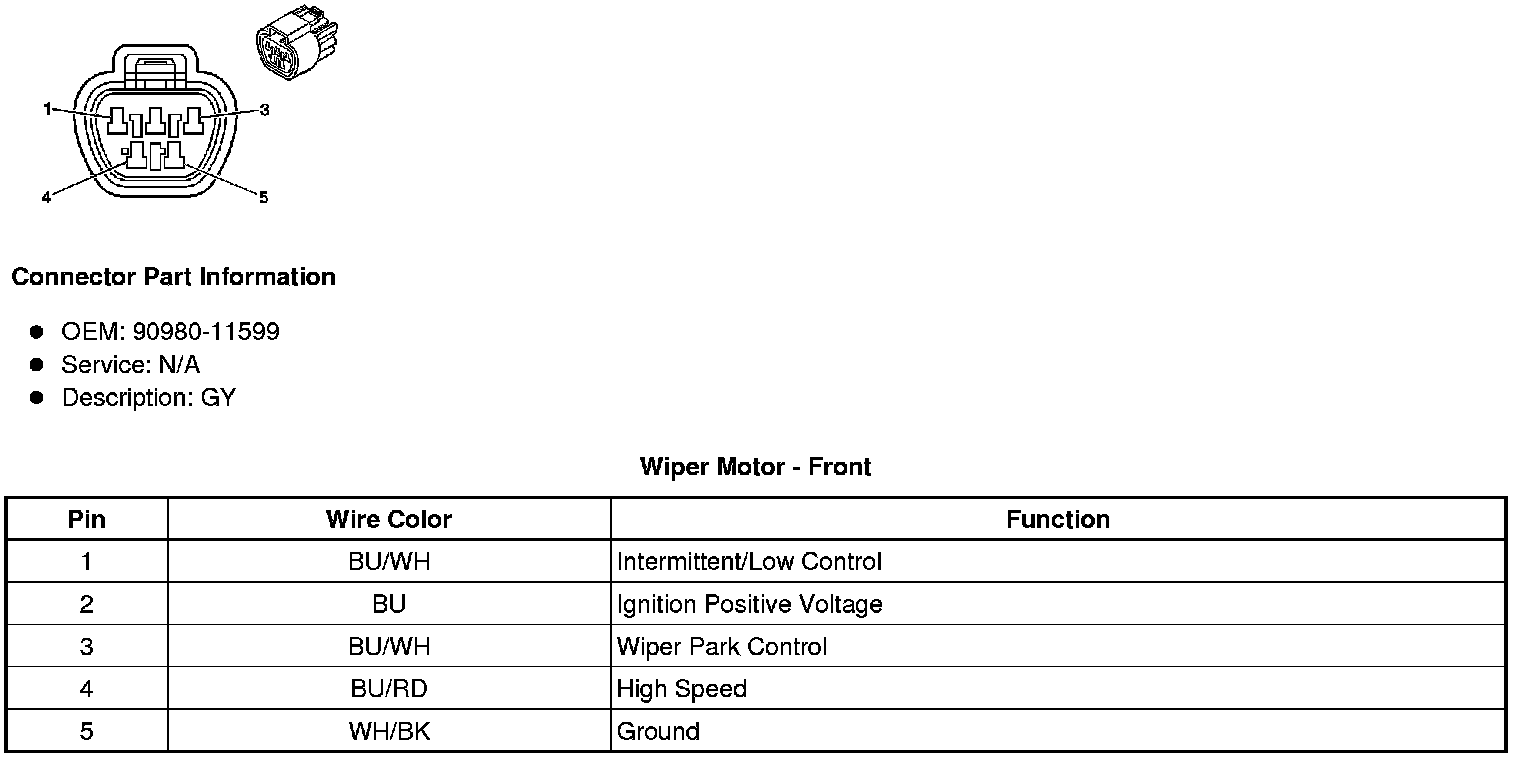

Wiper/Washer Connector End Views

Wiper Motor - Front
