System Diagram



Seat Belt Connector End Views

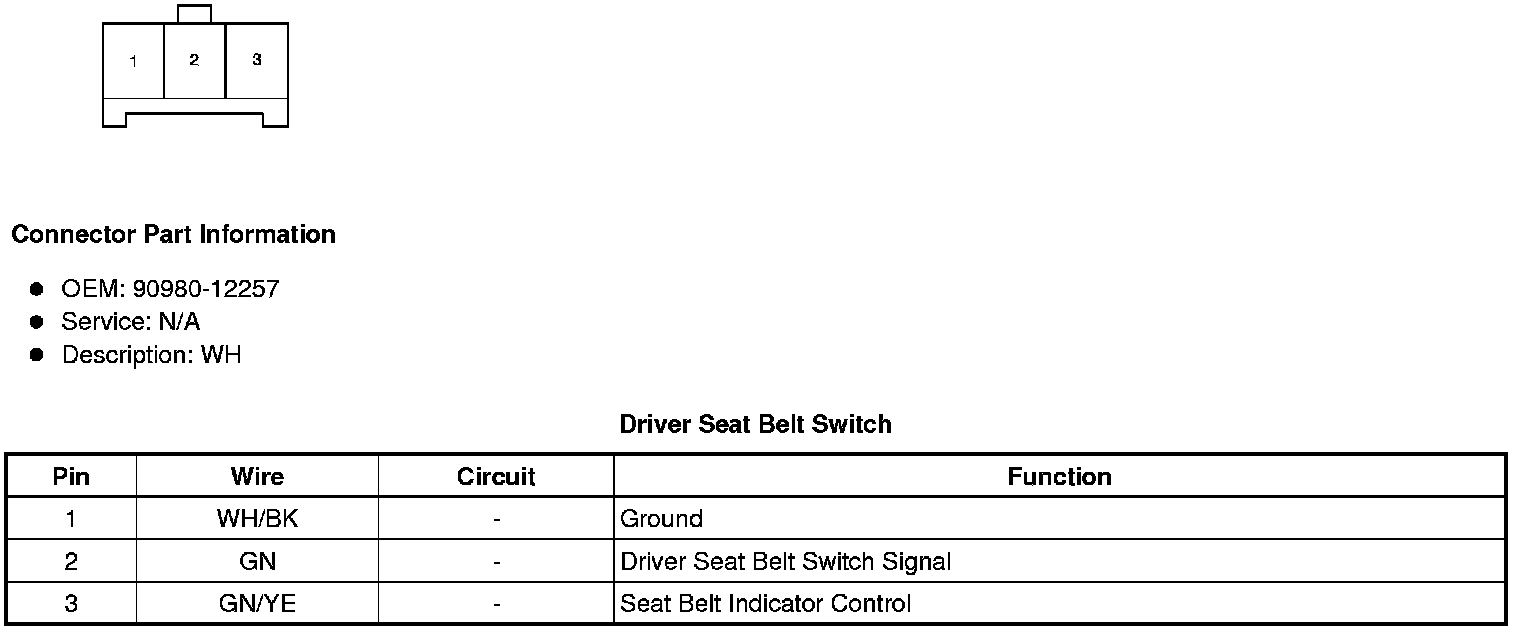

Driver Seat Belt Switch

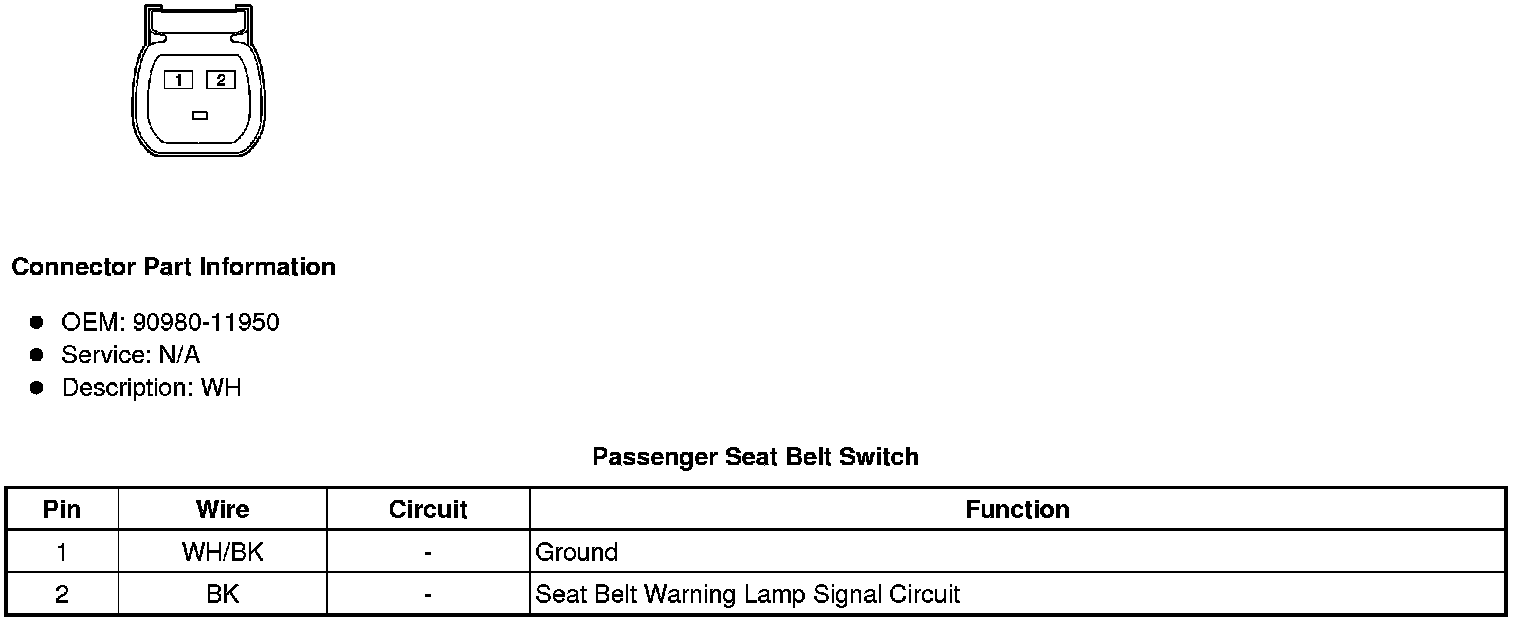

Passenger Seat Belt Switch

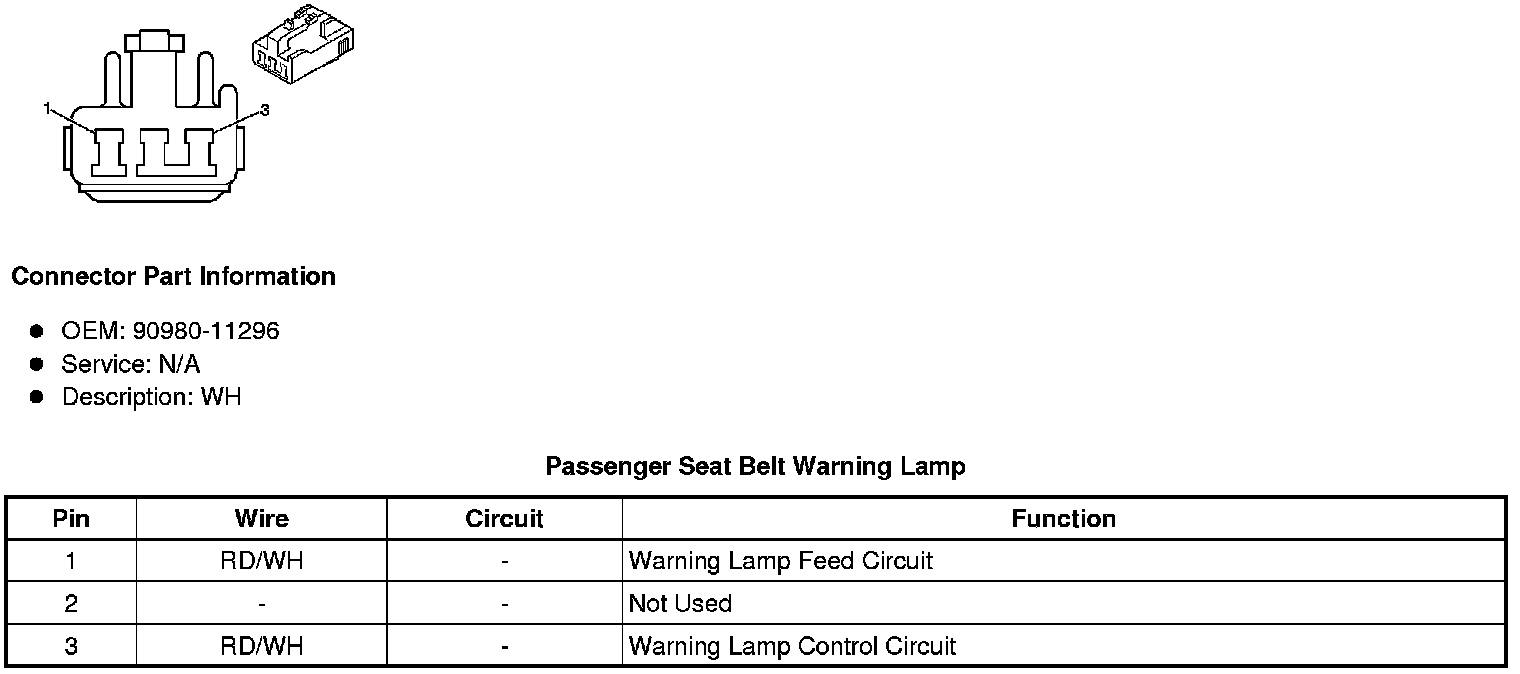

Passenger Seat Belt Warning Lamp

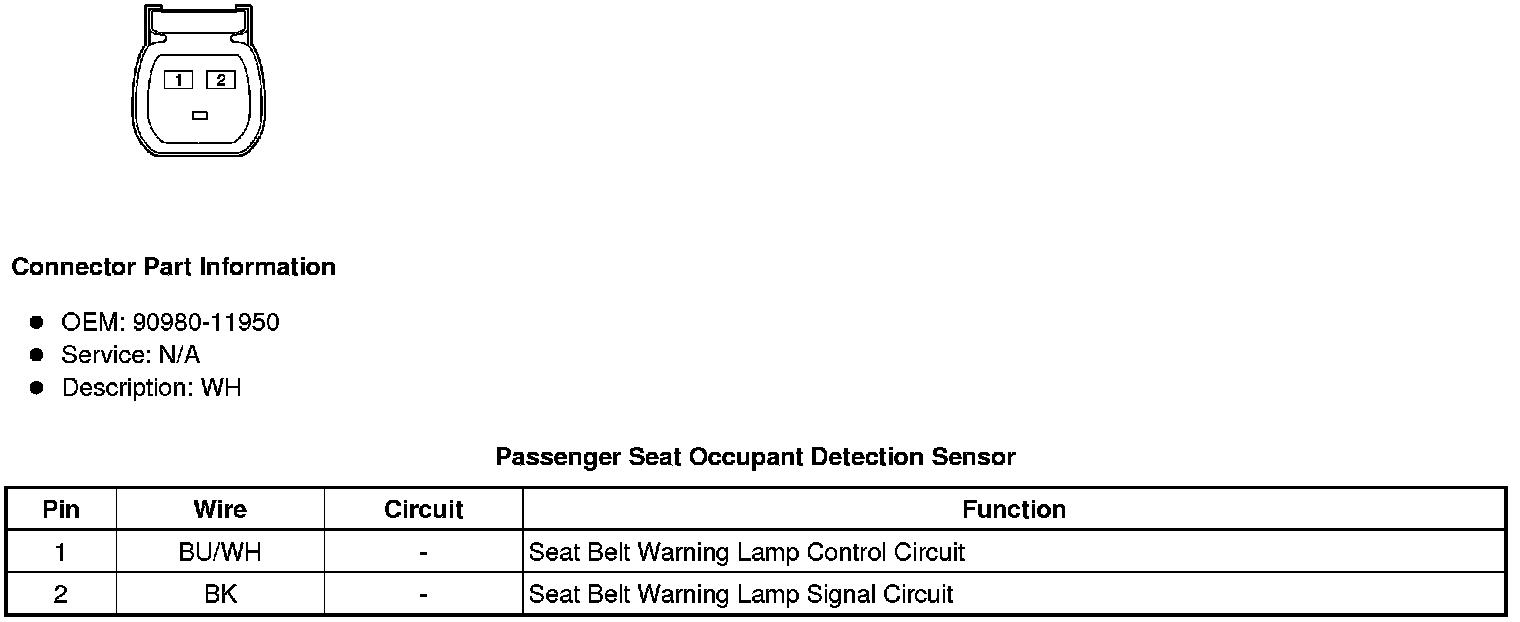

Passenger Seat Occupant Detection Sensor
