Leak Detection Pump, Evaporative System



Engine Controls Connector End Views

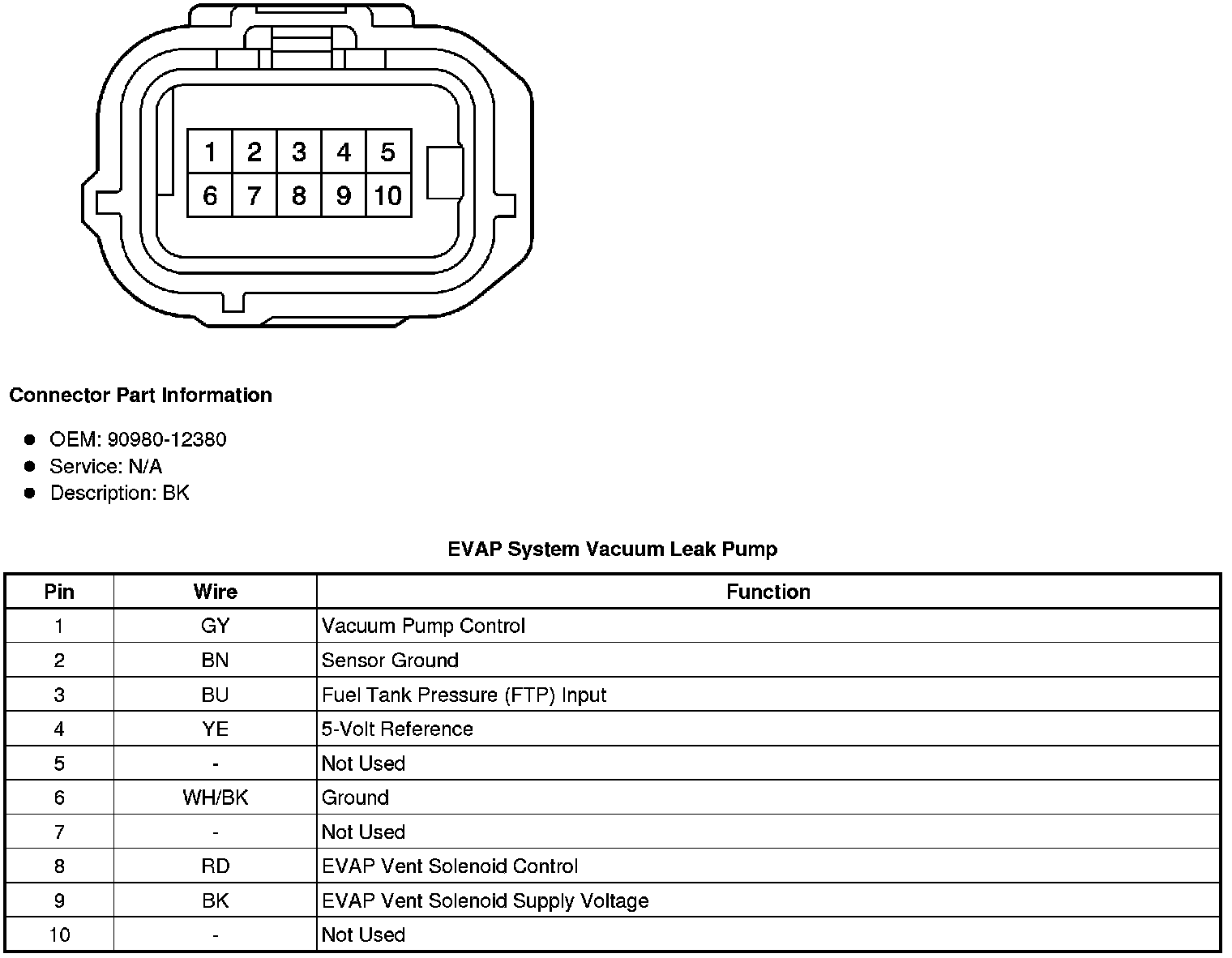

EVAP System Vacuum Leak Pump
