Ignition Coil



Engine Controls Connector End Views

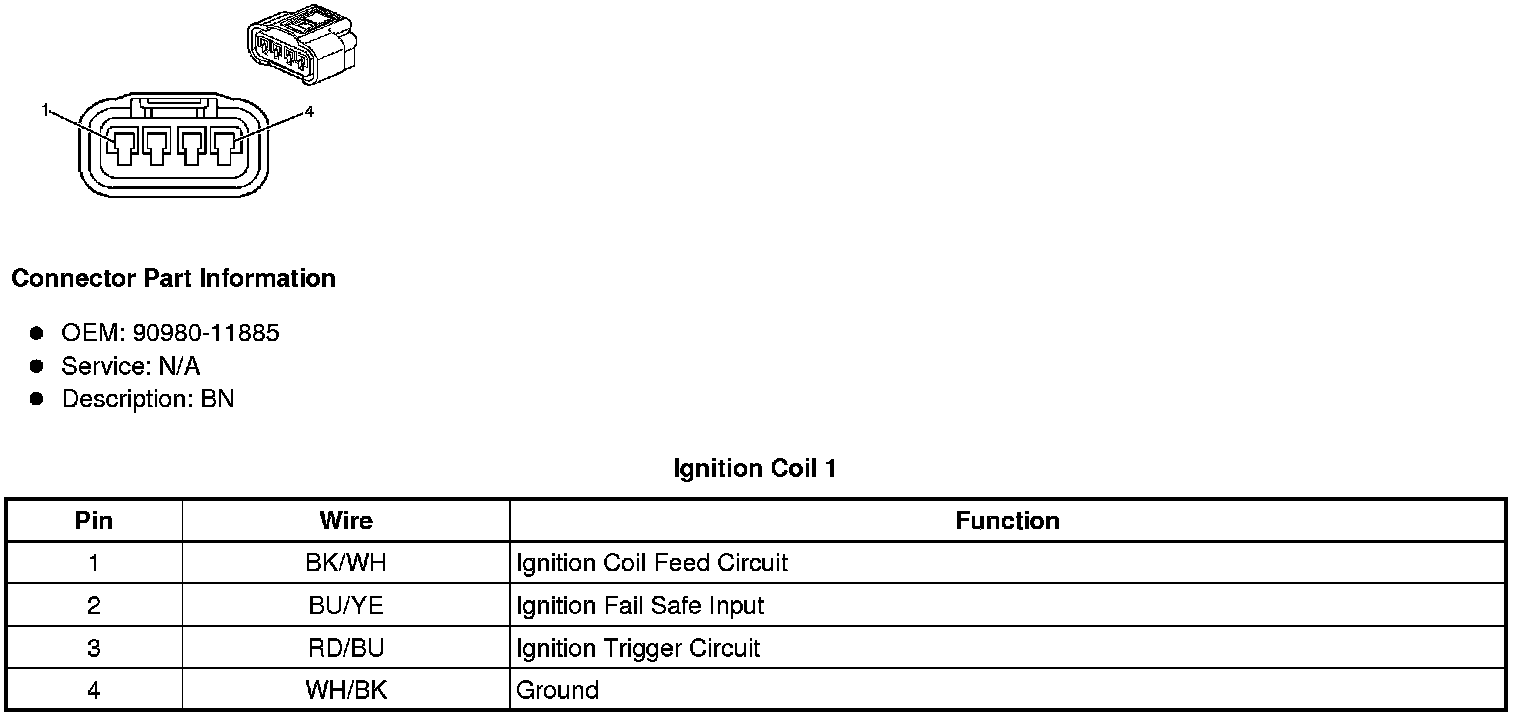

Ignition Coil 1






Ignition Coil 2






Ignition Coil 3






Ignition Coil 4
