Clutch Switch, ECM

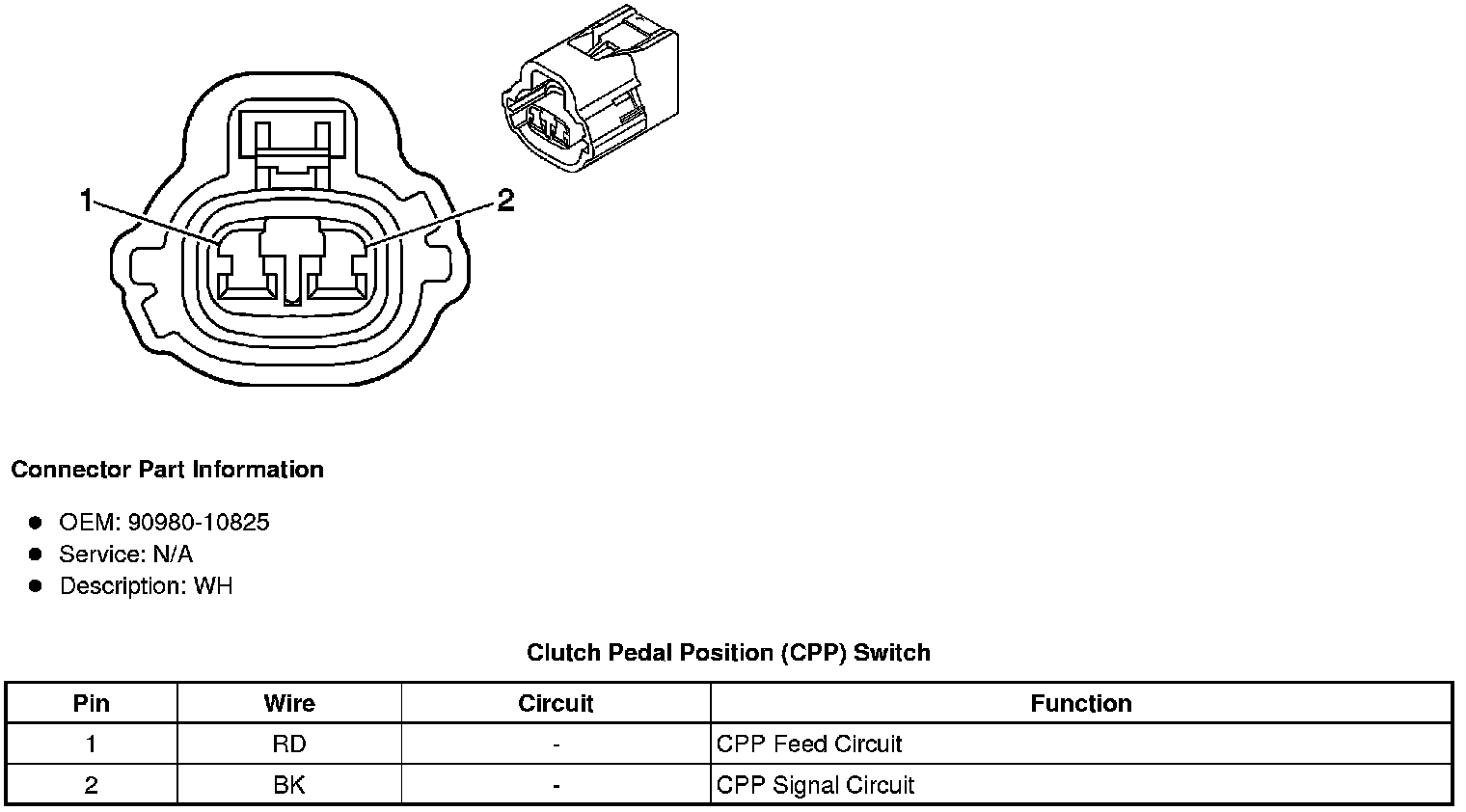

Engine Electrical Connector End Views

Clutch Pedal Position (CPP) Switch

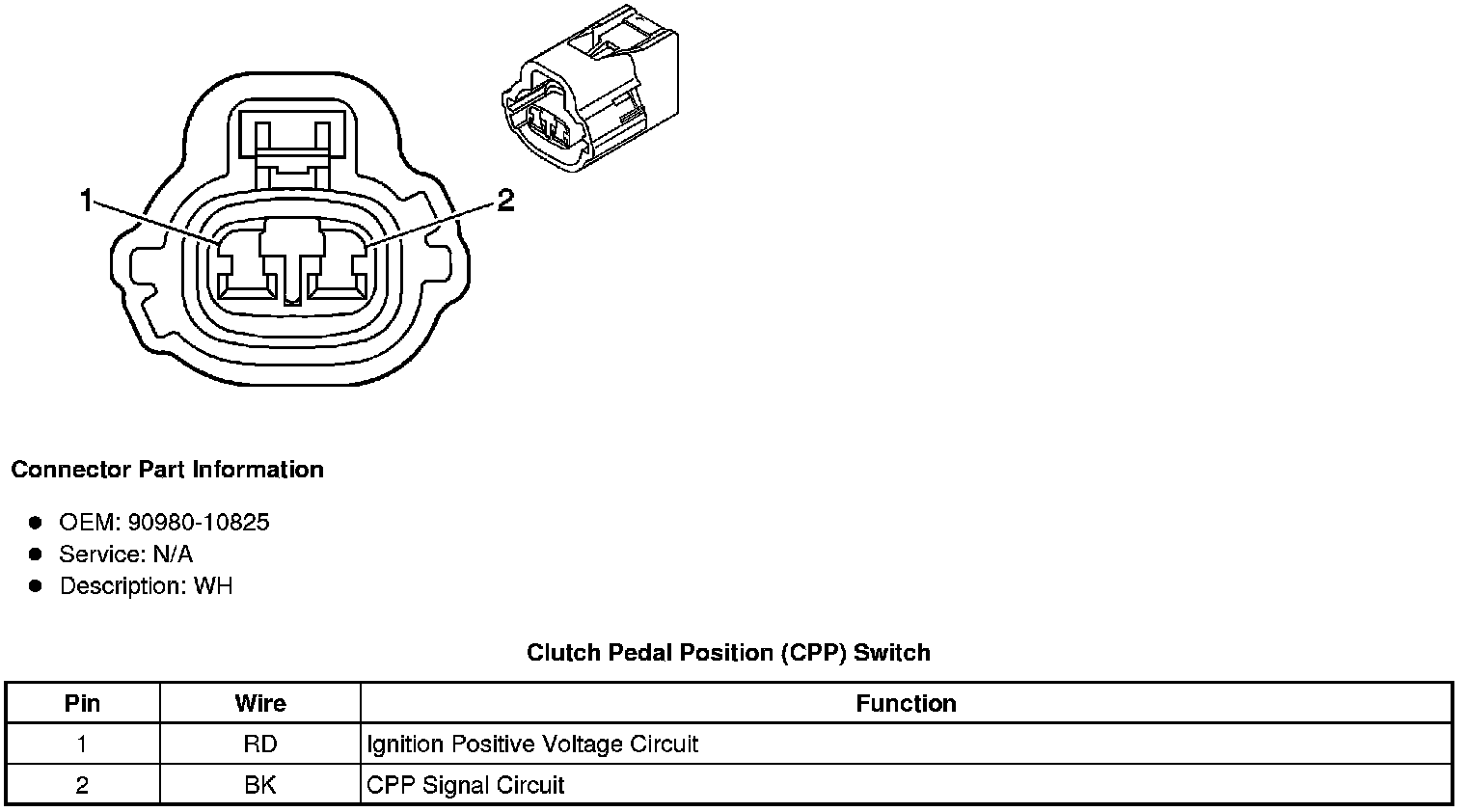

Engine Controls Connector End Views

Clutch Pedal Position (CPP) Switch
