Air Temperature Sensor ( Ambient / Intake )



Engine Controls Connector End Views

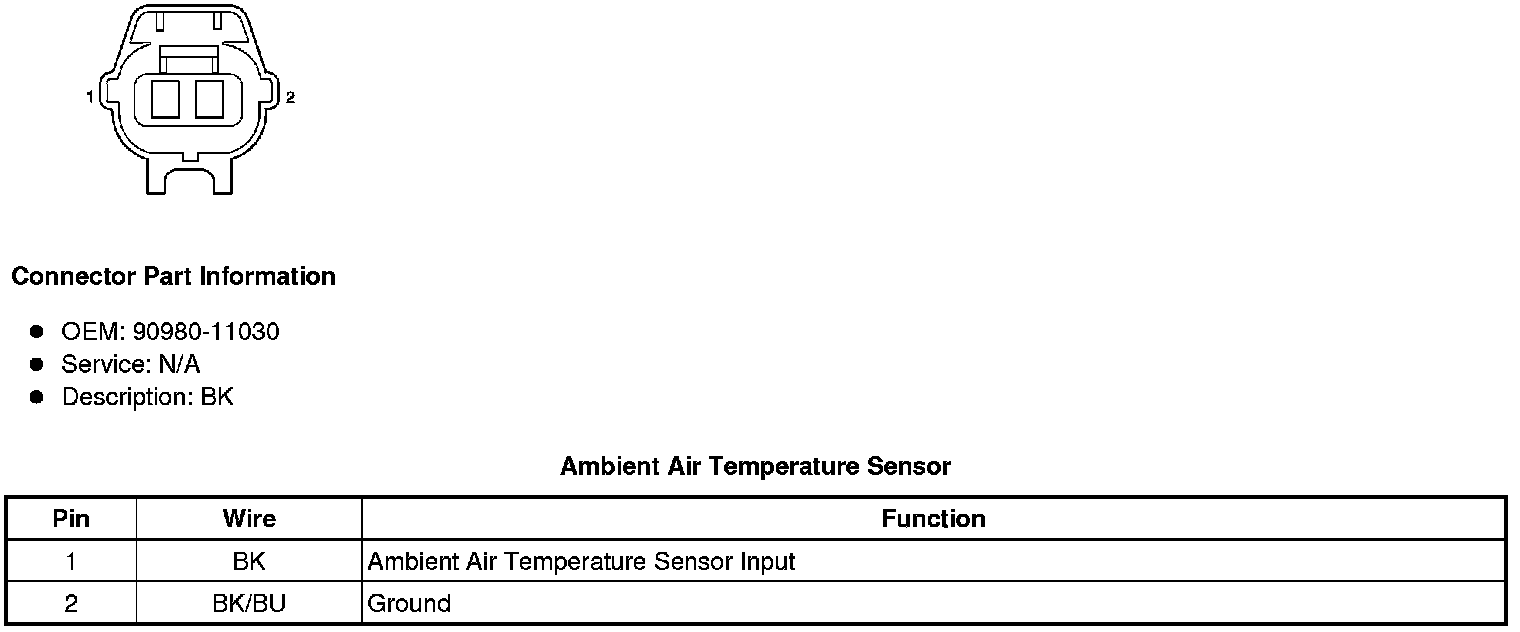

Ambient Air Temperature Sensor
