Home >> Pontiac >> 2008 >> Vibe L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Hazard Warning Switch

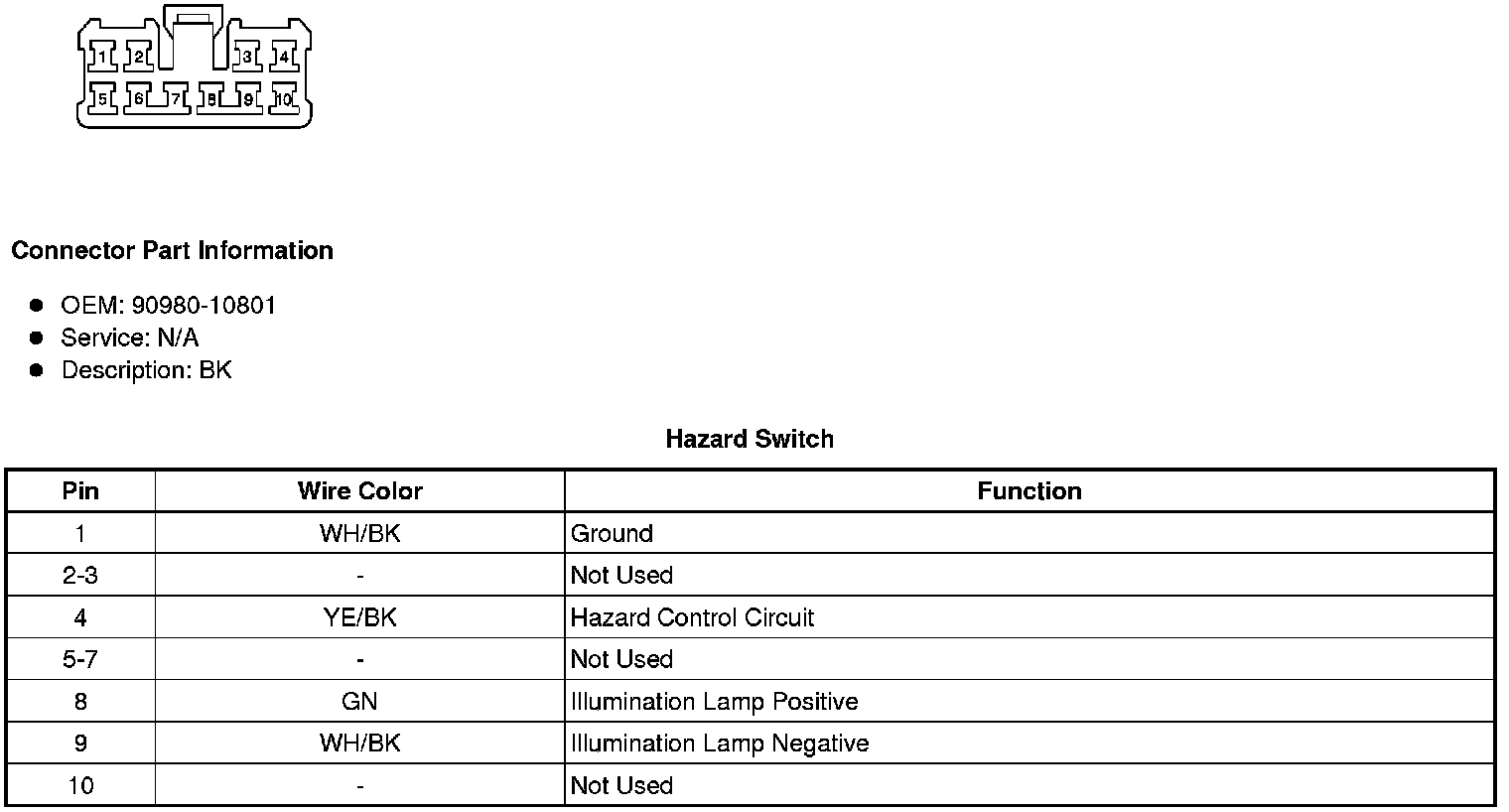

Hazard Warning Switch



Lighting Systems Connector End Views

Hazard Switch
