Fog/Driving Lamp



Lighting Systems Connector End Views

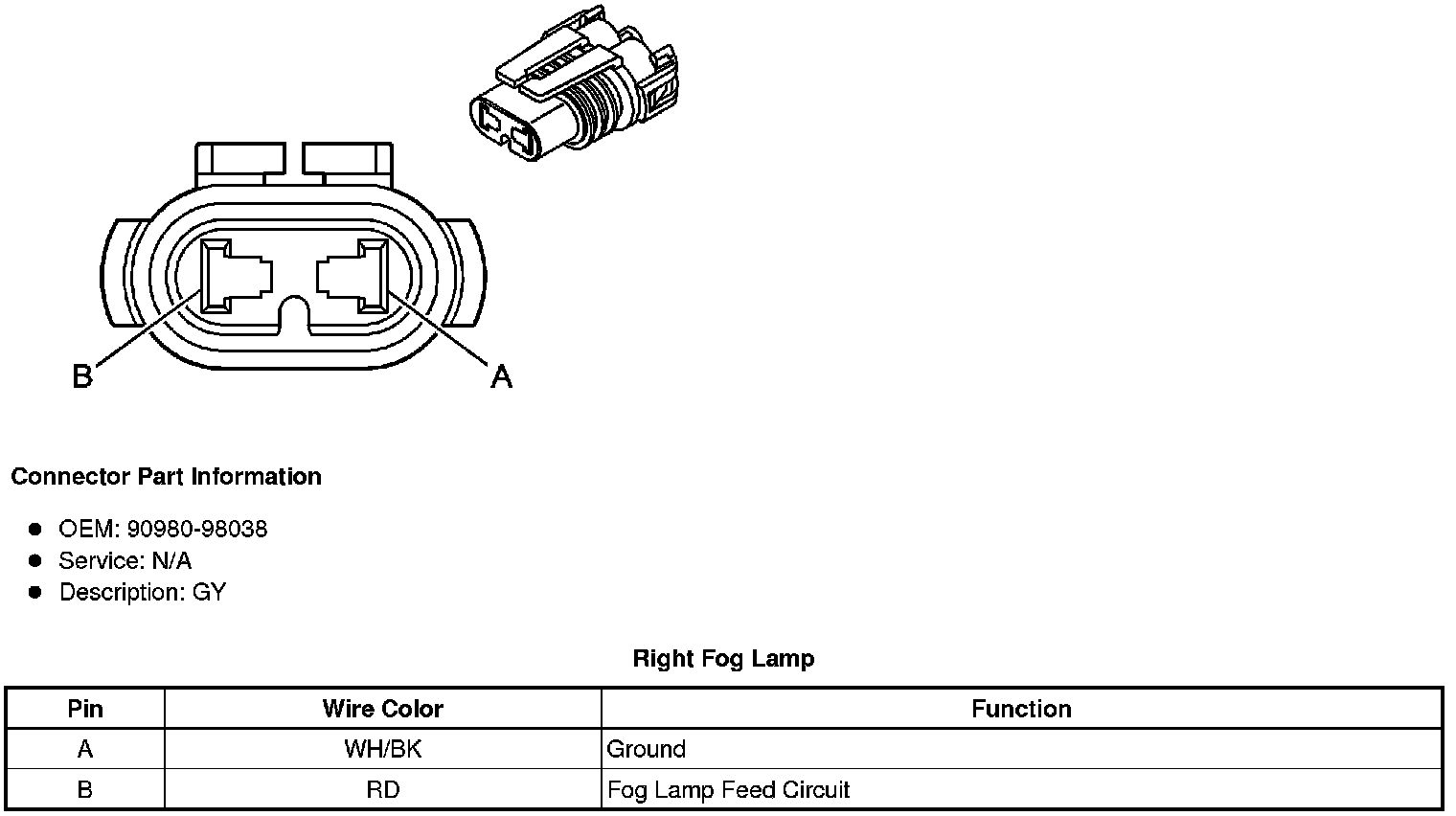

Right Fog Lamp

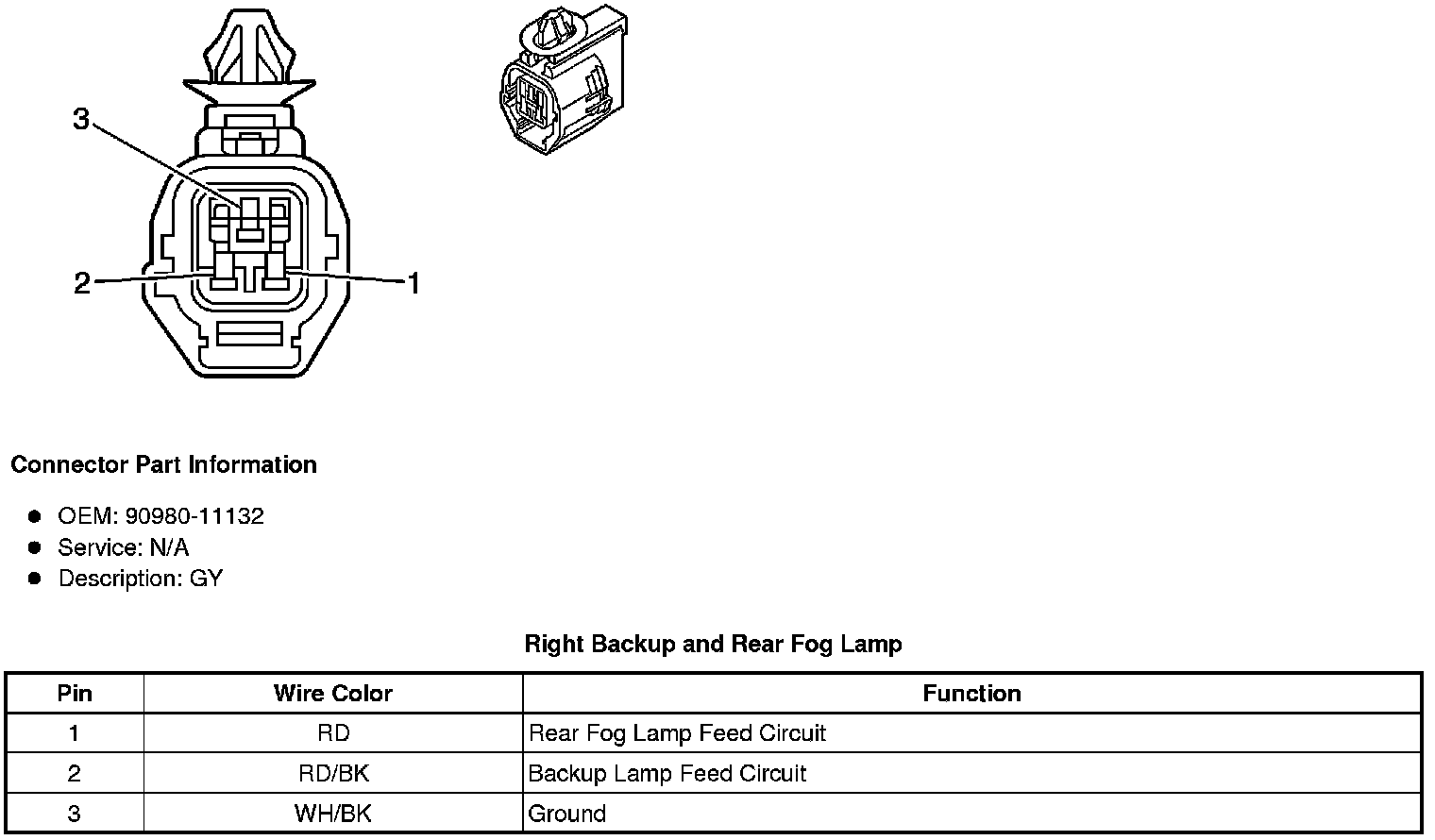

Right Backup and Rear Fog Lamp





Left Backup and Rear Fog Lamp

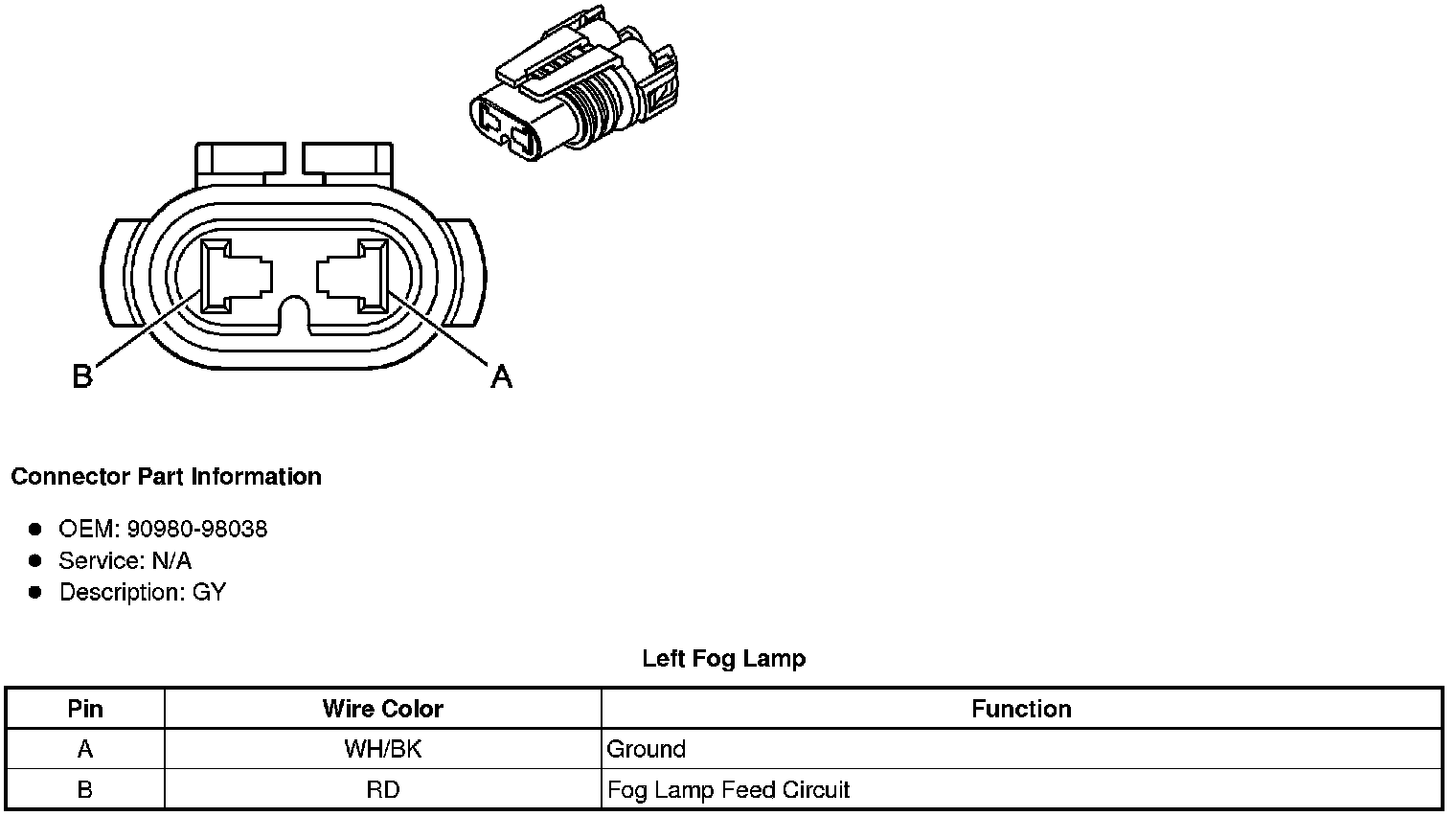

Left Fog Lamp
