System Diagram



Displays and Gages Connector End Views

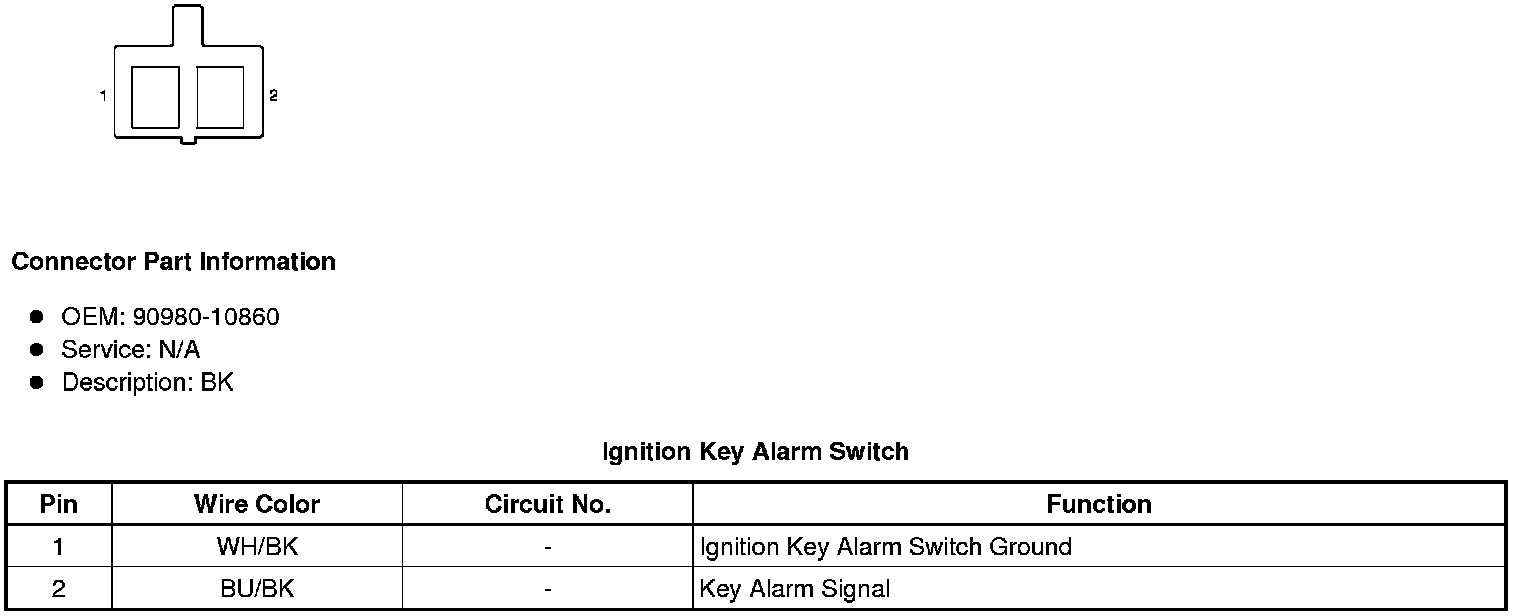

Ignition Key Alarm Switch






Instrument Panel Cluster - C1









Instrument Panel Cluster - C2
