System Diagram
HVAC Connector End Views

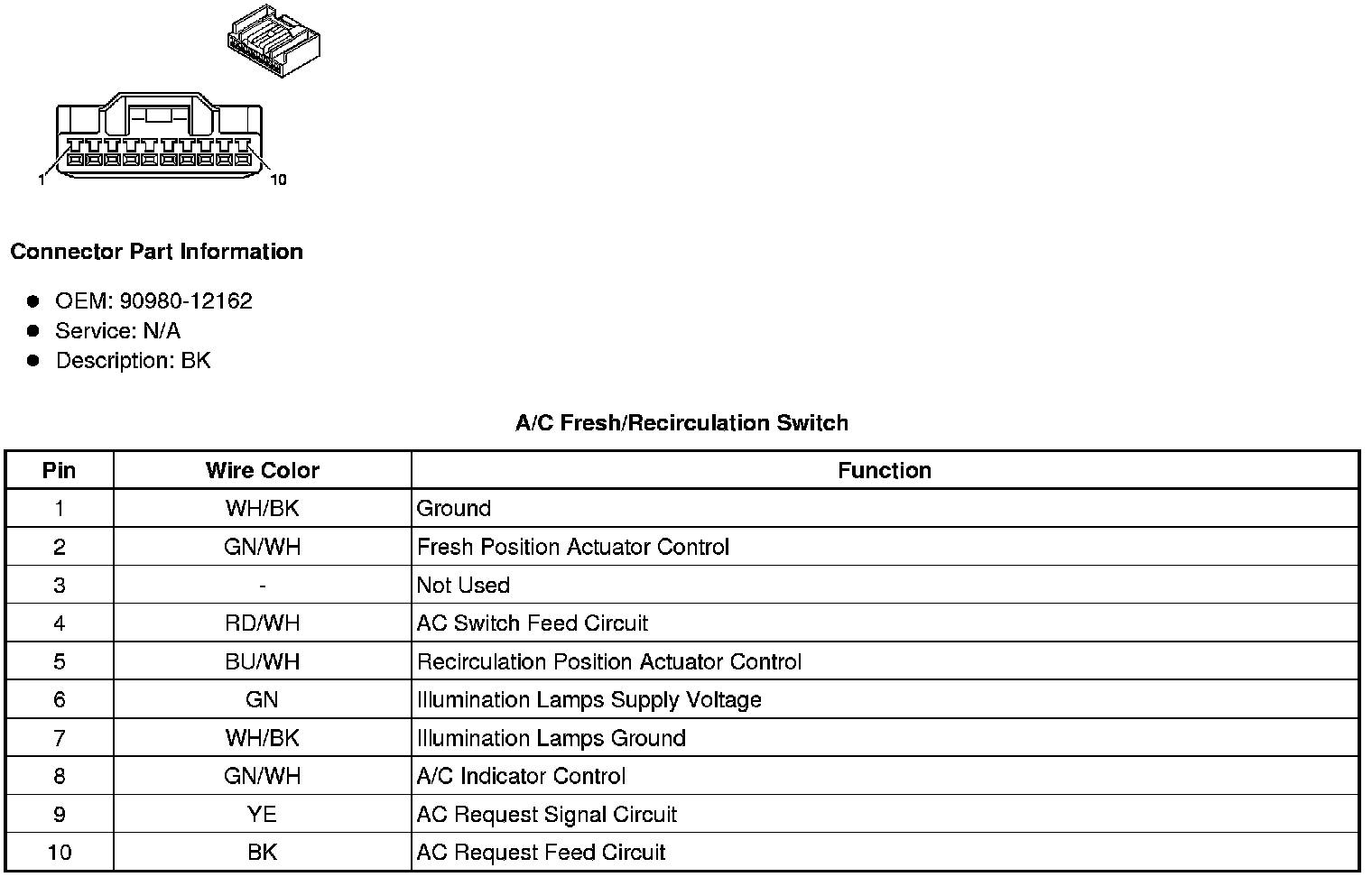

A/C Fresh/Recirculation Switch

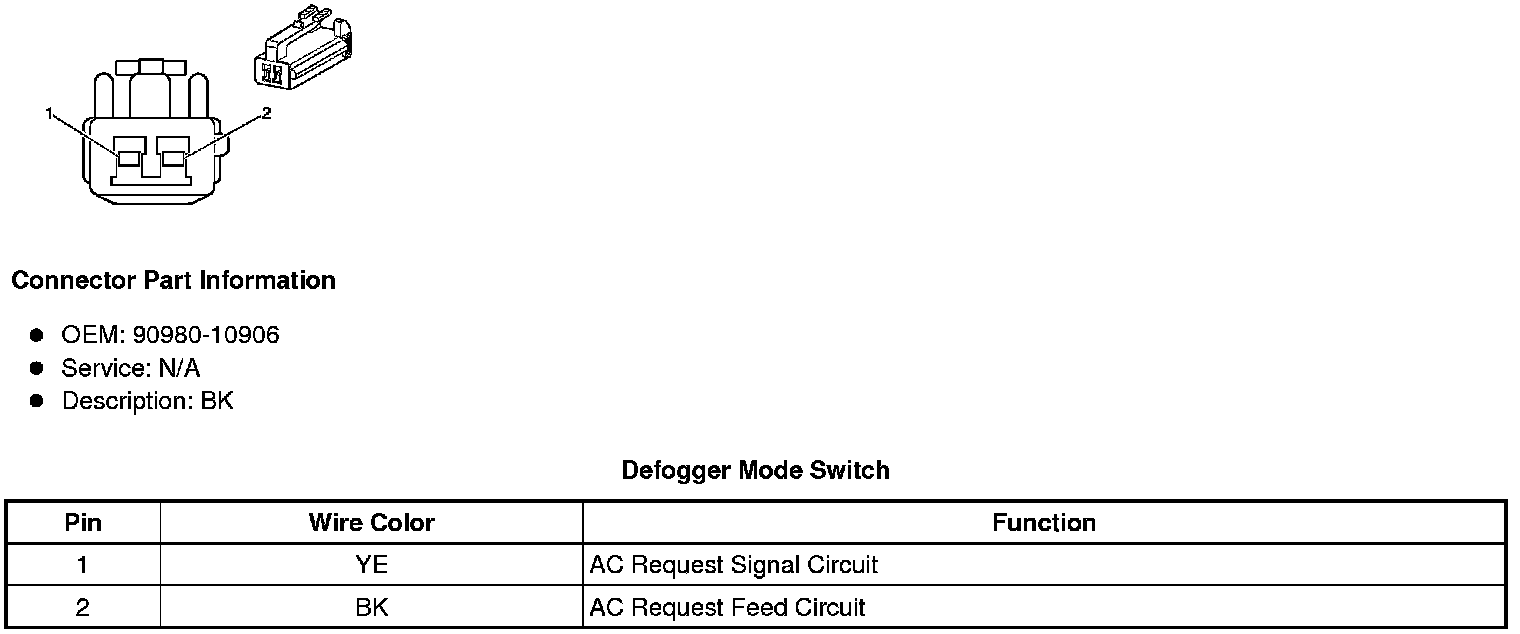

Defogger Mode Switch

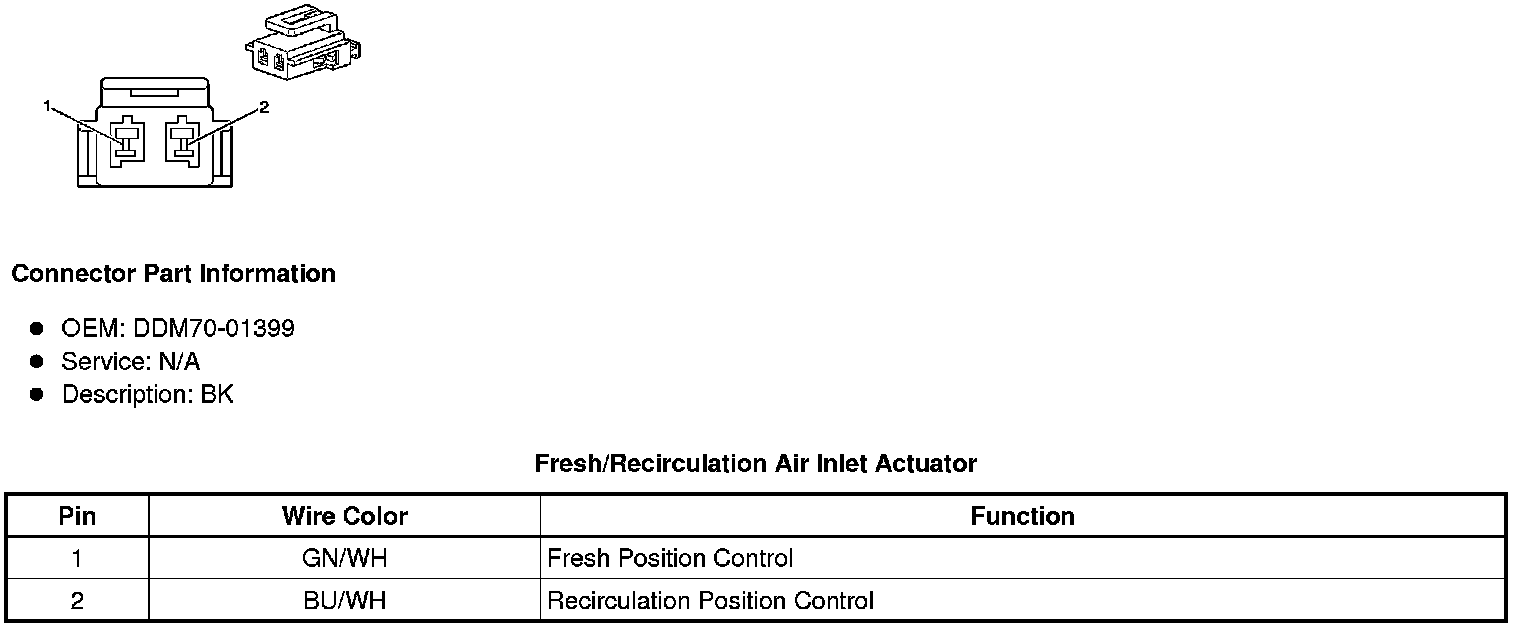

Fresh/Recirculation Air Inlet Actuator

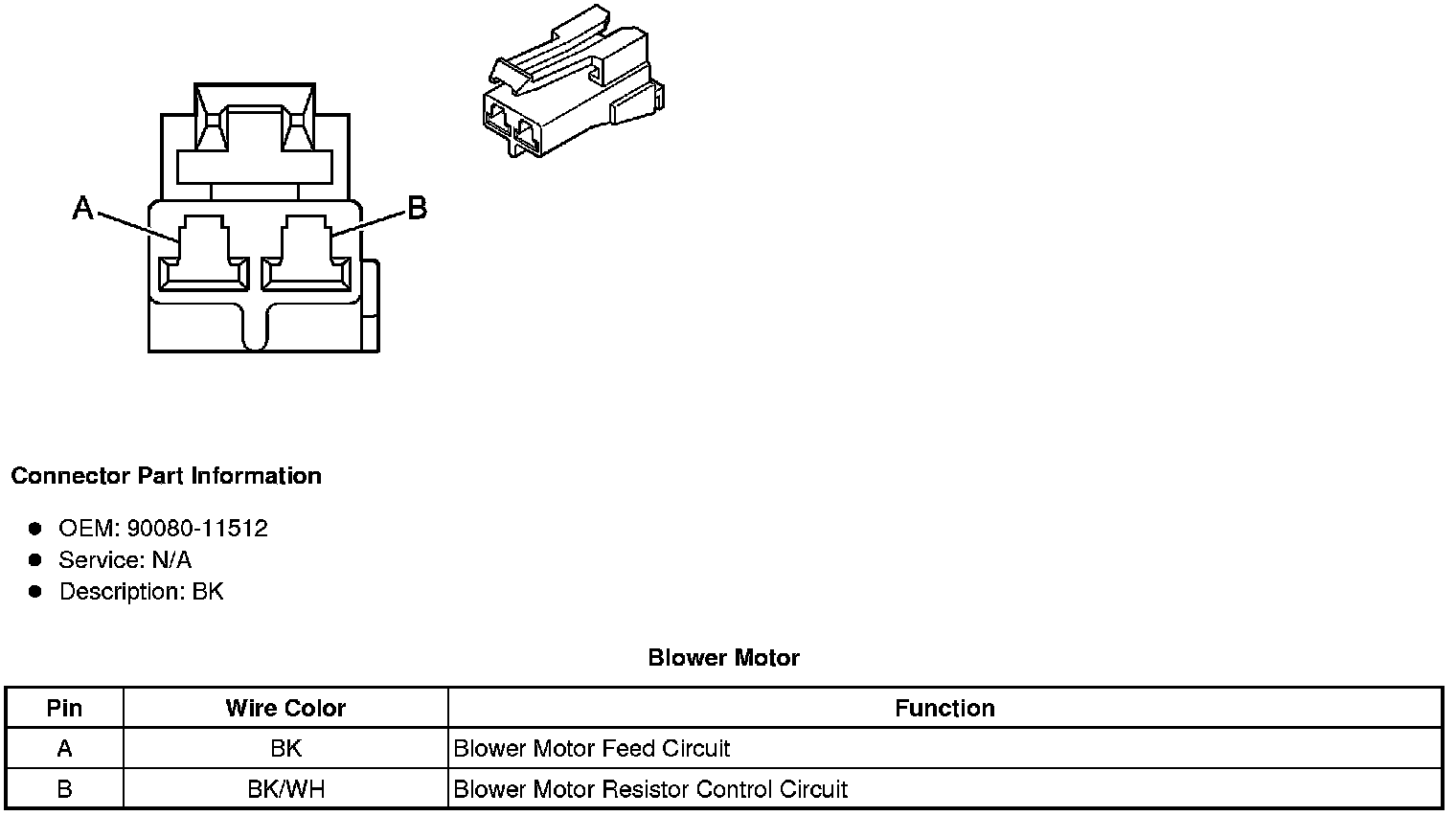

Blower Motor

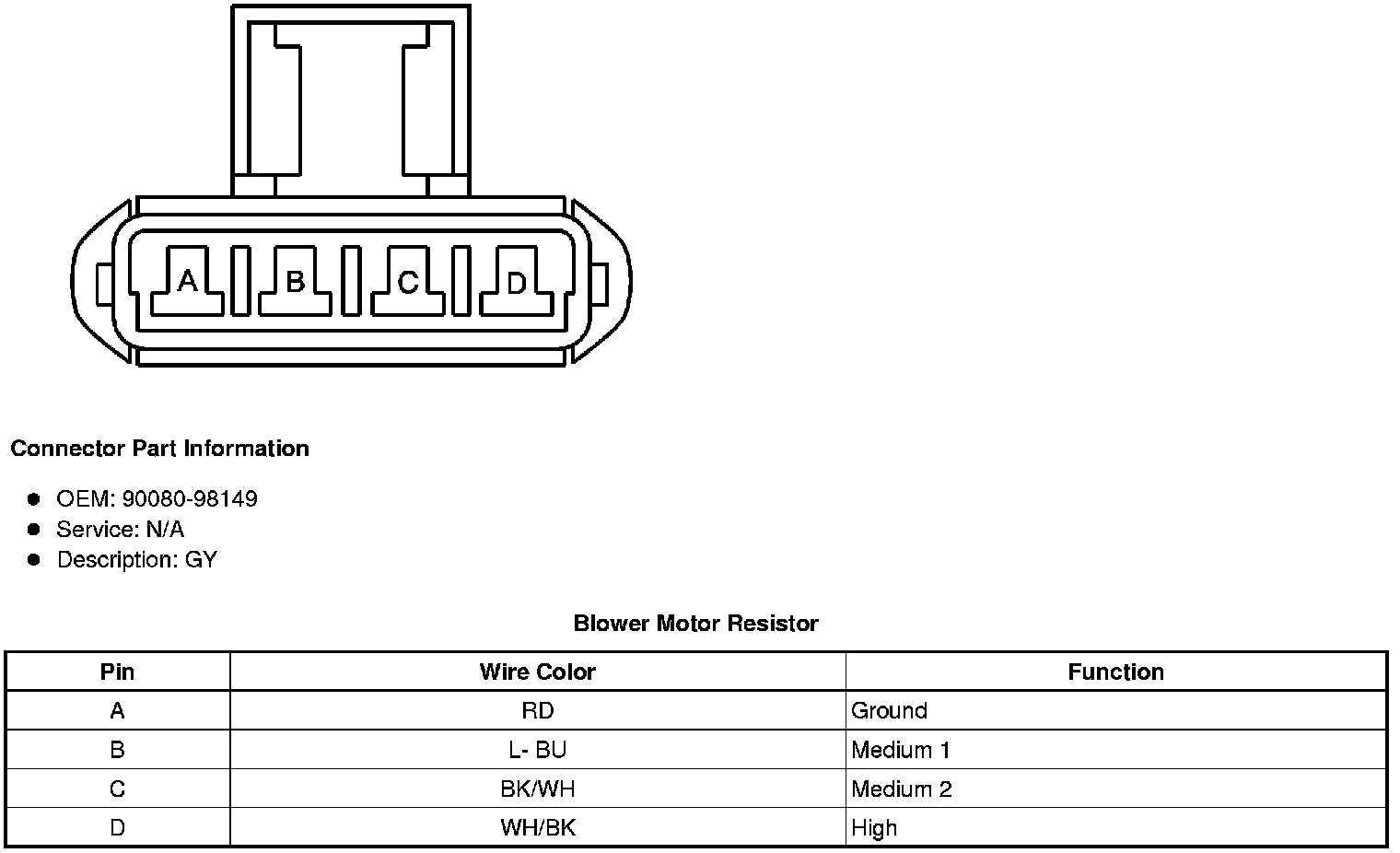

Blower Motor Resistor

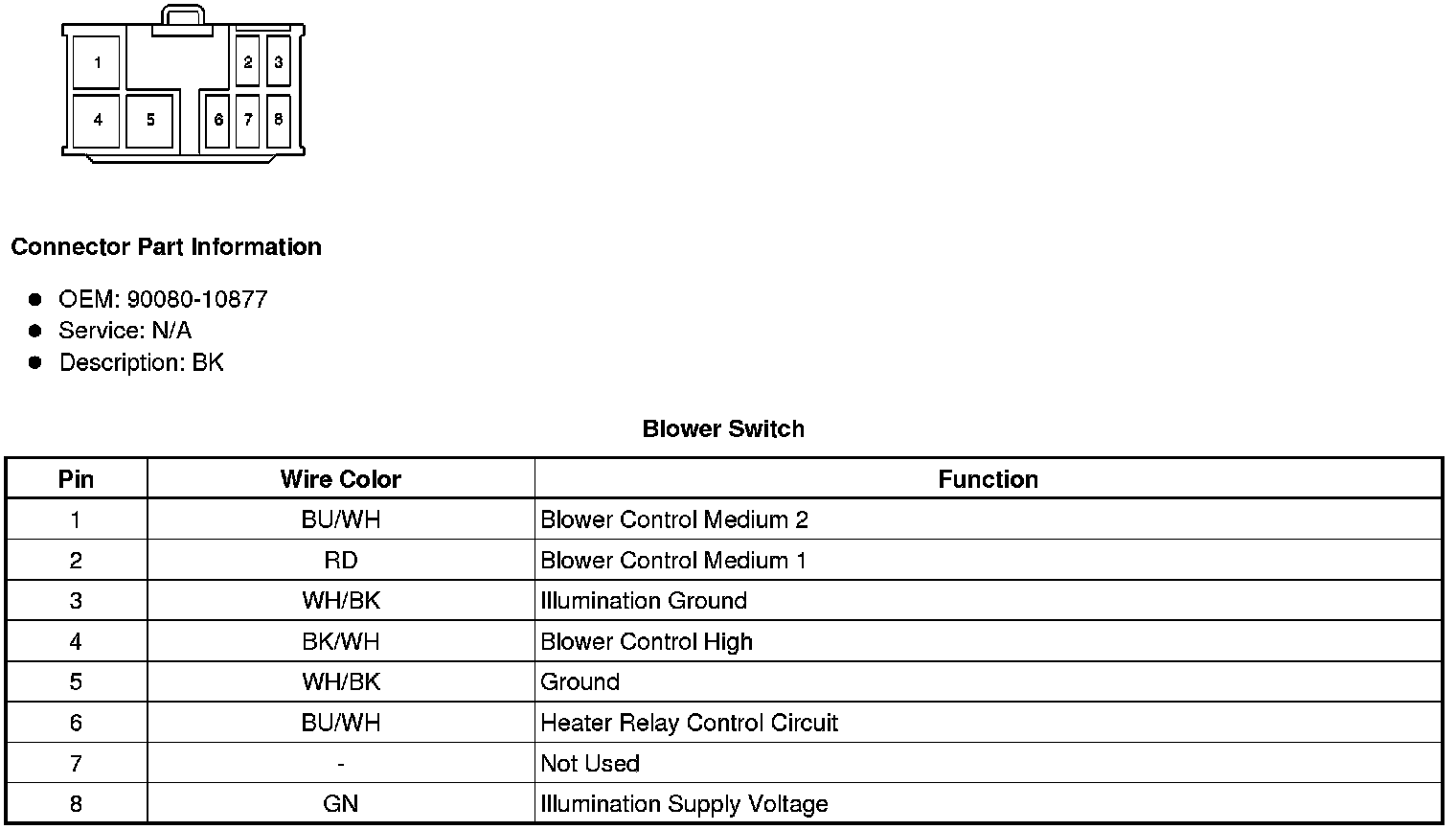

Blower Switch
Evaporator Temperature Sensor

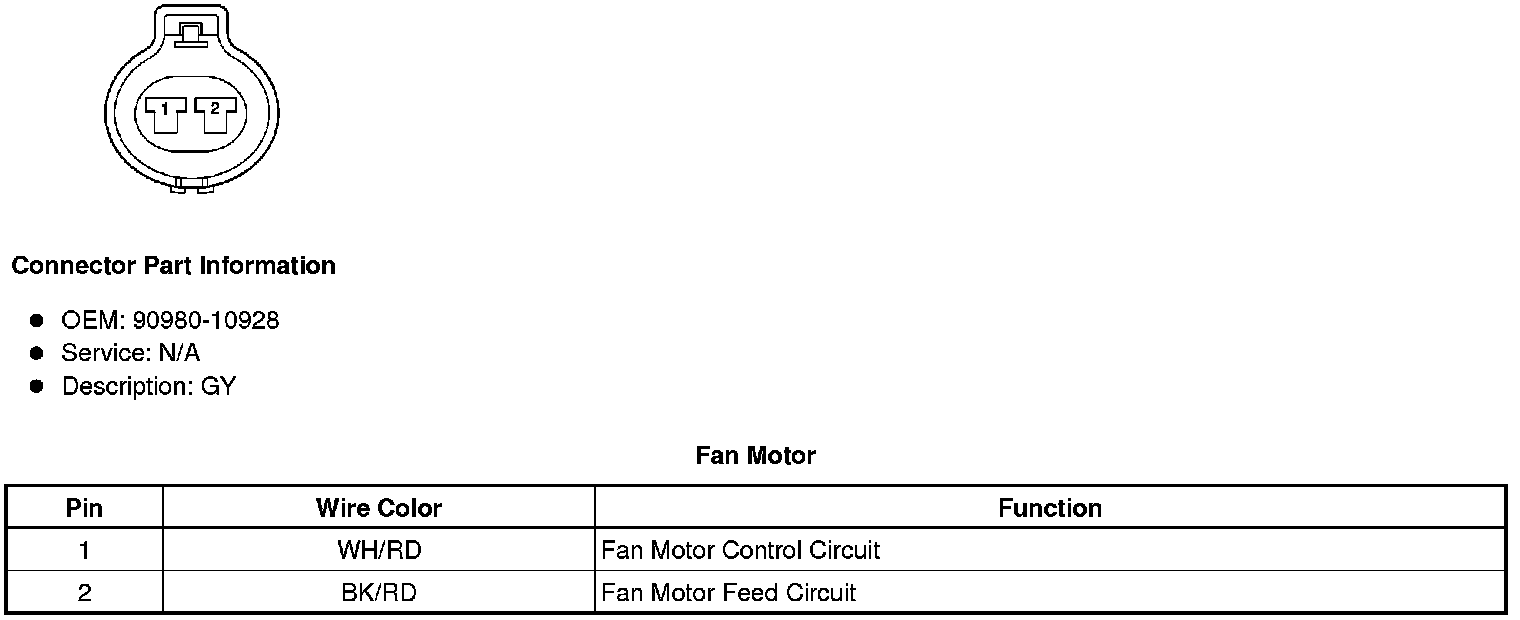

Fan Motor

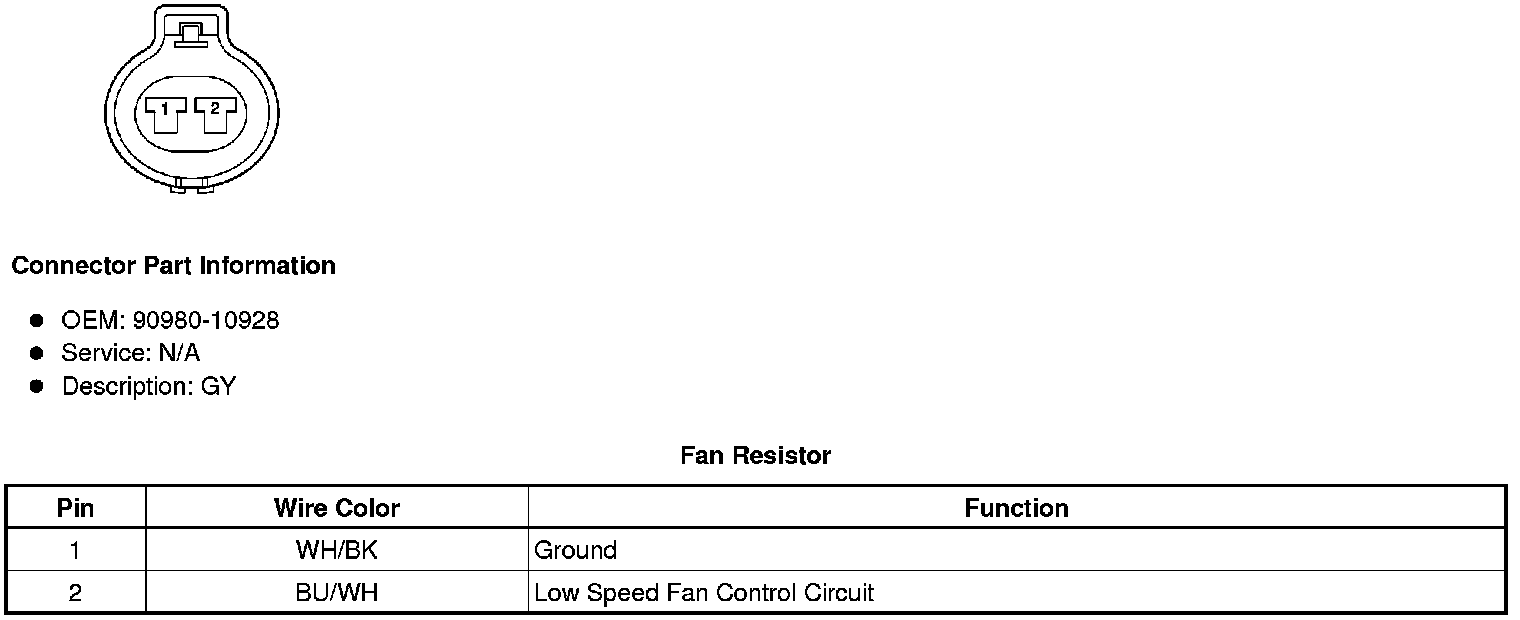

Fan Resistor

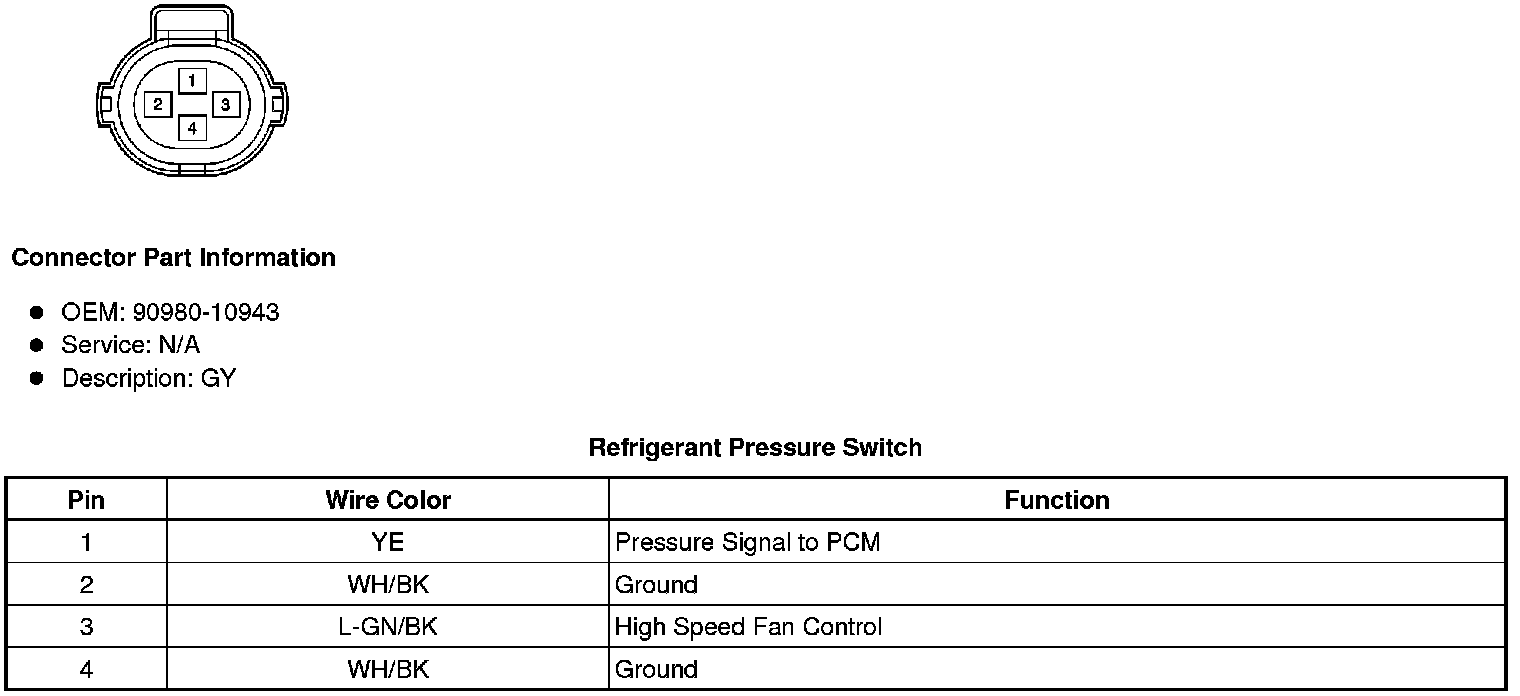

Refrigerant Pressure Switch
