Overdrive Switch, A/T

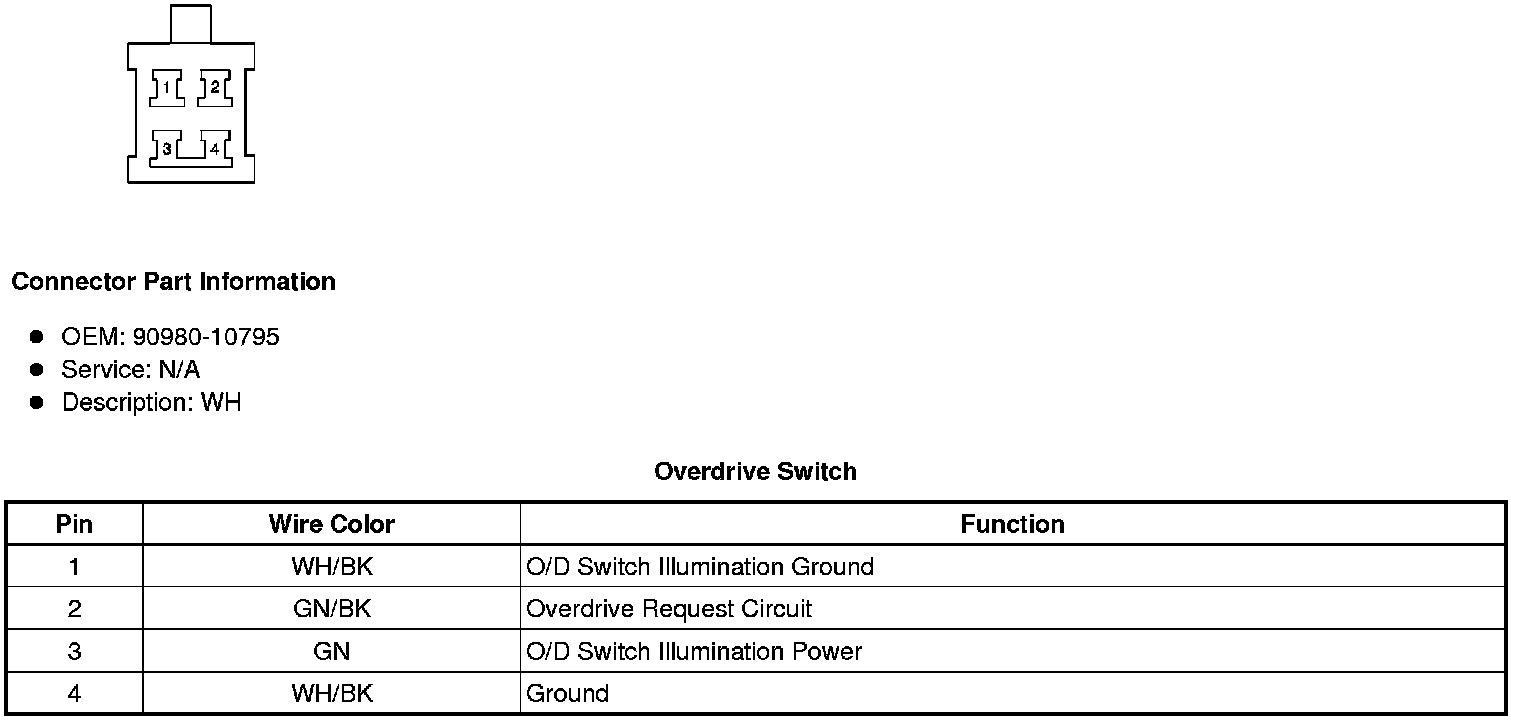

Automatic Transmission External Component Connector End Views

Overdrive Switch
