Wheel Speed Sensor



Antilock Brake System Connector End Views

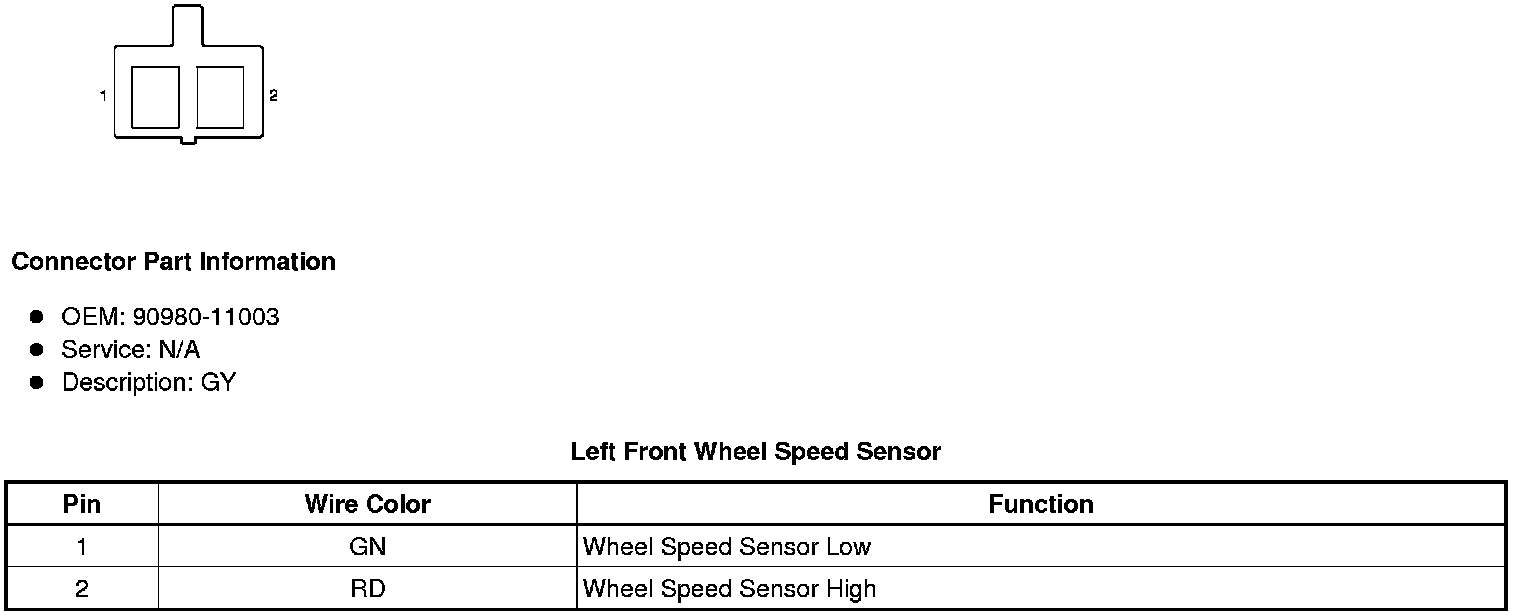

Left Front Wheel Speed Sensor

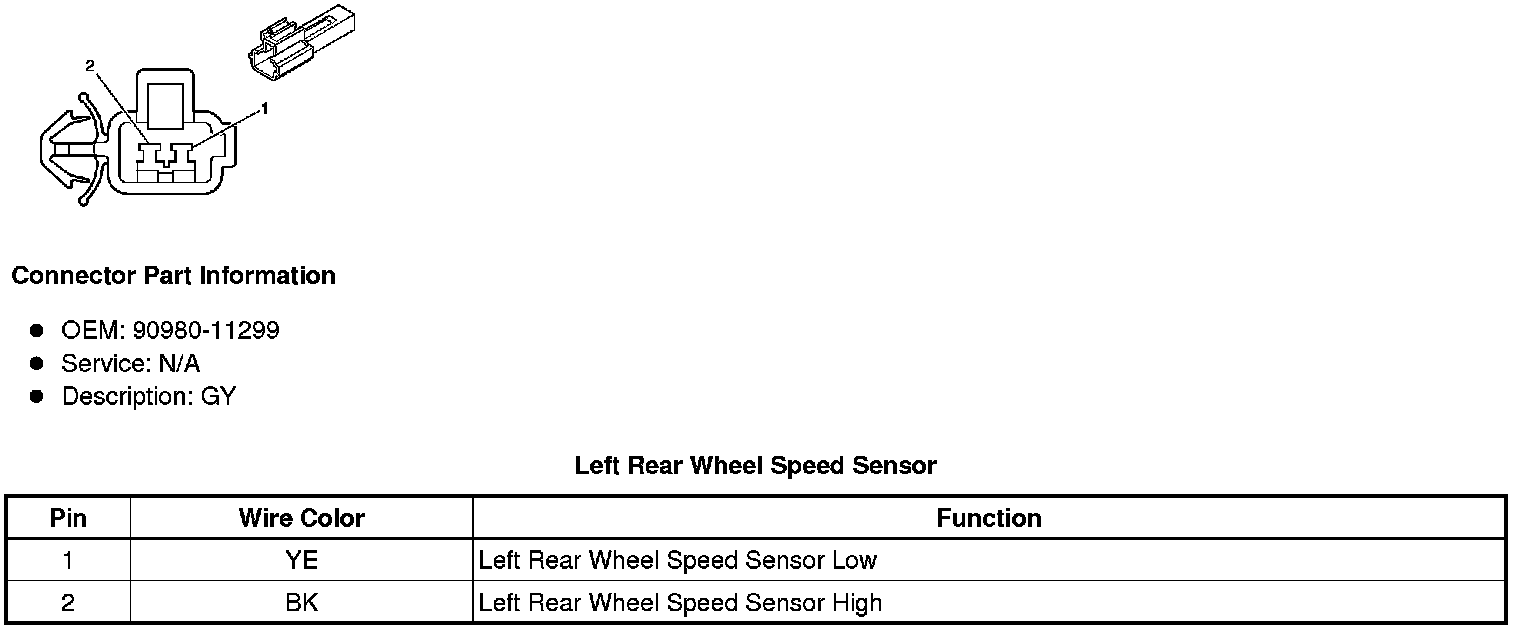

Left Rear Wheel Speed Sensor

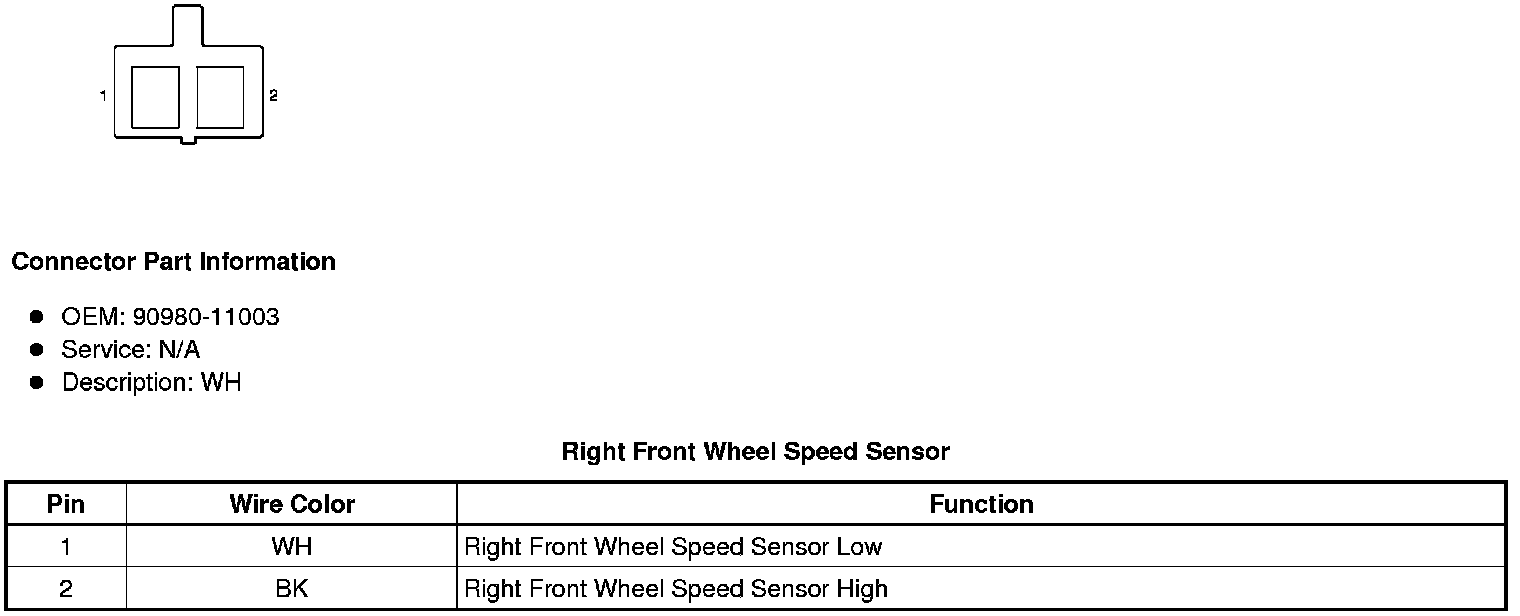

Right Front Wheel Speed Sensor

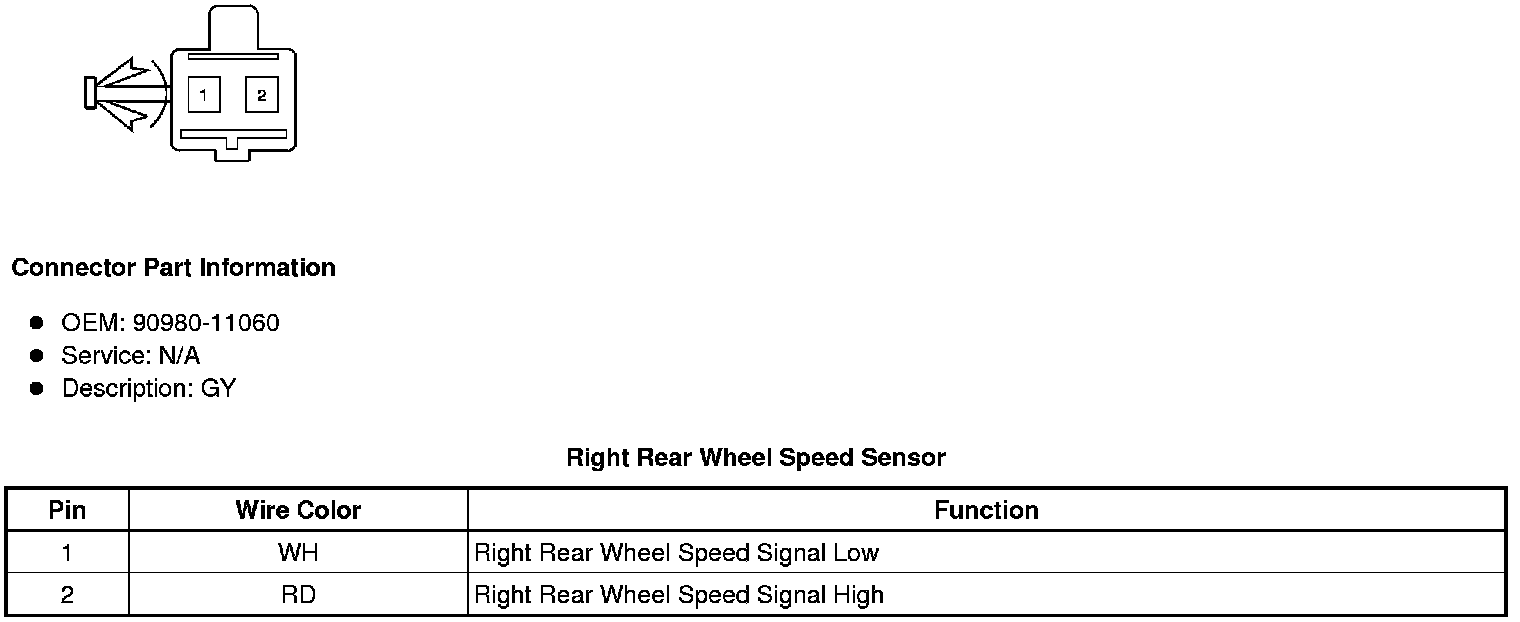

Right Rear Wheel Speed Sensor
