Impact Sensor



SIR Connector End Views

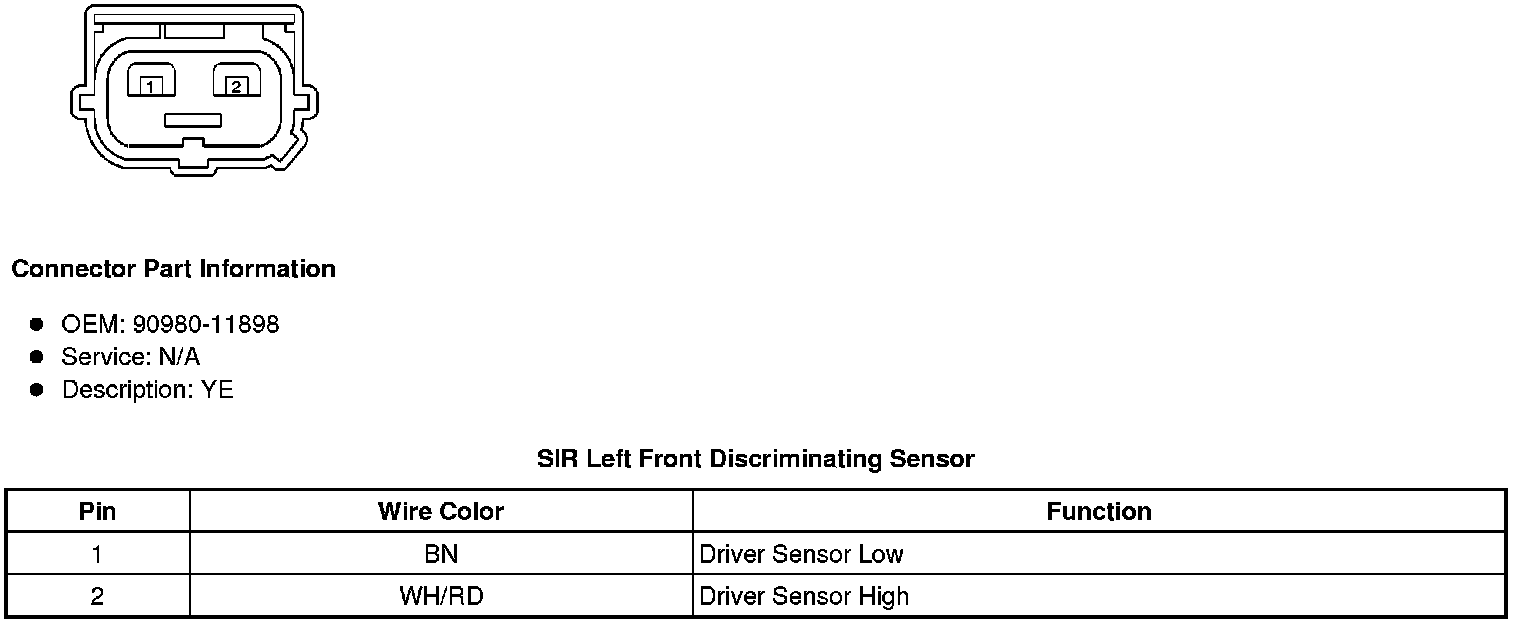

SIR Left Front Discriminating Sensor

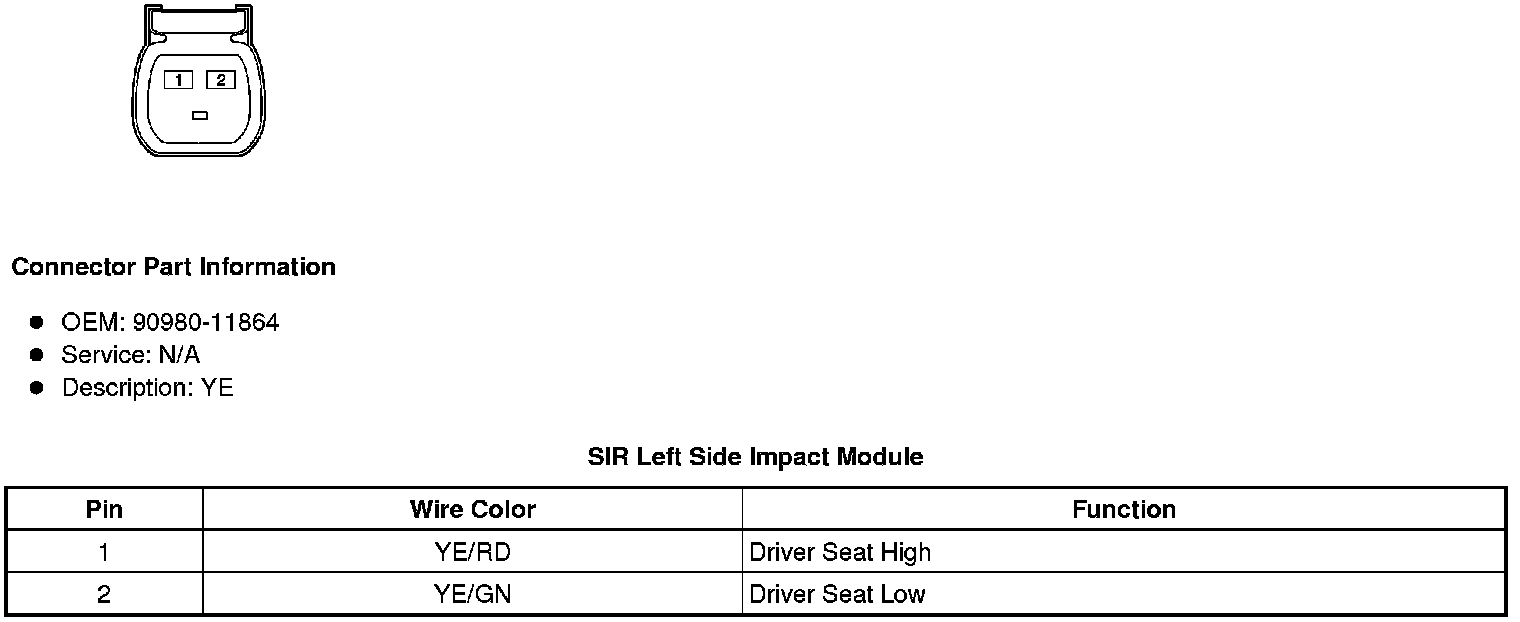

SIR Left Side Impact Module

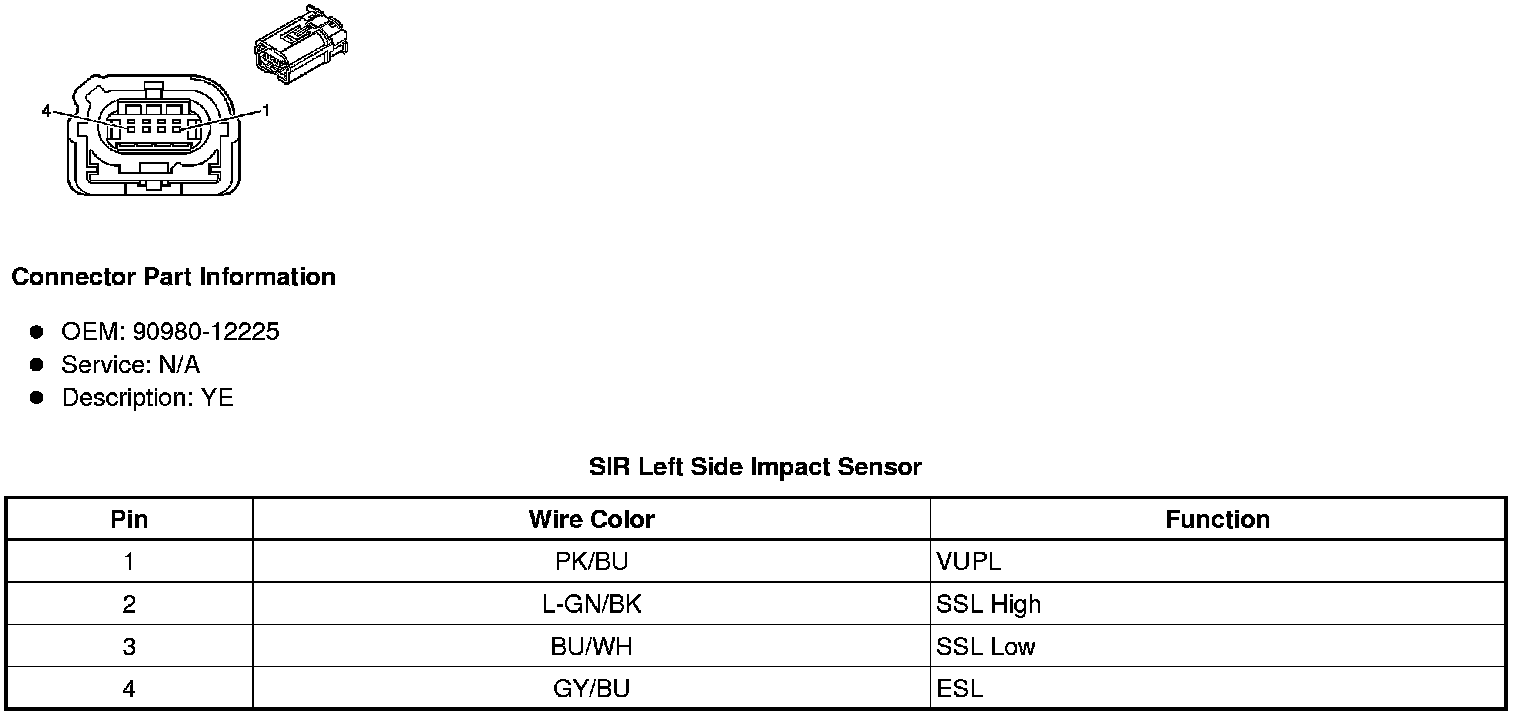

SIR Left Side Impact Sensor

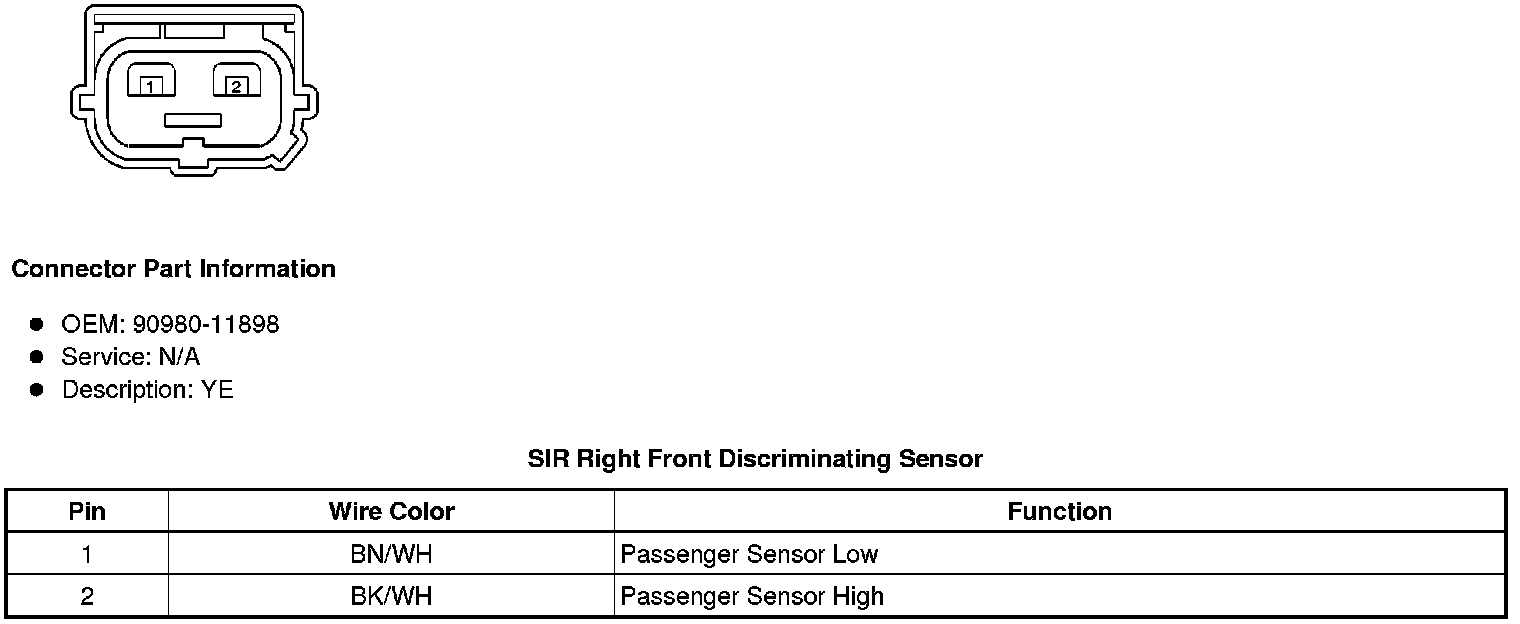

SIR Right Front Discriminating Sensor

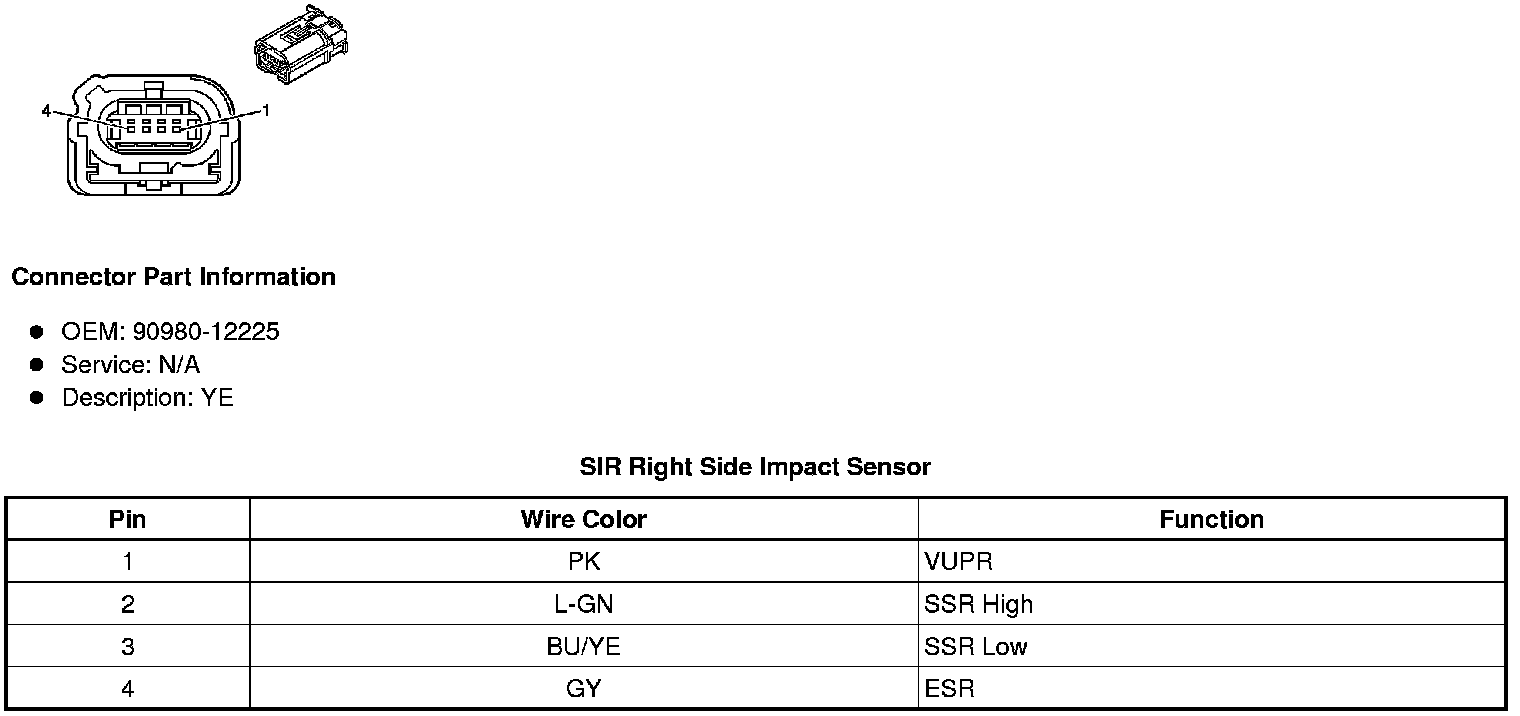

SIR Right Side Impact Sensor
