Clockspring Assembly / Spiral Cable, Air Bag



SIR Connector End Views

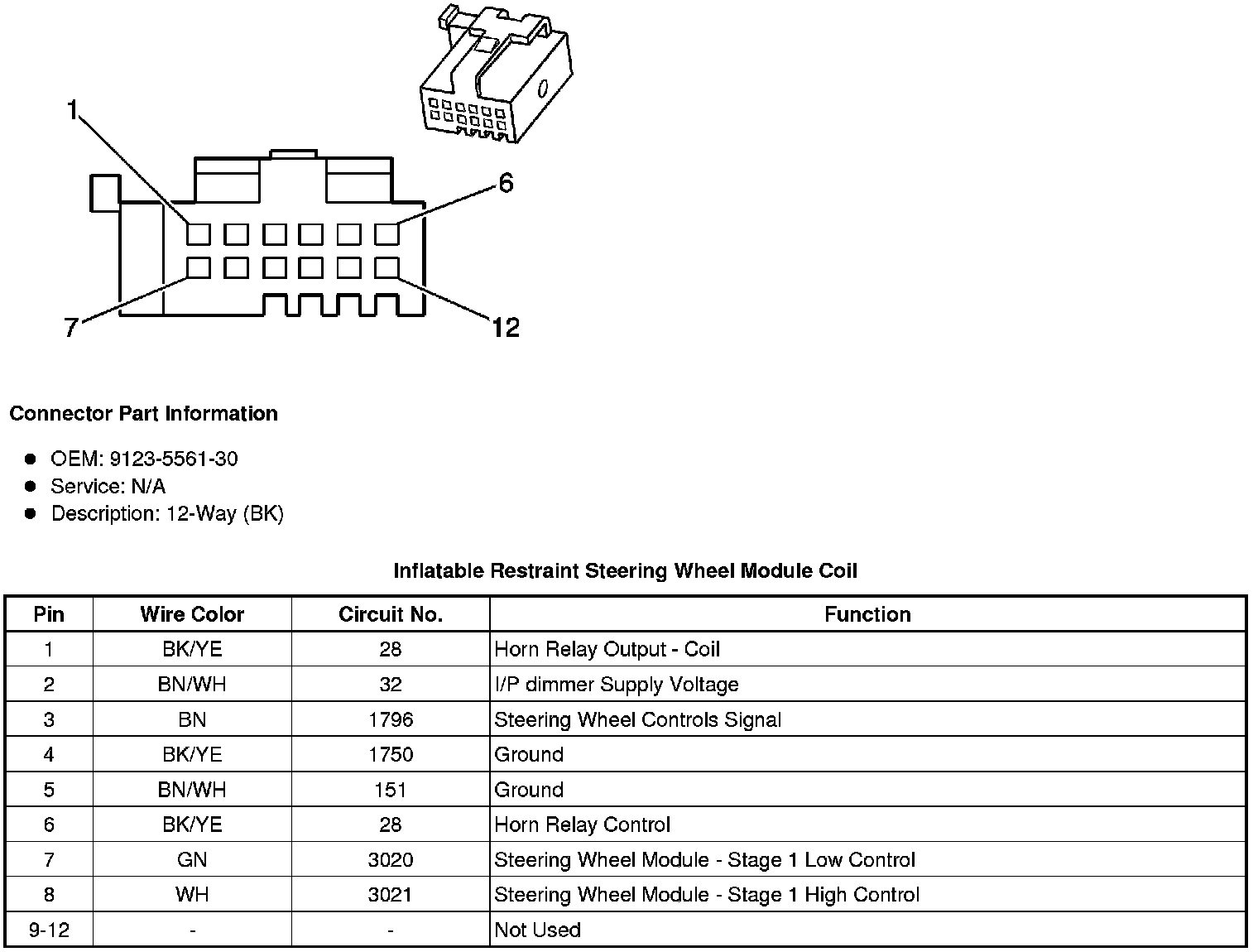

Inflatable Restraint Steering Wheel Module Coil
