Accessories and Optional Equipment
>>
Compact Disc Player (CD)
Compact Disc Player (CD)
Entertainment/Communication Connector End Views

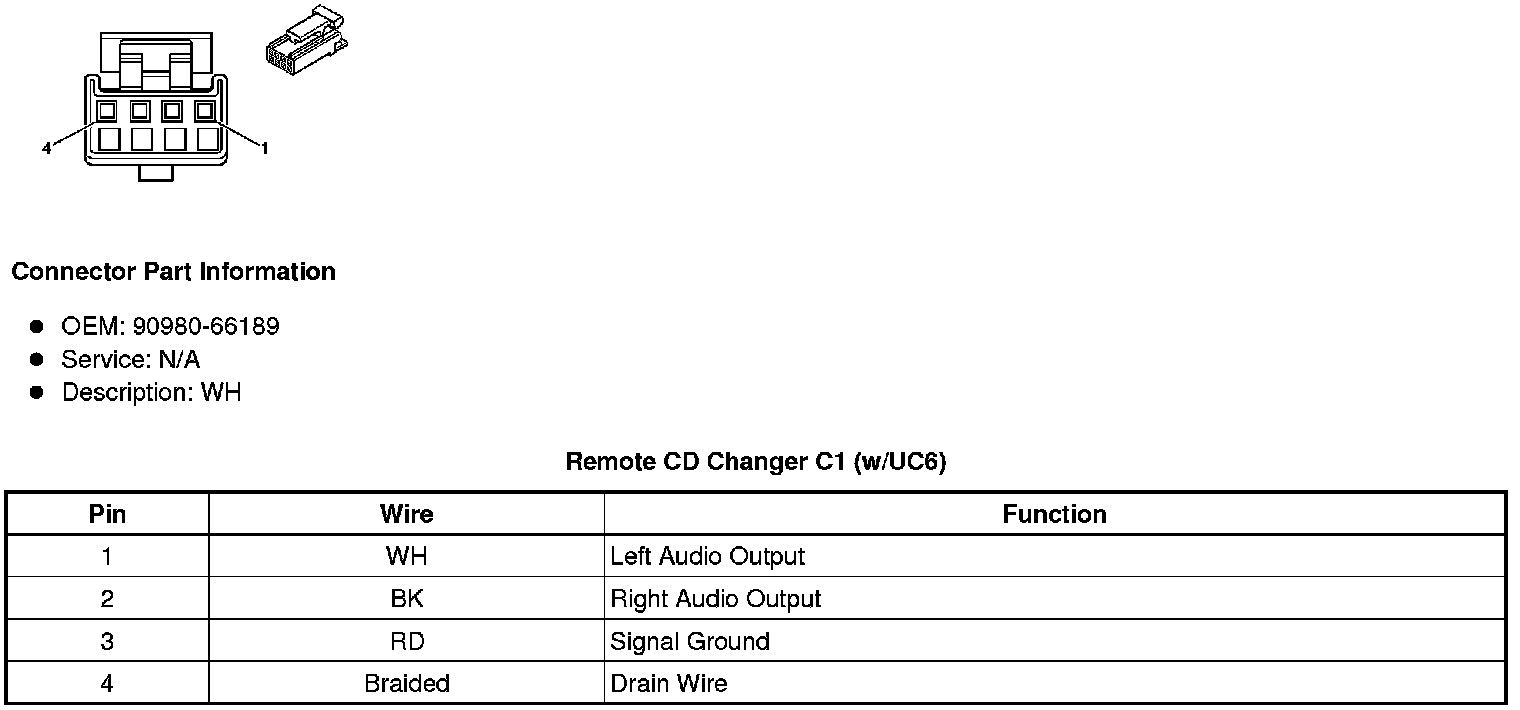

Remote
CD Changer
C1 (w/UC6)

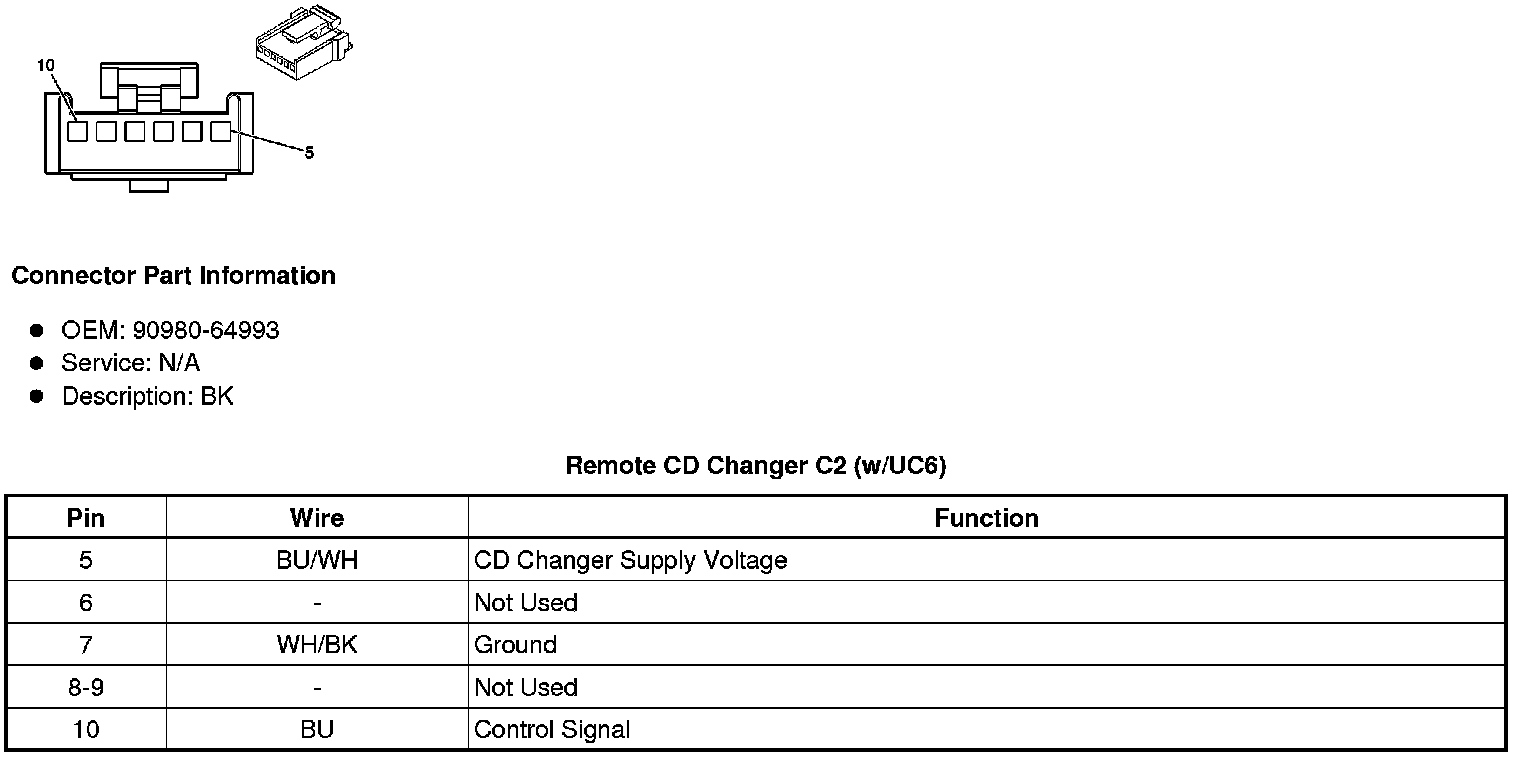

Remote
CD Changer
C2 (w/UC6)
