System Diagram



Entertainment/Communication Connector End Views

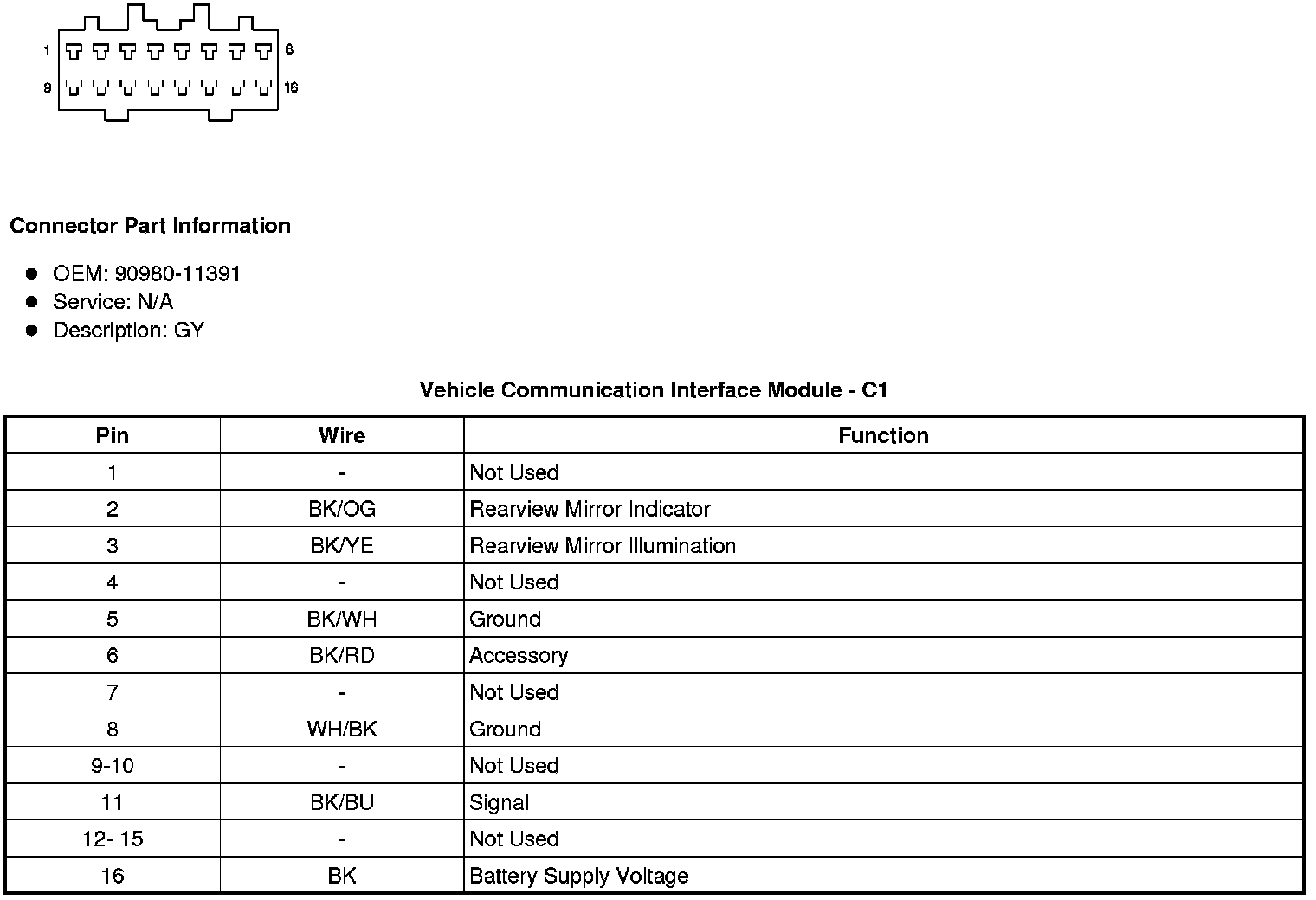

Vehicle Communication Interface Module - C1

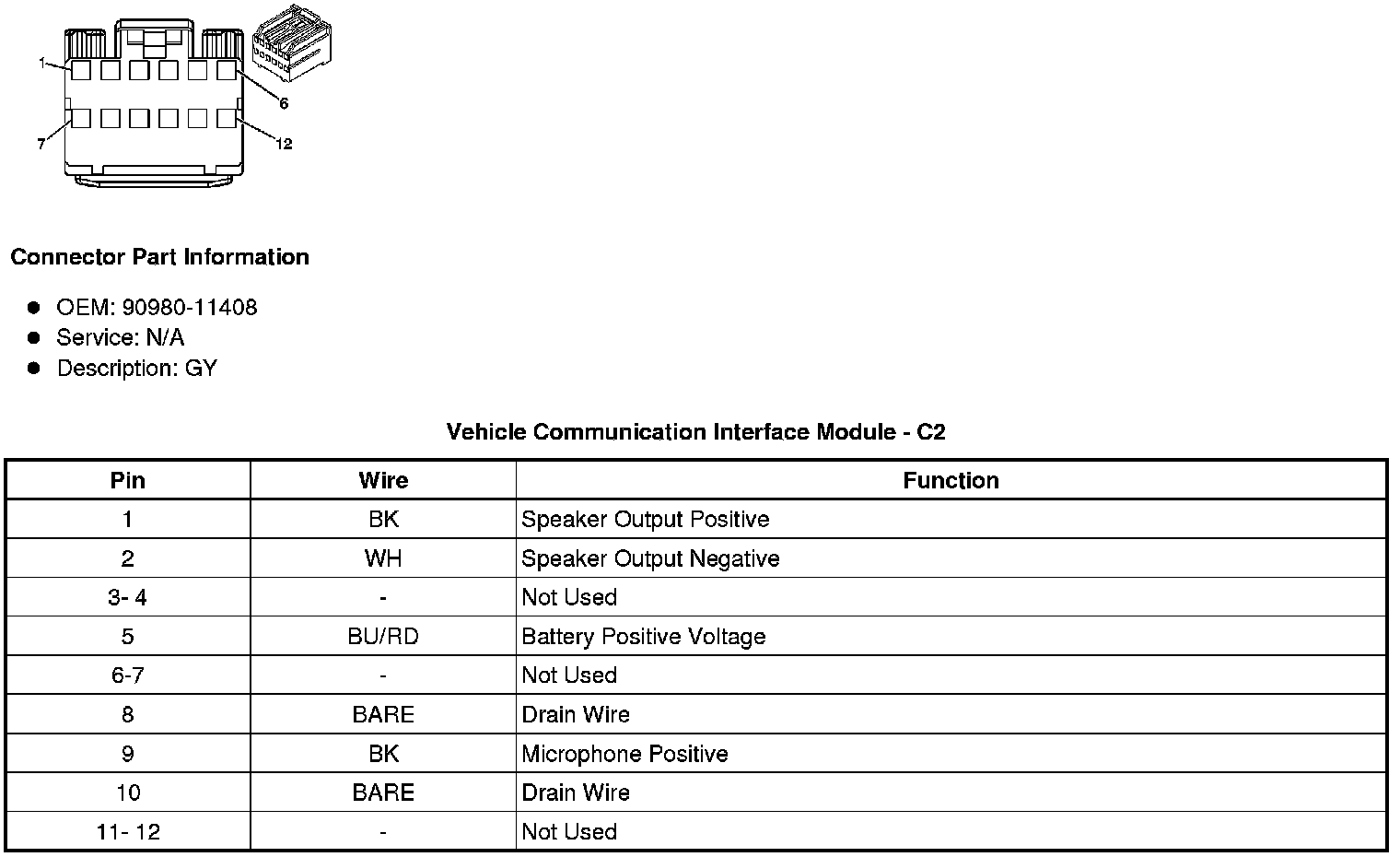

Vehicle Communication Interface Module - C2

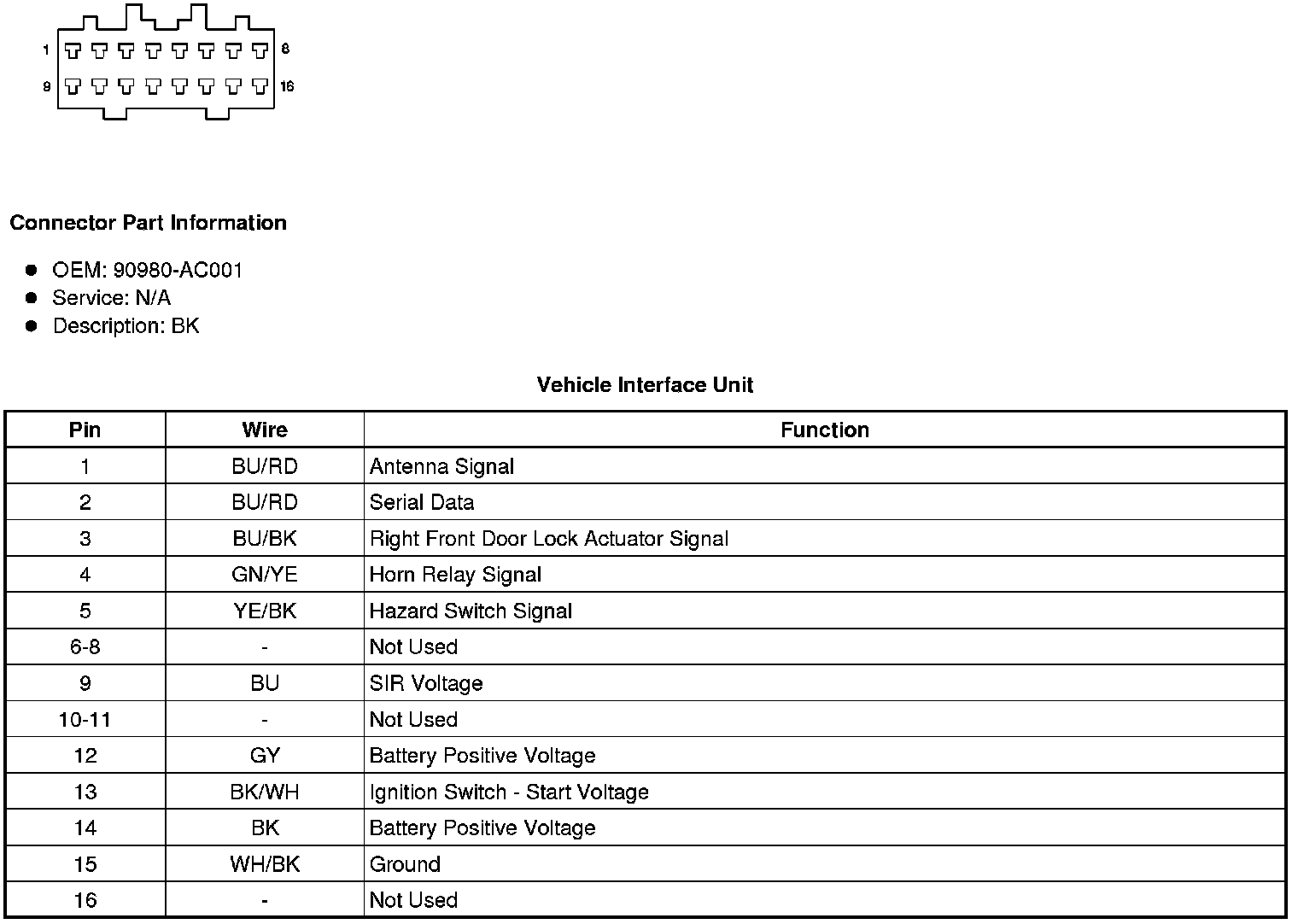

Vehicle Interface Unit
