Front Brake Caliper Bracket Replacement

Front Brake Caliper Bracket Replacement

Removal Procedure

1. Remove the disc brake hardware and the slide pin boots. Refer to Front Disc Brake Hardware Replacement (Front Disc Brake Hardware Replacement).

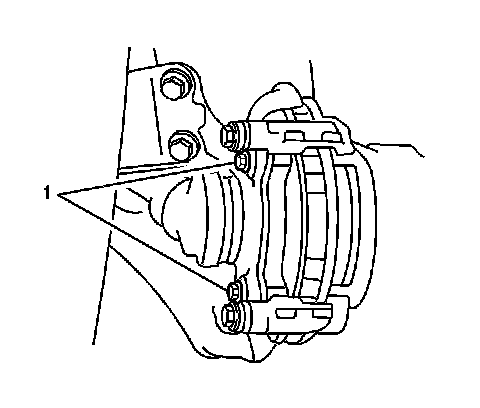

2. Remove the 2 bolts (1).
3. Remove the bracket.



Installation Procedure






Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the bracket and the 2 bolts (1).

Tighten the bolts to 106.8 N.m (78.77 lb ft).

2. Install the disc brake hardware and the slide pin boots. Refer to Front Disc Brake Hardware Replacement (Front Disc Brake Hardware Replacement).
