Connector Views
Antilock Brake System Connector End Views

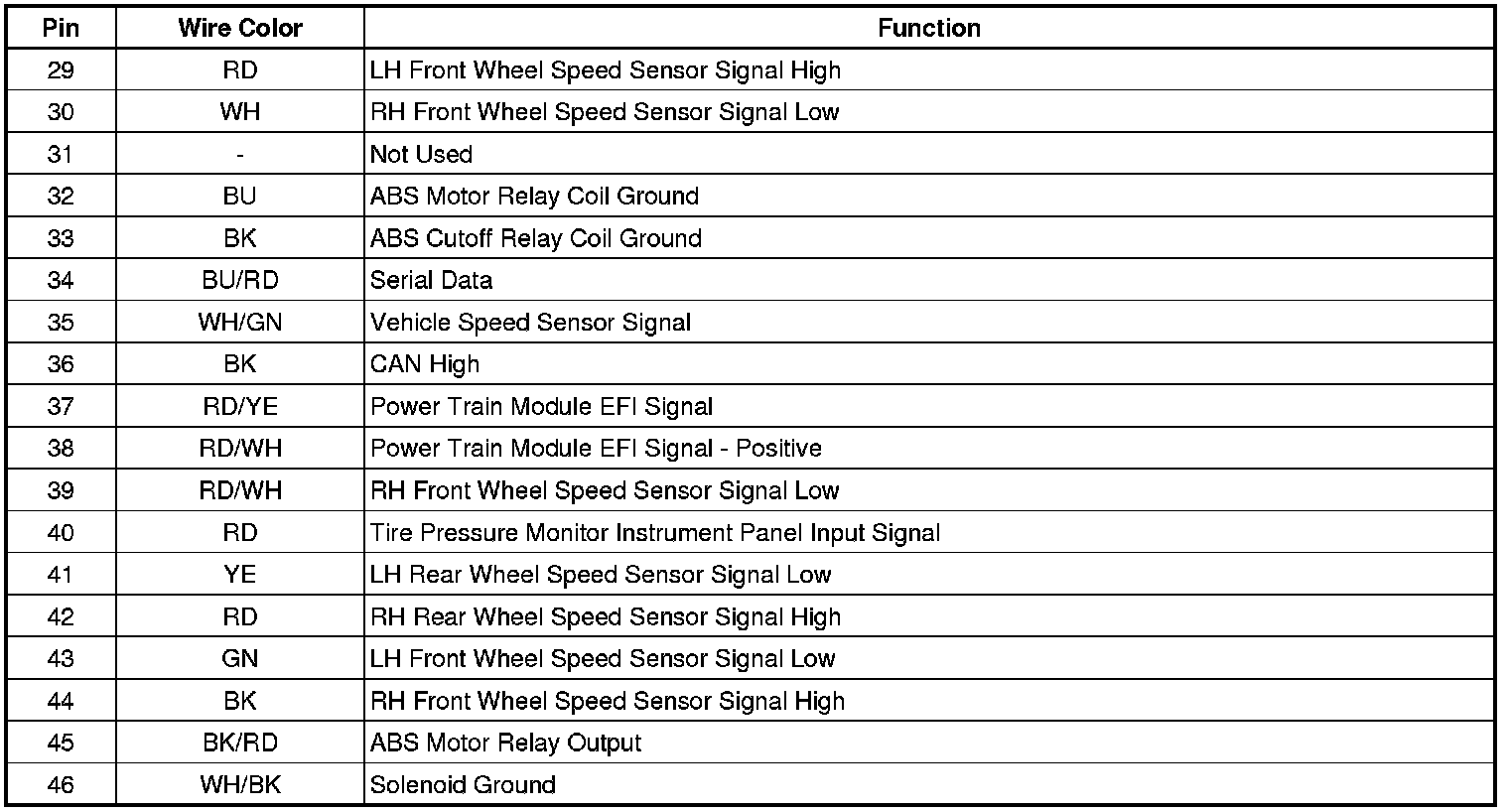

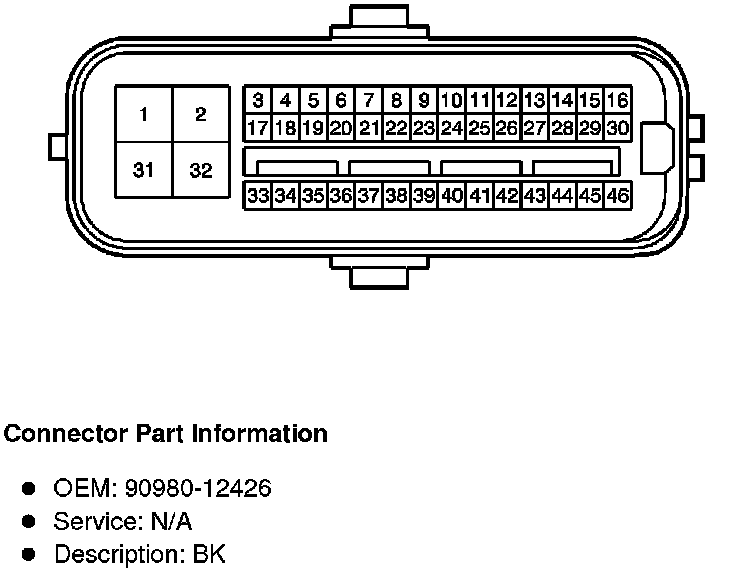

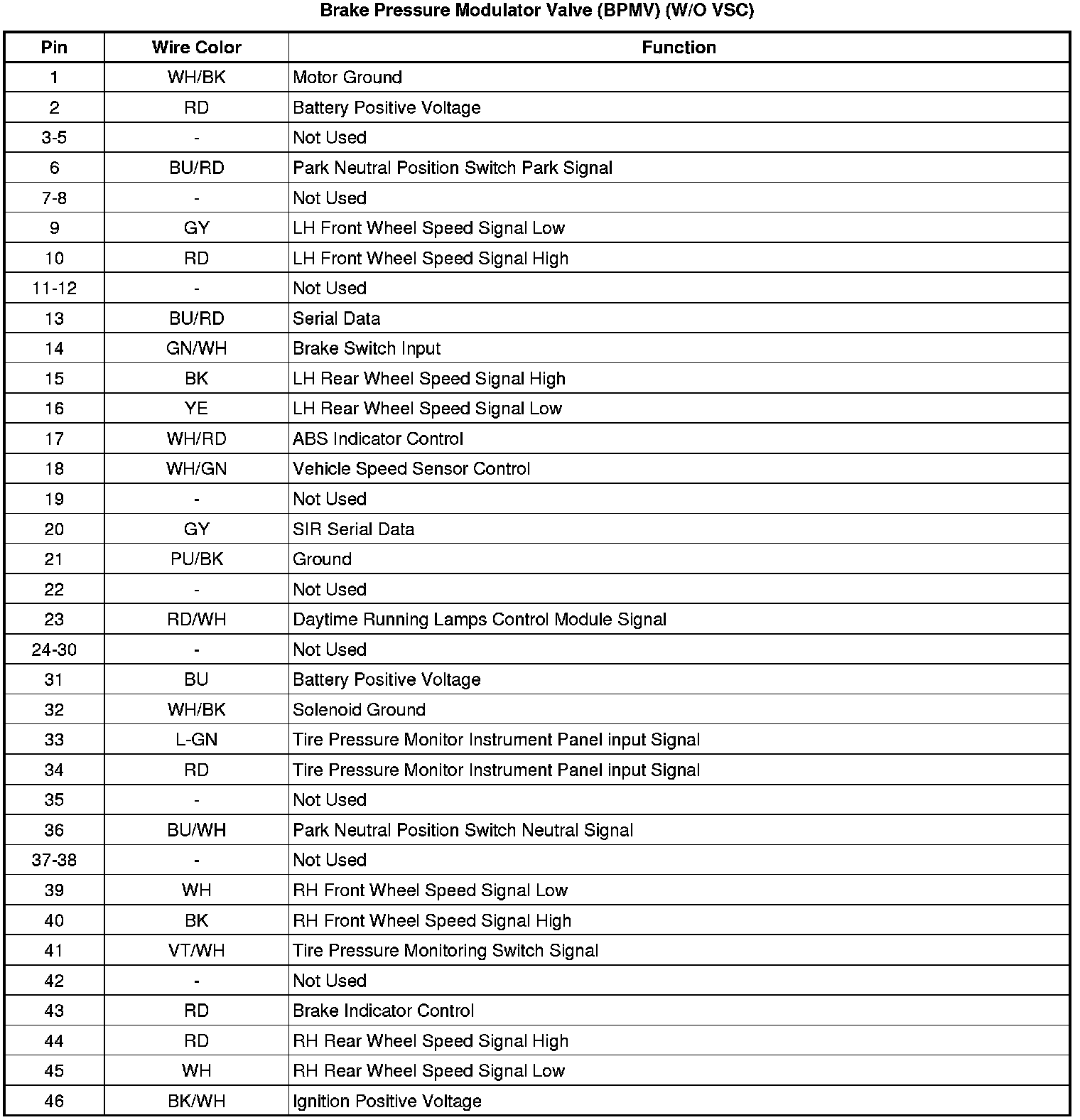

Brake Pressure Modulator Valve (BPMV) (W/O VSC)

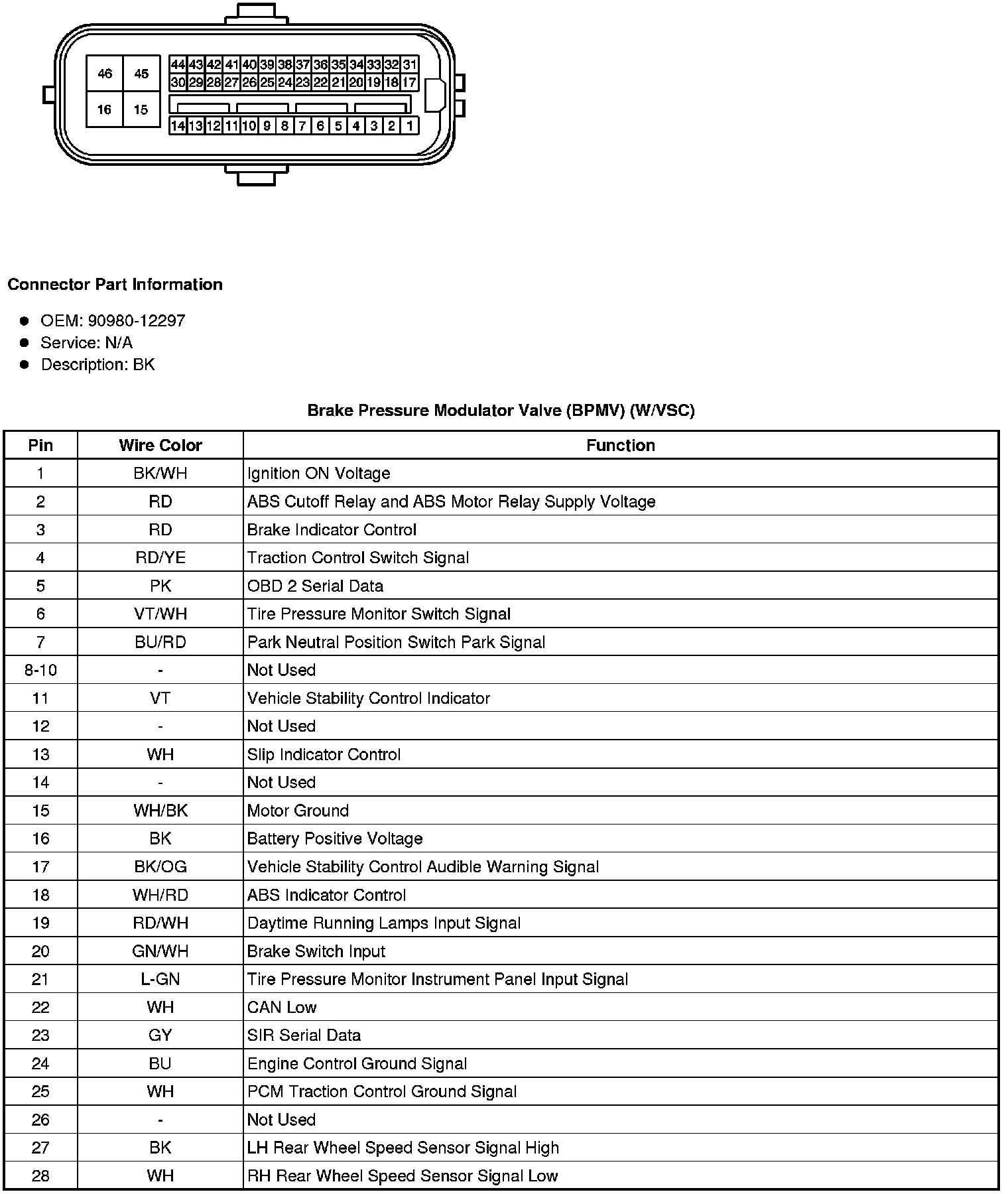

Brake Pressure Modulator Valve (BPMV) (W/VSC)
Left Front Wheel Speed Sensor
Left Rear Wheel Speed Sensor
Right Front Wheel Speed Sensor
Right Rear Wheel Speed Sensor

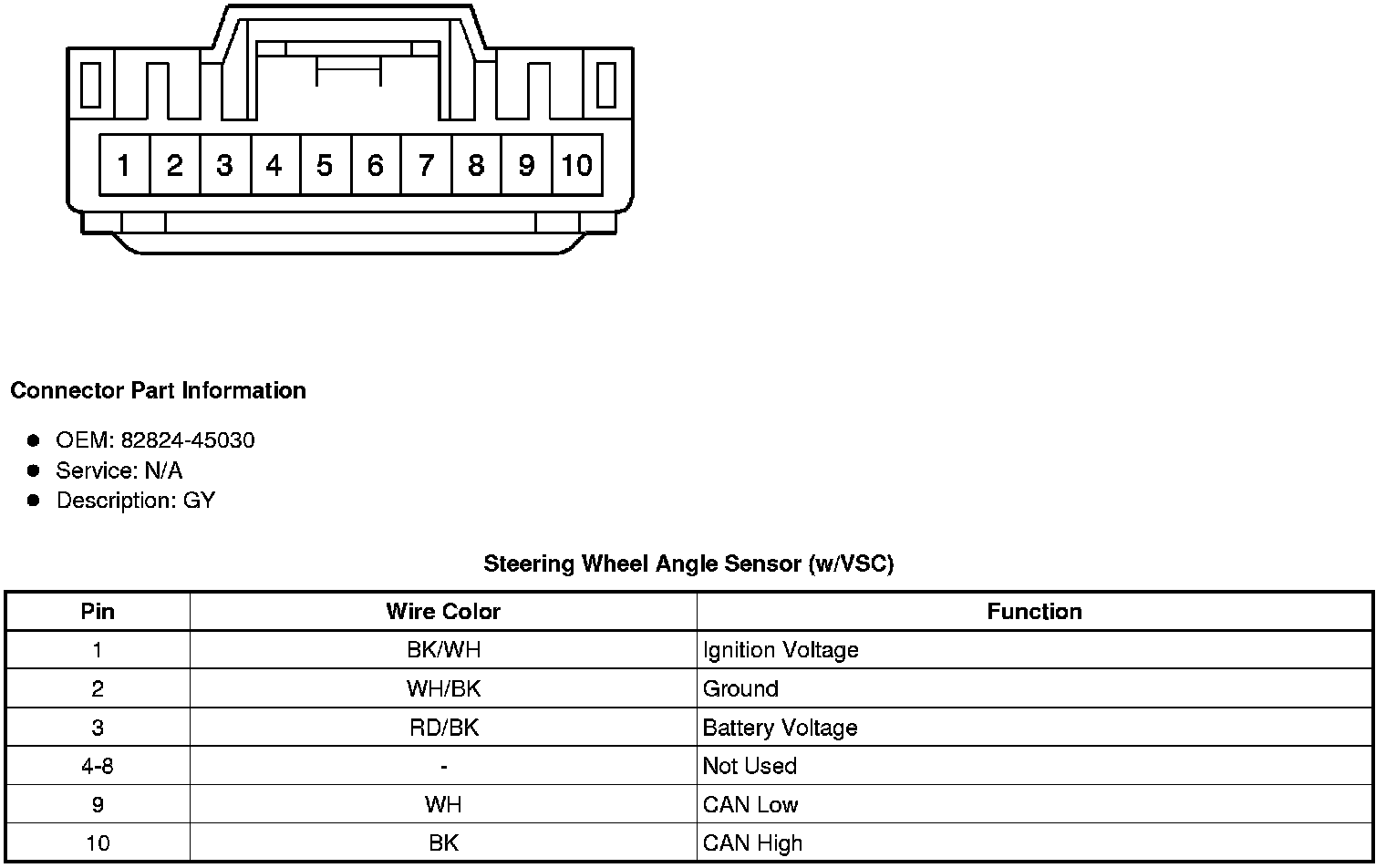

Steering Wheel Angle Sensor (w/VSC)

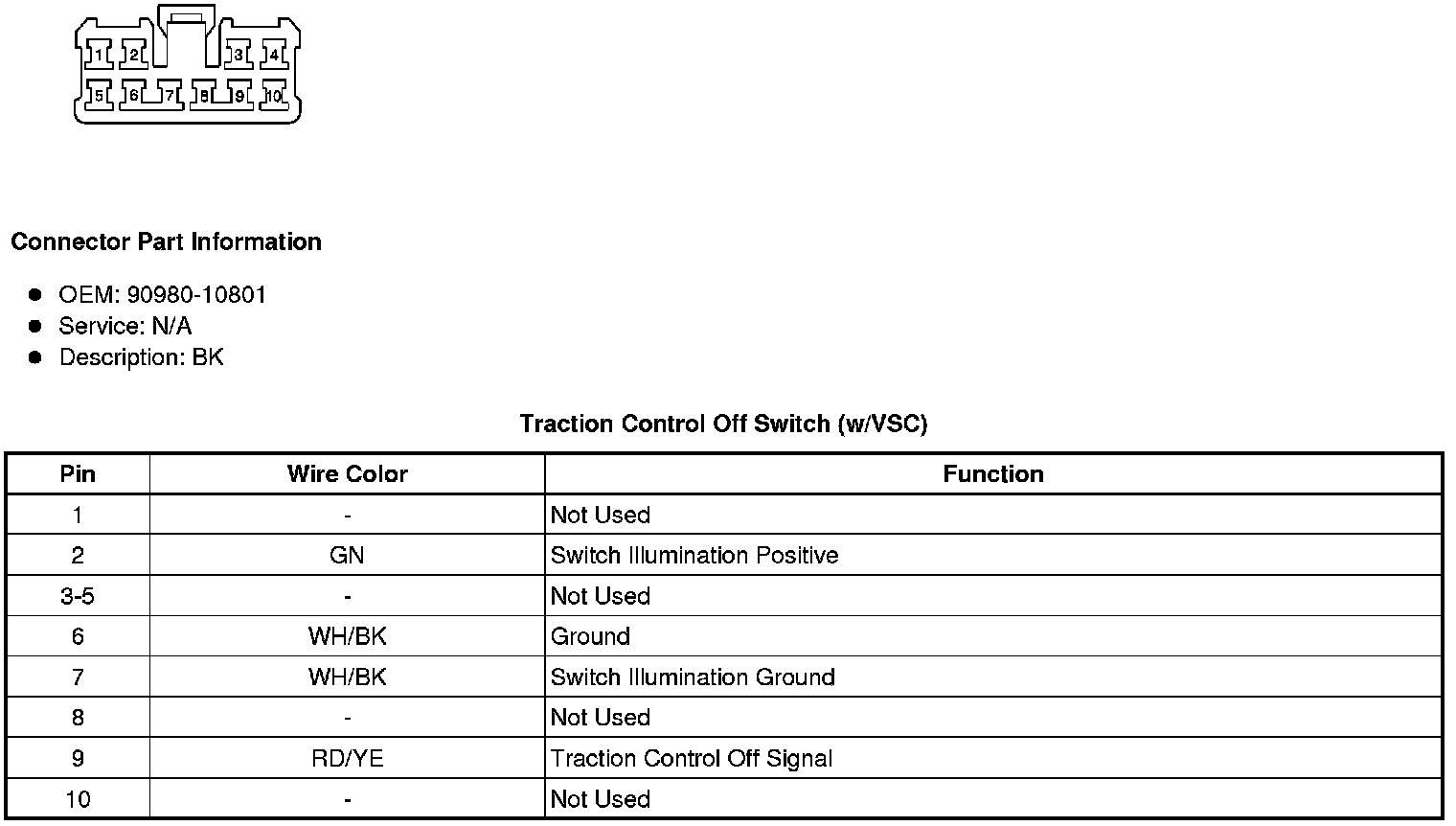

Traction Control Off Switch (w/VSC)

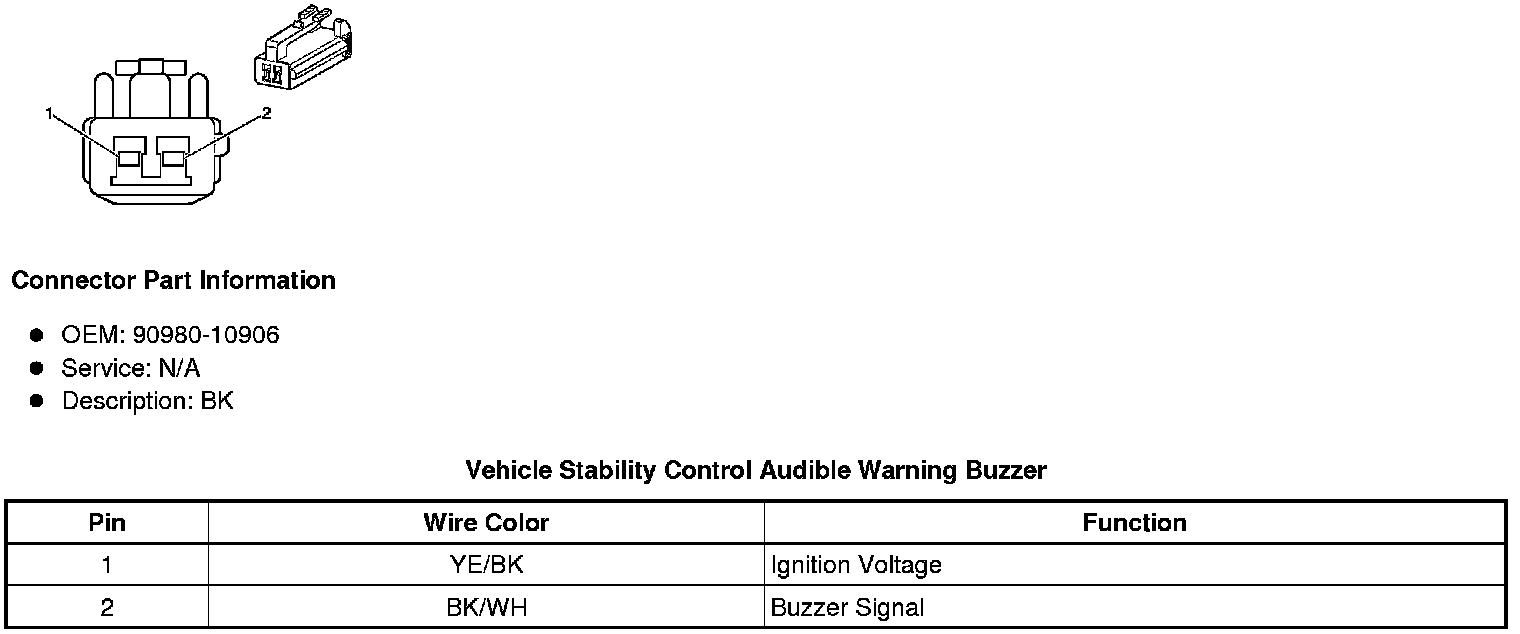

Vehicle Stability Control Audible Warning Buzzer

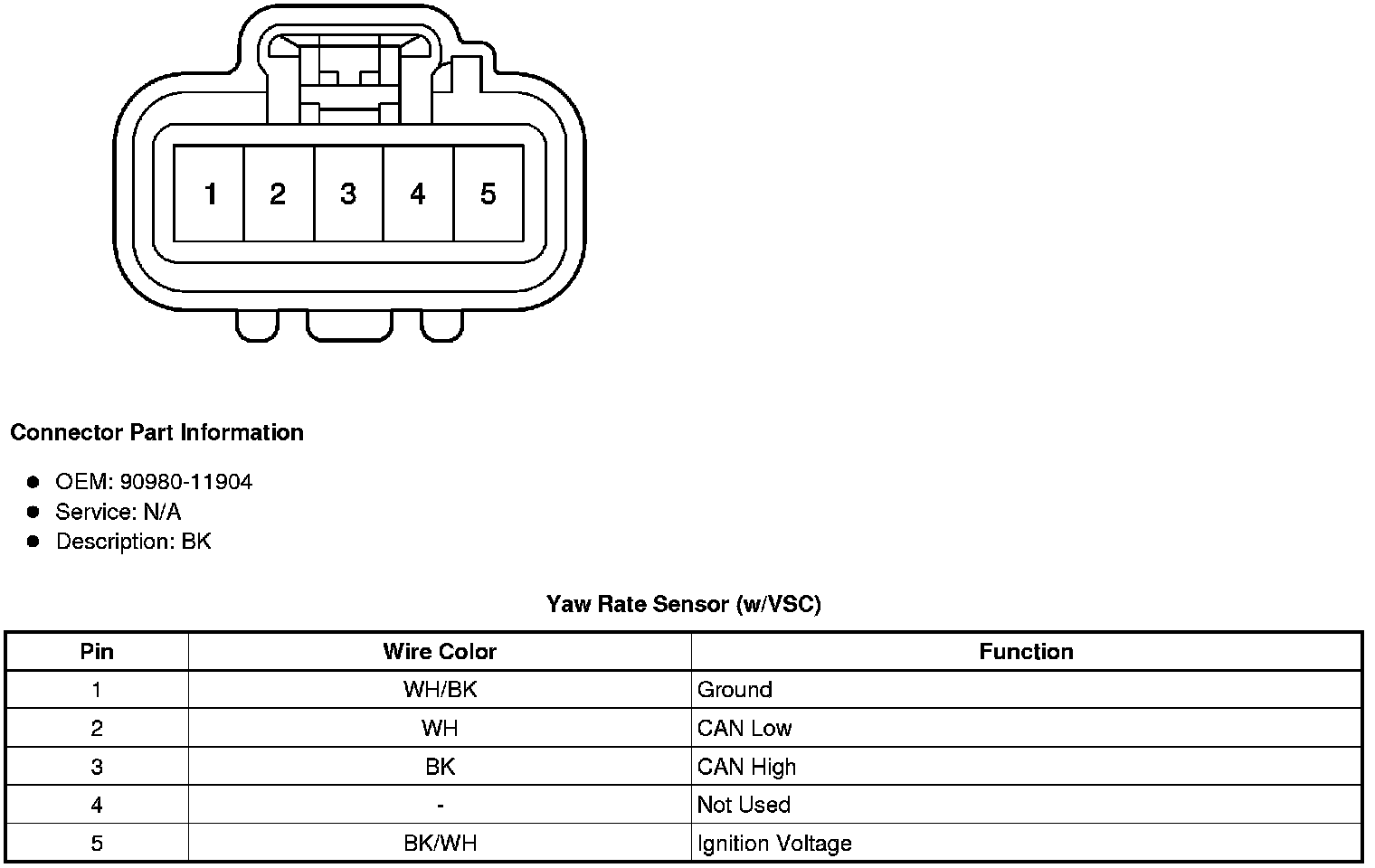

Yaw Rate Sensor (w/VSC)
