Sunroof / Moonroof Windguard: Service and Repair

Sunroof Air Deflector Replacement

Removal Procedure





1. Open the sunroof window.
2. Remove the following components from the sunroof housing:

* The 2 screws

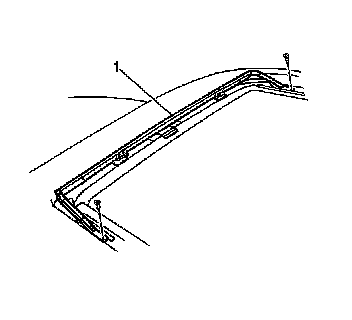

* The sunroof air deflector (1)




Installation Procedure





1. Install the sunroof air deflector (1) to the sunroof housing. Secure the deflector with the 2 screws.
2. Close the sunroof window.
