Sunroof Housing Front Drain Hose Replacement

Sunroof Housing Front Drain Hose Replacement

Removal Procedure





1. Remove the headlining trim finish panel. Refer to Headlining Trim Panel Replacement (Service and Repair).
2. Remove the sunroof housing front drain hose clamp.
3. Remove the sunroof housing front drain hose (2) from the sunroof housing (1).
4. Remove the sunroof housing front drain hose (2) from the vehicle, by pulling the hose up through the body hinge pillar panel (3).




5. Remove the body hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement (Service and Repair).

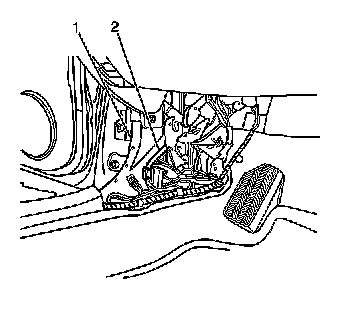

6. Remove the connector cavity (2) from the lower portion of the body hinge pillar panel (1).



Installation Procedure





1. Install the sunroof housing front drain hose (2) to the vehicle, by routing the hose down through the body hinge pillar panel (3).




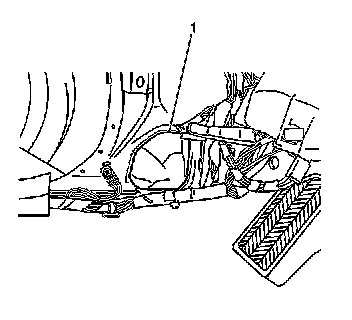

2. Make sure that the drain hose is in the correctly seated position in the lower portion of the body hinge pillar panel by positioning the hose through the access hole (1).




3. Install the connector cavity (2) to the lower portion of the body hinge pillar panel (1).




4. Install the body hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement (Service and Repair).
5. Install the sunroof housing front drain hose (2) to the sunroof housing (1). Secure the drain hose with the clamp.
6. Install the headlining trim finish panel. Refer to Headlining Trim Panel Replacement (Service and Repair).
