Luggage Carrier Cross Rail Replacement

Luggage Carrier Cross Rail Replacement

Removal Procedure

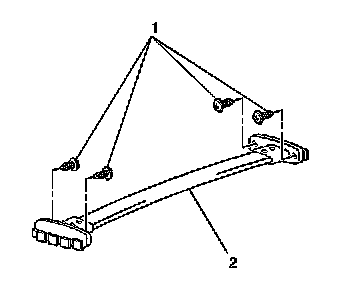

1. Remove the 4 bolts (1) from the crossrails (2).
2. Slide off and remove the luggage carrier crossrails (2) from the luggage carrier side rails.



Installation Procedure





1. Install the luggage carrier crossrails (2) to the luggage carrier side rails.
2. Install the 4 bolts (1) to the crossrails (2).
