Connector Views



Mirror Connector End Views

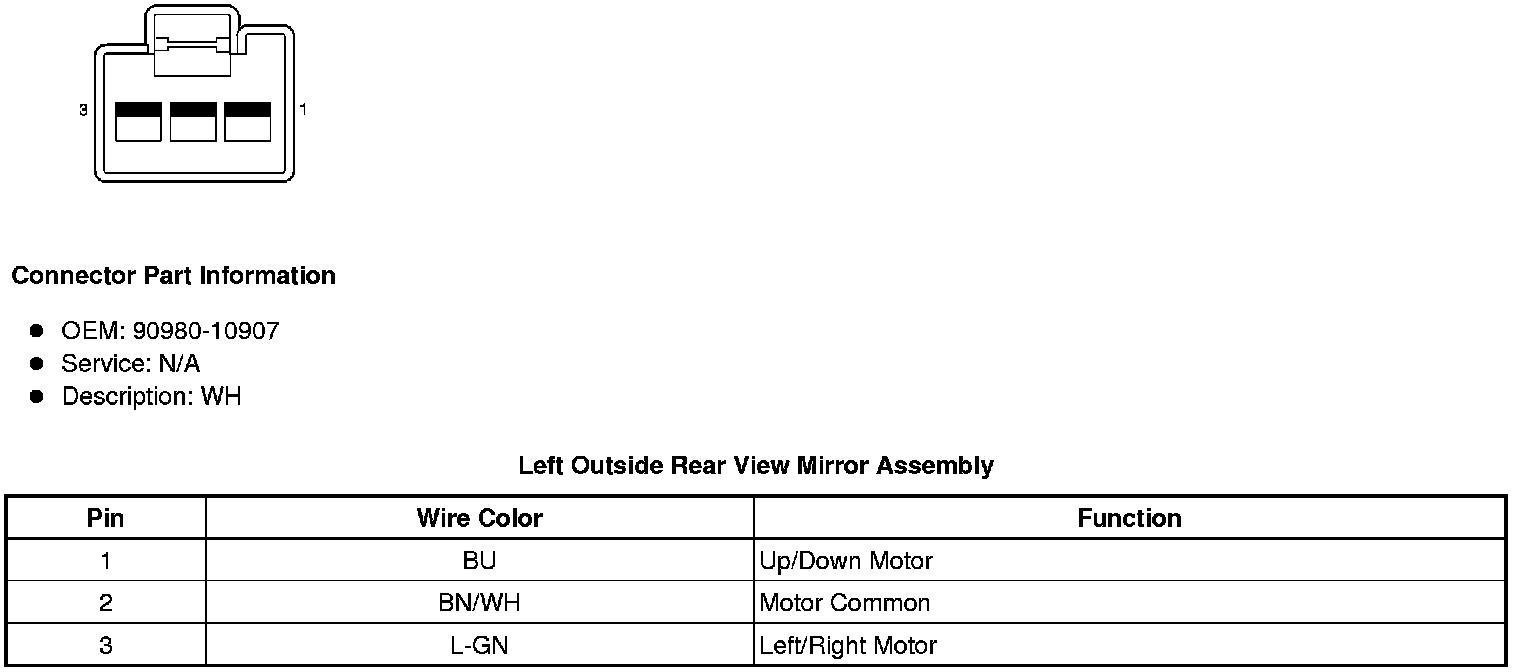

Left Outside Rear View Mirror Assembly






Power Mirror Switch

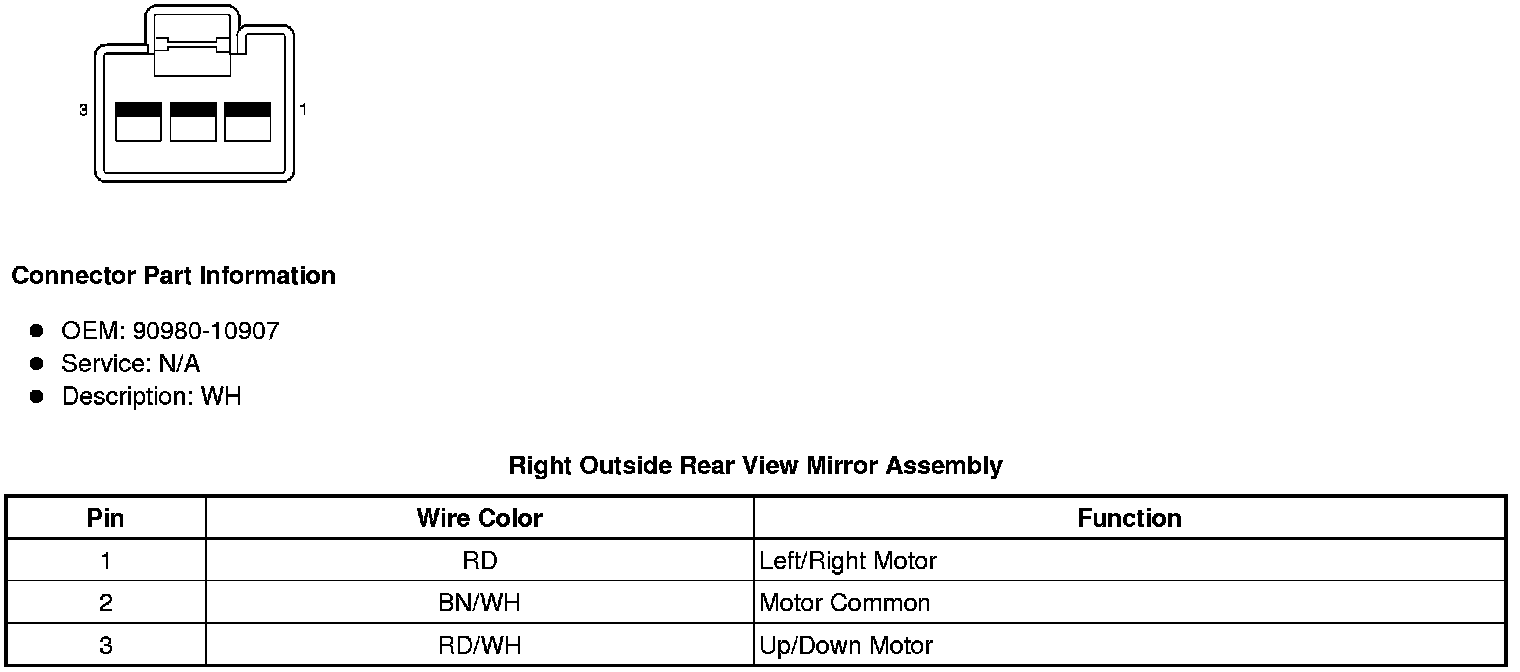

Right Outside Rear View Mirror Assembly
