Foot Rest Replacement

Foot Rest Replacement

Removal Procedure

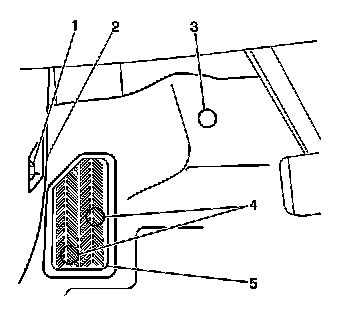

1. Unfasten the 2 plastic retainers (4) which secure the foot rest to the floor panel.
2. Remove the foot rest (5) from the vehicle.



Installation Procedure





Install the foot rest (5) to the floor panel studs. Secure the foot rest, by fastening the 2 plastic retainers (4).
